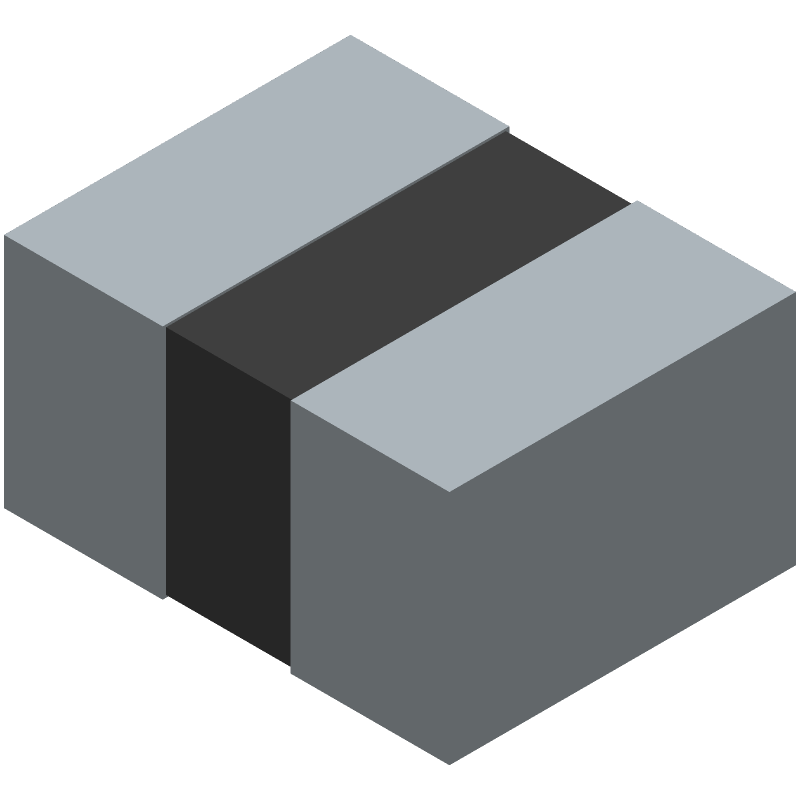

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VCAS121060J121DP by Kyocera AVX Components
Results Overview of VCAS121060J121DP by Kyocera AVX Components
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
VCAS121060J121DP Information
VCAS121060J121DP by Kyocera AVX Components is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for VCAS121060J121DP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
96AJ2653
|
Newark | Varistor, 60V, 1.5J, Surface Mount Rohs Compliant: Yes |Kyocera Avx VCAS121060J121DP RoHS: Compliant Min Qty: 150 Package Multiple: 1 Date Code: 0 Container: Bulk | 1200 |
|
$0.5530 / $0.6400 | Buy Now |
|
DISTI #
2266-VCAS121060J121DP-ND
|
DigiKey | VARISTOR 76V 250A 1210 Min Qty: 1 Lead time: 15 Weeks Container: Bulk MARKETPLACE PRODUCT |
1200 In Stock |
|
$0.6400 / $0.6600 | Buy Now |
|
DISTI #
478-8698-1-ND
|
DigiKey | VARISTOR 76V 250A 1210 Min Qty: 1 Lead time: 15 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.3575 / $1.6400 | Buy Now |
|
DISTI #
VCAS121060J121DP
|
Avnet Americas | Var 42VAC 60VDC 250A 76V 1210 SMD T/R - Tape and Reel (Alt: VCAS121060J121DP) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Reel | 0 |
|
$0.3389 / $0.4555 | Buy Now |
|
DISTI #
VCAS121060J121DP
|
Avnet Americas | Var 42VAC 60VDC 250A 76V 1210 SMD T/R - Tape and Reel (Alt: VCAS121060J121DP) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.3403 / $0.3632 | Buy Now |
|
DISTI #
581-VCAS121060J121DP
|
Mouser Electronics | Varistors 42VAC 60VDC 1.5J 400 pF 76 V 120V RoHS: Compliant | 1565 |
|
$0.3570 / $1.6800 | Buy Now |
|
|
Onlinecomponents.com | Varistor, Auto, 60V, 120V, 1210 RoHS: Compliant |
1200 Partner Stock |
|
$0.5490 / $0.7490 | Buy Now |
|
DISTI #
VCAS121060J121DP
|
TTI | Varistors 42VAC 60VDC 1.5J 400 pF 76 V 120V RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.4770 / $0.6690 | Buy Now |
|
DISTI #
VCAS121060J121DP
|
Avnet Abacus | Var 42VAC 60VDC 250A 76V 1210 SMD TR (Alt: VCAS121060J121DP) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for VCAS121060J121DP
VCAS121060J121DP CAD Models
VCAS121060J121DP Part Data Attributes
|
|
VCAS121060J121DP
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
VCAS121060J121DP
Kyocera AVX Components
Varistor
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.40.00 | |
| Factory Lead Time | 15 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Circuit RMS Voltage-Max | 42 V | |
| Energy Absorbing Capacity-Max | 1.5 J | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 1.7 mm | |
| Package Length | 3.2 mm | |
| Package Style | SMT | |
| Package Width | 2.49 mm | |
| Packing Method | TR, 7 INCH | |
| Rated Power Dissipation (P) | 0.03 W | |
| Reference Standard | AEC-Q200 | |
| Resistor Type | VARISTOR | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Working Voltage | 60 V |
VCAS121060J121DP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature profile for the VCAS121060J121DP is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
-
Yes, the VCAS121060J121DP is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 10G peak acceleration, and a vibration amplitude of 1.5 mm.
-
The VCAS121060J121DP has a moisture sensitivity level (MSL) of 3, which means it can withstand a maximum of 168 hours in a humid environment with a relative humidity of 85% and a temperature of 85°C.
-
The ESR of the VCAS121060J121DP is typically around 0.015 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
-
Yes, the VCAS121060J121DP is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in EU-based applications.
