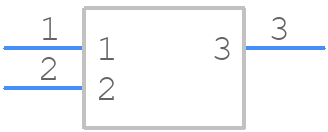

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VCAN26A2-03SHE3-18 by Vishay Intertechnologies
Results Overview of VCAN26A2-03SHE3-18 by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Internet of Things (IoT)
Smart Cities
Transportation and Logistics
Telecommunications
Communication and Networking
Automotive
VCAN26A2-03SHE3-18 Information
VCAN26A2-03SHE3-18 by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VCAN26A2-03SHE3-18
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55AC4270
|
Newark | Esd Protection Diode Sot23 |Vishay VCAN26A2-03SHE3-18 RoHS: Not Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0510 / $0.0700 | Buy Now |
|
DISTI #
VCAN26A2-03SHE3-18
|
Avnet Americas | ESD Suppressor Diode Arrays ?30kV 3-Pin SOT-23 T/R - Tape and Reel (Alt: VCAN26A2-03SHE3-18) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$0.0412 / $0.0446 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 78000 |
|
RFQ | |
|
DISTI #
VCAN26A2-03SHE3-18
|
EBV Elektronik | ESD Suppressor Diode Arrays 30kV 3Pin SOT23 TR (Alt: VCAN26A2-03SHE3-18) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 143 Weeks, 0 Days | EBV - 10000 |
|
Buy Now | |
|
|
Vyrian | Diodes | 9905 |
|
RFQ | |
|
|
Wuhan P&S | (BiSy) ESD Protection Diode Min Qty: 1 | 60000 |
|
$0.0510 / $0.2144 | Buy Now |
Part Details for VCAN26A2-03SHE3-18
VCAN26A2-03SHE3-18 CAD Models
VCAN26A2-03SHE3-18 Part Data Attributes
|
|
VCAN26A2-03SHE3-18
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VCAN26A2-03SHE3-18
Vishay Intertechnologies
Trans Voltage Suppressor Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 111 Weeks | |
| Date Of Intro | 2016-07-18 | |
| Samacsys Manufacturer | Vishay | |
| Breakdown Voltage-Max | 32 V | |
| Breakdown Voltage-Min | 28 V | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G3 | |
| Non-rep Peak Rev Power Dis-Max | 150 W | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity | BIDIRECTIONAL | |
| Reference Standard | AEC-Q101; IEC-61000-4-2, 4-5 | |
| Rep Pk Reverse Voltage-Max | 26.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
