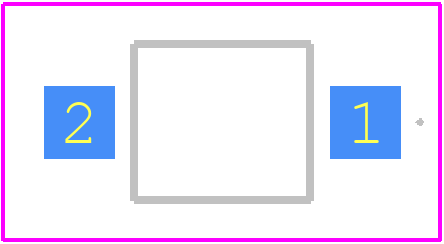

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VBP104FASR by Vishay Intertechnologies
Results Overview of VBP104FASR by Vishay Intertechnologies
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
VBP104FASR Information
VBP104FASR by Vishay Intertechnologies is a Photo Diode.
Photo Diodes are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for VBP104FASR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70R1429
|
Newark | Diode, Photo, 950Nm, 65°, Smd, No. Of Pins:2Pins, Diode Case Style:Smd, Wavelength Of Peak Sensitivity:950Nm, Angle Of Half Sensitivity ±:65°, Dark Current:2000Pa, Operating Temperature Min:-40°C, Operating Temperature Max:100°C Rohs Compliant: Yes |Vishay VBP104FASR RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.4990 | Buy Now |
|
DISTI #
VBP104FASR
|
Avnet Americas | SMD PHOTOPIN DIODE DAYL.F RG -e3 - Tape and Reel (Alt: VBP104FASR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.3725 / $0.4498 | Buy Now |
|
DISTI #
782-VBP104FASR
|
Mouser Electronics | Photodiodes Reverse gullwing 780-1050nm +/-65 deg RoHS: Compliant | 1288 |
|
$0.3880 / $1.1100 | Buy Now |
|
|
ComSIT USA | SILICON PIN PHOTODIODE PIN Photodiode RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
VBP104FASR
|
EBV Elektronik | SMD PHOTOPIN DIODE DAYLF RG e3 (Alt: VBP104FASR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 18 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Optoelectronics | 762 |
|
RFQ |
Part Details for VBP104FASR
VBP104FASR CAD Models
VBP104FASR Part Data Attributes
|
|
VBP104FASR
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VBP104FASR
Vishay Intertechnologies
PIN Photodiode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | DAY LIGHT FILTER, HIGH SENSITIVITY | |
| Configuration | SINGLE | |
| Dark Current-Max | 30 nA | |
| Infrared Range | YES | |
| JESD-609 Code | e3 | |
| Light Current-Nom | 0.035 mA | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | PIN PHOTODIODE | |
| Peak Wavelength | 950 nm | |
| Reverse Breakdown Voltage-Min | 60 V | |
| Reverse Voltage-Max | 60 V | |
| Semiconductor Material | Silicon | |
| Shape | SQUARE | |
| Size | 2.4 mm | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) |
VBP104FASR Frequently Asked Questions (FAQ)
-
The recommended storage condition for VBP104FASR is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
-
To prevent electrostatic discharge (ESD) damage, handle VBP104FASR with an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded.
-
The maximum power rating for VBP104FASR is 1 W, and it is recommended to derate the power according to the ambient temperature to ensure reliable operation.
-
Yes, VBP104FASR is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the component's parasitic inductance and capacitance when designing the circuit.
-
Use a soldering iron with a temperature of 260°C (500°F) or less, and ensure that the soldering time is less than 3 seconds to prevent thermal damage to the component.
