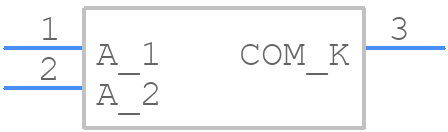

Part Symbol
-

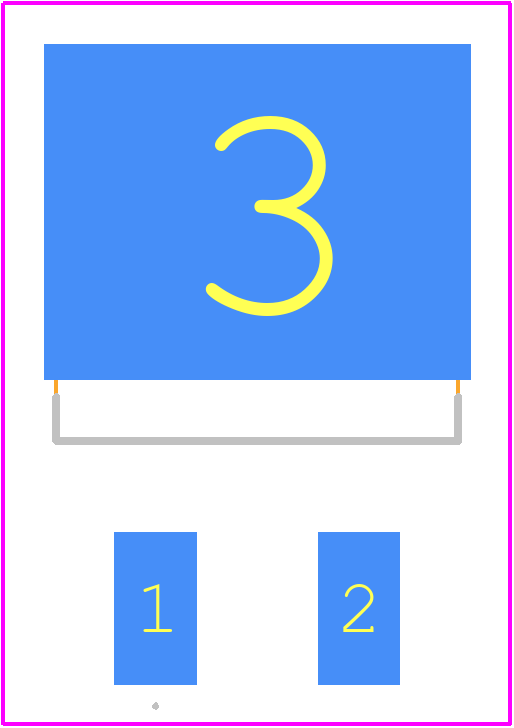

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for VB30200C-E3/4W by Vishay Intertechnologies
Results Overview of VB30200C-E3/4W by Vishay Intertechnologies
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Electronic Manufacturing
VB30200C-E3/4W Information
VB30200C-E3/4W by Vishay Intertechnologies is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for VB30200C-E3/4W
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09N9063
|
Newark | Rectifier Diodes, common Cathode, schottky,200V V(Rrm),to-263Ab |Vishay VB30200C-E3/4W RoHS: Not Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.2600 | Buy Now |
|
DISTI #
VB30200C-E3/4W
|
Avnet Americas | 30A,200V,TRENCH SKY RECT. - Rail/Tube (Alt: VB30200C-E3/4W) RoHS: Compliant Min Qty: 8000 Package Multiple: 1000 Lead time: 7 Weeks, 0 Days Container: Tube | 0 |
|
$0.9746 / $1.0355 | Buy Now |
|
DISTI #
625-VB30200C-E3/4W
|
Mouser Electronics | Schottky Diodes & Rectifiers 30 Amp 200 Volt RoHS: Compliant | 6456 |
|
$1.0300 / $1.9300 | Buy Now |
|
DISTI #
VB30200C-E3/4W
|
TTI | Schottky Diodes & Rectifiers 30 Amp 200 Volt RoHS: Compliant pbFree: Pb-Free Min Qty: 8000 Package Multiple: 50 Container: Tube | Americas - 0 |
|
$1.0100 | Buy Now |
|
DISTI #
VB30200C-E3/4W
|
TME | Diode: Schottky rectifying, TO263AB, SMD, 200V, 15Ax2, tube Min Qty: 1 | 0 |
|
$2.0000 / $3.5700 | RFQ |
|
DISTI #
VB30200C-E3/4W
|
IBS Electronics | DIODE SCHOTTKY 200V 30A 3-PIN(2+, TAB) TO-263AB TUBE Min Qty: 1000 Package Multiple: 1 | 0 |
|
$0.8580 / $0.8970 | Buy Now |
|
DISTI #
VB30200C-E3/4W
|
EBV Elektronik | 30A200VTRENCH SKY RECT (Alt: VB30200C-E3/4W) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 8 Weeks, 0 Days | EBV - 850 |
|
Buy Now | |
|
|
LCSC | 200V 1 pair of common cathodes 15A 1.1V15A TO-263AB(D2PAK) Schottky Diodes ROHS | 3 |
|
$1.4061 / $2.2676 | Buy Now |
|
|
New Advantage Corporation | ZenerDiode,24VV(Z),2%,0.25W,Silicon,Unidirectional,TO-236AB RoHS: Compliant Min Qty: 1 Package Multiple: 50 | 700 |
|
$6.1100 / $6.6200 | Buy Now |
Part Details for VB30200C-E3/4W
VB30200C-E3/4W CAD Models
VB30200C-E3/4W Part Data Attributes
|
|
VB30200C-E3/4W
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
VB30200C-E3/4W
Vishay Intertechnologies
Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 200V V(RRM), Silicon, TO-263AB, ROHS COMPLIANT PACKAGE-3
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | ROHS COMPLIANT PACKAGE-3 | |
| Reach Compliance Code | not_compliant | |
| Factory Lead Time | 7 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | EFFICIENCY | |
| Case Connection | ISOLATED | |
| Configuration | COMMON CATHODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.69 V | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 250 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 15 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 245 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 200 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
