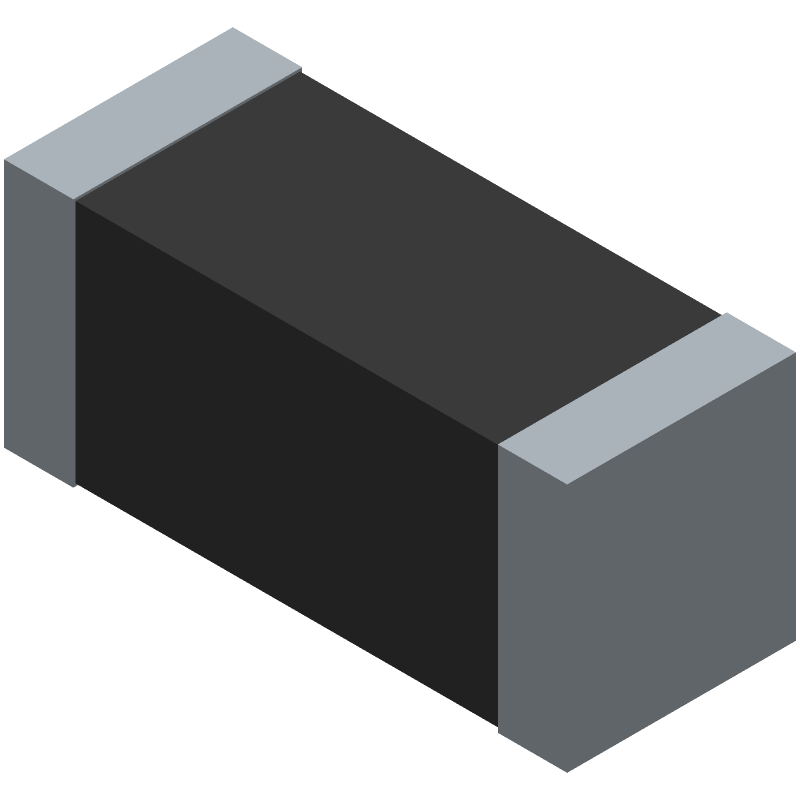

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for V33MLA1206NH by Littelfuse Inc
Results Overview of V33MLA1206NH by Littelfuse Inc
- Distributor Offerings: (26 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
V33MLA1206NH Information
V33MLA1206NH by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for V33MLA1206NH
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
75M5776
|
Newark | Varistor, 33V, 75V, 1206, Voltage Rating Vac:26V, Voltage Rating Vdc:33V, Product Range:Mla Series, Clamping Voltage Vc Max:75V, Varistor Case Style:1206 [3216 Metric], Peak Surge Current @ 8/20Μs:180A, Peak Energy (10/1000Us):800Mj Rohs Compliant: Yes |Littelfuse V33MLA1206NH RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 4571 |
|
$0.5010 / $0.6380 | Buy Now |
|
DISTI #
05B9184
|
Newark | Varistor, 33V, 75V, 1206, Full Reel, Voltage Rating Vac:26V, Voltage Rating Vdc:33V, Product Range:Mla Series, Clamping Voltage Vc Max:75V, Varistor Case Style:1206 [3216 Metric], Peak Surge Current @ 8/20Μs:180A Rohs Compliant: Yes |Littelfuse V33MLA1206NH RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4580 | Buy Now |
|
DISTI #
F2204CT-ND
|
DigiKey | VARISTOR 43.5V 180A 1206 Min Qty: 1 Lead time: 15 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
8905 In Stock |
|
$0.4381 / $1.6700 | Buy Now |
|
DISTI #
576-V33MLA1206NH
|
Mouser Electronics | Varistors 33V 180A 500pF RoHS: Compliant | 81170 |
|
$0.4380 / $1.1100 | Buy Now |
|
DISTI #
E02:0323_00183405
|
Arrow Electronics | Var MLV 26VAC/33VDC 180A 49V 1206 SMD T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Date Code: 2508 | Europe - 620000 |
|
$0.1451 / $0.3696 | Buy Now |
|
DISTI #
V36:1790_06493906
|
Arrow Electronics | Var MLV 26VAC/33VDC 180A 49V 1206 SMD T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Date Code: 2434 | Americas - 42500 |
|
$0.4276 | Buy Now |
|
DISTI #
V72:2272_06493906
|
Arrow Electronics | Var MLV 26VAC/33VDC 180A 49V 1206 SMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2227 Container: Cut Strips | Americas - 20 |
|
$0.4705 / $0.7242 | Buy Now |
|
|
Future Electronics | MLA Series 1206 33 VDC 26 V RMS 75 V Clamp 180A 500 pF SMT Multilayer Varistor RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Container: Reel | 40000Reel |
|
$0.1690 / $0.1770 | Buy Now |
|
|
Future Electronics | MLA Series 1206 33 VDC 26 V RMS 75 V Clamp 180A 500 pF SMT Multilayer Varistor RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 16 Weeks Container: Reel | 0Reel |
|
$0.1690 / $0.1770 | Buy Now |
|
DISTI #
9506785
|
Verical | Var MLV 26VAC/33VDC 180A 49V 1206 SMD T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 | Americas - 620000 |
|
$0.1459 / $0.3717 | Buy Now |
Part Details for V33MLA1206NH
V33MLA1206NH CAD Models
V33MLA1206NH Part Data Attributes
|
|
V33MLA1206NH
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
V33MLA1206NH
Littelfuse Inc
Varistor, 33V, 0.8J, Surface Mount, CHIP, 1206, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.40.00 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Circuit RMS Voltage-Max | 26 V | |
| Energy Absorbing Capacity-Max | 0.8 J | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 1.8 mm | |
| Package Length | 3.2 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 1.6 mm | |
| Packing Method | TR, PLASTIC, 7 INCH | |
| Rated Temperature | 125 °C | |
| Resistor Type | VARISTOR | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Working Voltage | 33 V |
V33MLA1206NH Frequently Asked Questions (FAQ)
-
The recommended land pattern for the V33MLA1206NH is a rectangular pad with a size of 1.3mm x 0.8mm, with a solder mask clearance of 0.1mm.
-
Yes, the V33MLA1206NH is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at extreme temperatures.
-
Handle the V33MLA1206NH by the body, avoiding touching the leads or the glass passivation. Use a vacuum pickup or tweezers to handle the device. For rework, use a low-temperature soldering iron and a solder with a melting point below 200°C.
-
Store the V33MLA1206NH in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 30°C, with a relative humidity of 60% or less.
-
Yes, the V33MLA1206NH is suitable for high-frequency applications up to 1 GHz. However, the device's performance may degrade at frequencies above 500 MHz due to parasitic inductance and capacitance.
