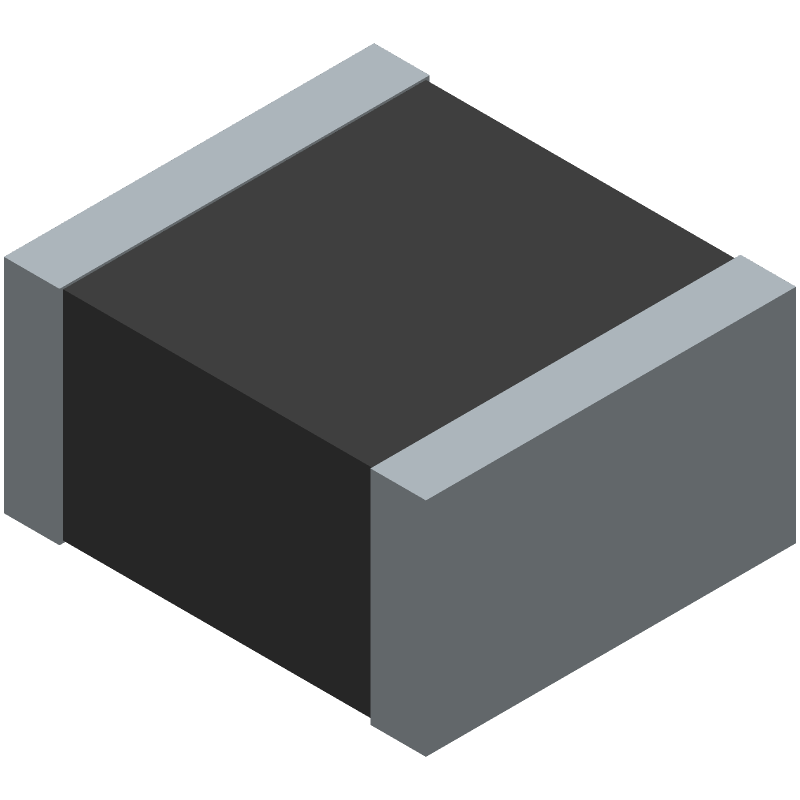

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for V24AUMLA2220H by Littelfuse Inc
Results Overview of V24AUMLA2220H by Littelfuse Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Security and Surveillance
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
V24AUMLA2220H Information
V24AUMLA2220H by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for V24AUMLA2220H
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
91T0176
|
Newark | Multi Layer Varistor Smf For Automotive/ Tr |Littelfuse V24AUMLA2220H RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$2.1800 / $2.7900 | Buy Now |
|
DISTI #
F10948CT-ND
|
DigiKey | VARISTOR 35.5V 2220 Min Qty: 1 Lead time: 17 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1301 In Stock |
|
$2.1095 / $5.0900 | Buy Now |
|
DISTI #
576-V24AUMLA2220H
|
Mouser Electronics | Varistors 24V 2220 125C AUML AEC-Q200 Low Profile RoHS: Compliant | 880 |
|
$2.1000 / $3.8200 | Buy Now |
|
DISTI #
000000000007270716
|
Sager | MULTI LAYER VARISTOR SMF FOR AUTOMOTIVE Min Qty: 1000 | 0 |
|
Buy Now |
Part Details for V24AUMLA2220H
V24AUMLA2220H CAD Models
V24AUMLA2220H Part Data Attributes
|
|
V24AUMLA2220H
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
V24AUMLA2220H
Littelfuse Inc
RESISTOR, VOLTAGE DEPENDENT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.40.00 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3 mm | |
| Package Length | 5.7 mm | |
| Package Style | SMT | |
| Package Width | 5 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Temperature | 125 °C | |
| Reference Standard | AEC-Q200 | |
| Resistor Type | VARISTOR | |
| Surface Mount | YES | |
| Technology | METAL OXIDE | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Working Voltage | 24 V |
V24AUMLA2220H Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the V24AUMLA2220H is a rectangular pad with a size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
-
The maximum operating temperature range for the V24AUMLA2220H is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
-
Yes, the V24AUMLA2220H is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration, 10-2000Hz frequency range.
-
To handle ESD protection, use an ESD wrist strap or mat, and ensure that the component is stored in an ESD-protected environment. Avoid touching the component's pins or handling it in a way that could generate static electricity.
