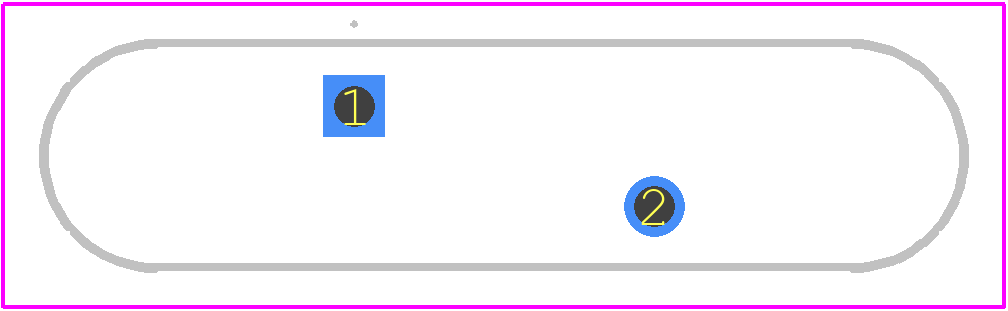

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for V130LA20AP by Littelfuse Inc
Results Overview of V130LA20AP by Littelfuse Inc
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
V130LA20AP Information
V130LA20AP by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for V130LA20AP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58K7217
|
Newark | Metal Oxide Varistor, 175V 340V Rad, Voltage Rating Vac:130V, Voltage Rating Vdc:175V, Product Range:La Series, Clamping Voltage Vc Max:340V, Varistor Case Style:Disc 20Mm, Peak Surge Current @ 8/20Μs:6.5Ka, Capacitance, Cd:1900Pf Rohs Compliant: Yes |Littelfuse V130LA20AP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1814 |
|
$0.3400 / $0.8000 | Buy Now |
|
DISTI #
F3030-ND
|
DigiKey | VARISTOR 205V 6.5KA DISC 20MM Min Qty: 1 Lead time: 14 Weeks Container: Bulk |
929 In Stock |
|
$0.3342 / $1.3800 | Buy Now |
|
DISTI #
576-V130LA20AP
|
Mouser Electronics | Varistors 130V 1900pF RoHS: Compliant | 11446 |
|
$0.3470 / $1.0100 | Buy Now |
|
DISTI #
V36:1790_06481221
|
Arrow Electronics | Var MOV 130VAC/175VDC 6500A 225.5V Thru-Hole Radial Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2413 | Americas - 7236 |
|
$0.2783 / $0.9457 | Buy Now |
|
DISTI #
E02:0323_00182778
|
Arrow Electronics | Var MOV 130VAC/175VDC 6500A 225.5V Thru-Hole Radial Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2441 | Europe - 900 |
|
$0.2800 / $1.0042 | Buy Now |
|
DISTI #
70184691
|
RS | Varistor, Circuit Protection, 130VAC, 340V, 6500A, Metal Oxide, 1900pF, Radial Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 1710 |
|
$0.8300 / $1.1100 | Buy Now |
|
|
Future Electronics | LA Series 175 VDC 130 V RMS 340 V Clamp 6500 A 1900 pF Radial Lead Varistor RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Container: Bag | 12880Bag |
|
$0.1710 / $0.1920 | Buy Now |
|
DISTI #
86220673
|
Verical | Var MOV 130VAC/175VDC 6500A 225.5V Thru-Hole Radial Bulk RoHS: Compliant Min Qty: 500 Package Multiple: 500 Date Code: 2413 | Americas - 8500 |
|
$0.2344 / $0.2923 | Buy Now |
|
DISTI #
86917264
|
Verical | Var MOV 130VAC/175VDC 6500A 225.5V Thru-Hole Radial Bulk RoHS: Compliant Min Qty: 39 Package Multiple: 1 Date Code: 2413 | Americas - 7236 |
|
$0.2783 / $0.5197 | Buy Now |
|
DISTI #
87074542
|
Verical | Var MOV 130VAC/175VDC 6500A 225.5V Thru-Hole Radial Bulk RoHS: Compliant Min Qty: 51 Package Multiple: 1 Date Code: 2441 | Americas - 900 |
|
$0.2815 / $0.5358 | Buy Now |
Part Details for V130LA20AP
V130LA20AP CAD Models
V130LA20AP Part Data Attributes
|
|
V130LA20AP
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
V130LA20AP
Littelfuse Inc
Varistor, 175V, 70J, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.40.00 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Circuit RMS Voltage-Max | 130 V | |
| Energy Absorbing Capacity-Max | 70 J | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 26.5 mm | |
| Package Length | 23 mm | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Package Width | 5.6 mm | |
| Packing Method | BULK | |
| Rated Temperature | 85 °C | |
| Reference Standard | CECC; CUL; UL; VDE | |
| Resistor Type | VARISTOR | |
| Surface Mount | NO | |
| Technology | METAL OXIDE | |
| Terminal Finish | TIN | |
| Terminal Placement | RADIAL | |
| Terminal Shape | WIRE | |
| Working Voltage | 175 V |
Alternate Parts for V130LA20AP
This table gives cross-reference parts and alternative options found for V130LA20AP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of V130LA20AP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| V130LTX20B | Intersil Corporation | Check for Price | METAL-OXIDE VARISTOR (MOV),130V V(RMS),6.5KA I(TM),RADIAL | V130LA20AP vs V130LTX20B |
| V130LU20A | Littelfuse Inc | Check for Price | RESISTOR, VOLTAGE DEPENDENT, 175V, 70J, THROUGH HOLE MOUNT, RADIAL LEADED | V130LA20AP vs V130LU20A |
V130LA20AP Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the V130LA20AP is a rectangular pad with a minimum size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the component.
-
The maximum operating temperature range for the V130LA20AP is -40°C to 150°C, with a maximum storage temperature range of -40°C to 150°C.
-
Yes, the V130LA20AP is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration, 10-2000Hz frequency range.
-
To prevent electrostatic discharge (ESD) damage, handle the V130LA20AP with an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded.
