Capacitors / Aluminum Electrolytic Capacitors / UVZ2G3R3MPD1TD
Datasheets
UVZ2G3R3MPD1TD by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for UVZ2G3R3MPD1TD by Nichicon Corporation

Results Overview of UVZ2G3R3MPD1TD by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

UVZ2G3R3MPD1TD Information

UVZ2G3R3MPD1TD by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UVZ2G3R3MPD1TD

Part # Distributor Description Stock Price Buy
DISTI # 65R3327
Newark Aluminum Electrolytic Capacitor, 3.3Uf, 400V, 20%, Radial, Capacitance:3.3Μf, Voltage(Dc):400V, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin, Lifetime @ Temperature:1000 Hours @ 105°C, Polarity:Polar, Lead Spacing:5Mm Rohs Compliant: Yes |Nichicon UVZ2G3R3MPD1TD RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Ammo Pack 952
  • 1 $0.5400
$0.5400 Buy Now
DISTI # 493-13554-1-ND
DigiKey CAP ALUM 3.3UF 20% 400V RADIAL Min Qty: 1 Lead time: 29 Weeks Container: Cut Tape (CT), Tape & Box (TB) 936
In Stock
  • 1 $0.6000
  • 10 $0.3760
  • 50 $0.2796
  • 100 $0.2493
  • 500 $0.1967
  • 1,000 $0.1802
  • 1,500 $0.1718
  • 2,500 $0.1624
  • 3,500 $0.1570
  • 5,000 $0.1516
  • 12,500 $0.1401
  • 25,000 $0.1331
  • 50,000 $0.1273
$0.1273 / $0.6000 Buy Now
DISTI # 647-UVZ2G3R3MPD1TD
Mouser Electronics Aluminum Electrolytic Capacitors - Radial Leaded 3.3uF 400 Volts 20% RoHS: Compliant 18
  • 1 $0.5400
  • 10 $0.2810
  • 100 $0.2550
  • 500 $0.2070
  • 1,000 $0.1830
  • 2,500 $0.1630
  • 10,000 $0.1500
  • 25,000 $0.1420
  • 50,000 $0.1340
$0.1340 / $0.5400 Buy Now
DISTI # UVZ2G3R3MPD1TD
Avnet Abacus Aluminum Electrolytic Capacitor 33 uF 400 V 20 2000 hours 105C Radial Leaded (Alt: UVZ2G3R3MPD1TD) RoHS: Compliant Min Qty: 5000 Package Multiple: 500 Lead time: 48 Weeks, 0 Days Abacus - 0
Buy Now
Vyrian Capacitors 1342
RFQ

Part Details for UVZ2G3R3MPD1TD

UVZ2G3R3MPD1TD CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

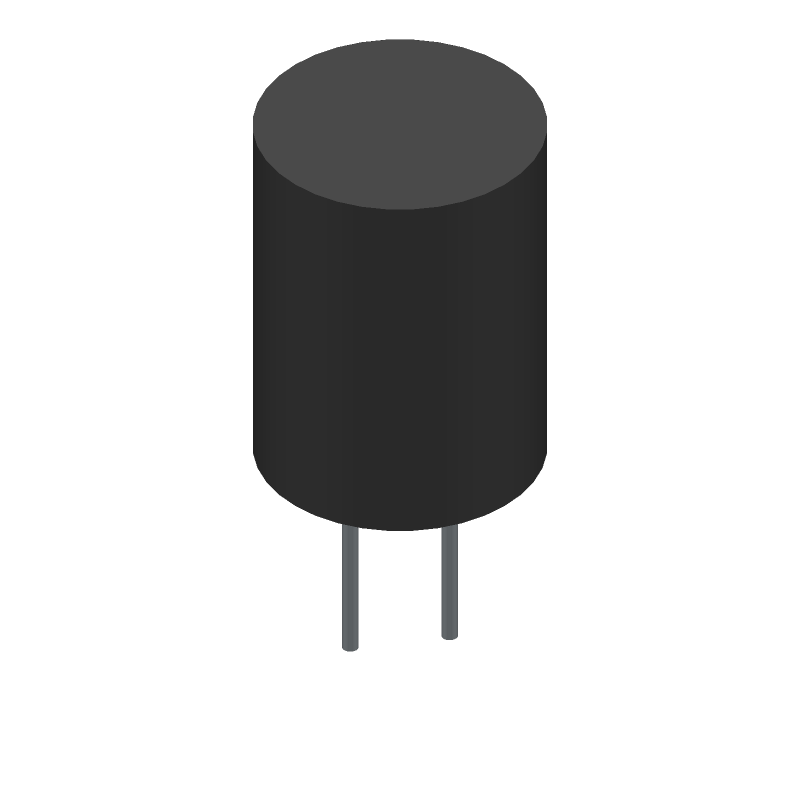

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UVZ2G3R3MPD1TD Part Data Attributes

Parametric Data
UVZ2G3R3MPD1TD Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UVZ2G3R3MPD1TD Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NICHICON CORP
Package Description RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Capacitance 3.3 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 10 mm
Dielectric Material ALUMINUM (WET)
JESD-609 Code e3
Leakage Current 0.1528 mA
Length 12.5 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method AMMO PACK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 400 V
Ripple Current 38 mA
Surface Mount NO
Tan Delta 0.25
Terminal Finish MATTE TIN
Terminal Pitch 5 mm
Terminal Shape WIRE

Alternate Parts for UVZ2G3R3MPD1TD

This table gives cross-reference parts and alternative options found for UVZ2G3R3MPD1TD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UVZ2G3R3MPD1TD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
NREHW3R3M400V10X12.5SP7.5LLYF NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 400V, 20% +Tol, 20% -Tol, 3.3uF, UVZ2G3R3MPD1TD vs NREHW3R3M400V10X12.5SP7.5LLYF
EKXE401ELL3R3MJC5S Chemi-Con Check for Price CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID UVZ2G3R3MPD1TD vs EKXE401ELL3R3MJC5S
EKMG401EC33R3MJC5S Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount, RADIAL LEADED, LEAD FREE UVZ2G3R3MPD1TD vs EKMG401EC33R3MJC5S
NRE-HW3R3M400V10X12.5TBYF NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT UVZ2G3R3MPD1TD vs NRE-HW3R3M400V10X12.5TBYF
NREHW3R3M400V10X12.5TBNYF NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 400V, 20% +Tol, 20% -Tol, 3.3uF, UVZ2G3R3MPD1TD vs NREHW3R3M400V10X12.5TBNYF
NREHW3R3M400V10X12.5F NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT UVZ2G3R3MPD1TD vs NREHW3R3M400V10X12.5F
NREHW3R3M400V10X12.5F3CF NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 400V, 20% +Tol, 20% -Tol, 3.3uF, UVZ2G3R3MPD1TD vs NREHW3R3M400V10X12.5F3CF
NREHW3R3M400V10X12.5TBSTYF NIC Components Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 400V, 20% +Tol, 20% -Tol, 3.3uF, UVZ2G3R3MPD1TD vs NREHW3R3M400V10X12.5TBSTYF
EKMG401EC53R3MJC5S Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 400V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount, RADIAL LEADED, LEAD FREE UVZ2G3R3MPD1TD vs EKMG401EC53R3MJC5S
RJ4-400V3R3MH3#-S1 ELNA America Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 400V, 20% +Tol, 20% -Tol, 3.3uF, UVZ2G3R3MPD1TD vs RJ4-400V3R3MH3#-S1

UVZ2G3R3MPD1TD Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.

  • Yes, the UVZ2G3R3MPD1TD is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration applications.

  • Yes, the UVZ2G3R3MPD1TD is compatible with lead-free soldering and can withstand the higher temperatures required for lead-free soldering processes.

  • The ESR of the UVZ2G3R3MPD1TD is typically around 0.02Ω, but this value can vary depending on the frequency and operating conditions.

  • Yes, the UVZ2G3R3MPD1TD is rated for operation up to 125°C, making it suitable for high-temperature applications.
