Capacitors / Aluminum Electrolytic Capacitors / UVR2AR22MDD1TD
Datasheets
UVR2AR22MDD1TD by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for UVR2AR22MDD1TD by Nichicon Corporation

Results Overview of UVR2AR22MDD1TD by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Entertainment and Gaming

UVR2AR22MDD1TD Information

UVR2AR22MDD1TD by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UVR2AR22MDD1TD

Part # Distributor Description Stock Price Buy
DISTI # 65R2837
Newark Aluminum Electrolytic Capacitor 0.22Uf, 100V, 20%, Radial, Capacitance:0.22Μf, Voltage(Dc):100V, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Lead Spacing:2Mm Rohs Compliant: Yes |Nichicon UVR2AR22MDD1TD RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1356
  • 1 $0.0530
  • 10 $0.0530
  • 25 $0.0530
  • 50 $0.0530
  • 100 $0.0490
  • 250 $0.0490
  • 500 $0.0490
  • 1,000 $0.0490
$0.0490 / $0.0530 Buy Now
DISTI # 493-12824-1-ND
DigiKey CAP ALUM 0.22UF 20% 100V RADIAL Min Qty: 1 Lead time: 21 Weeks Container: Tape & Box (TB), Cut Tape (CT) 2312
In Stock
  • 1 $0.2500
  • 10 $0.1540
  • 50 $0.1112
  • 100 $0.0977
  • 500 $0.0743
  • 1,000 $0.0669
$0.0669 / $0.2500 Buy Now
DISTI # UVR2AR22MDD1TD
Avnet Abacus (Alt: UVR2AR22MDD1TD) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 143 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for UVR2AR22MDD1TD

UVR2AR22MDD1TD CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

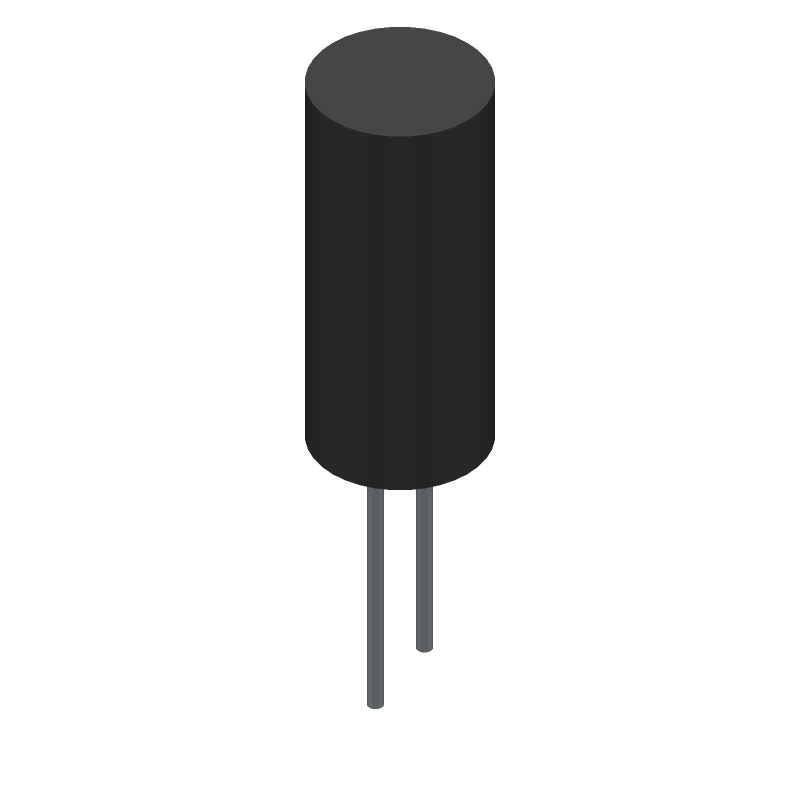

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UVR2AR22MDD1TD Part Data Attributes

Parametric Data
UVR2AR22MDD1TD Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UVR2AR22MDD1TD Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer NICHICON CORP
Package Description RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Capacitance 0.22 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 5 mm
Dielectric Material ALUMINUM (WET)
JESD-609 Code e3
Leakage Current 0.004 mA
Length 11 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method AMMO PACK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 100 V
Ripple Current 4.7 mA
Surface Mount NO
Tan Delta 0.08
Terminal Finish Tin (Sn)
Terminal Pitch 2.5 mm
Terminal Shape WIRE

Alternate Parts for UVR2AR22MDD1TD

This table gives cross-reference parts and alternative options found for UVR2AR22MDD1TD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UVR2AR22MDD1TD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RDLR22M100TB15X11 IBS Electronics Inc Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF UVR2AR22MDD1TD vs RDLR22M100TB15X11
ESMG101ELLR22ME11D Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT UVR2AR22MDD1TD vs ESMG101ELLR22ME11D
ESME101ETER22ME11C Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF, UVR2AR22MDD1TD vs ESME101ETER22ME11C
ESMG101ETDR22ME11B Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF, UVR2AR22MDD1TD vs ESMG101ETDR22ME11B
ESMG101ELLR22ME11A Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF, UVR2AR22MDD1TD vs ESMG101ELLR22ME11A
UKW2AR22MDD1FA Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF, UVR2AR22MDD1TD vs UKW2AR22MDD1FA
UVR2AR22MDD1FA Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF, UVR2AR22MDD1TD vs UVR2AR22MDD1FA
REAR22M2ABC-0511C Lelon Electronics Corp Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF, UVR2AR22MDD1TD vs REAR22M2ABC-0511C
UVR2AR22MDD1TP Nichicon Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT UVR2AR22MDD1TD vs UVR2AR22MDD1TP
ESME101ETDR22ME11N Chemi-Con Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 0.22uF, UVR2AR22MDD1TD vs ESME101ETDR22ME11N

UVR2AR22MDD1TD Related Parts

UVR2AR22MDD1TD Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.

  • Yes, the UVR2AR22MDD1TD is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration applications.

  • Yes, the UVR2AR22MDD1TD is compatible with lead-free soldering and is RoHS compliant.

  • The ESR of the UVR2AR22MDD1TD is 0.015Ω or less at 100kHz, 20°C.

  • Yes, the UVR2AR22MDD1TD can operate in temperatures up to 125°C, but the capacitance and ESR may vary with temperature.
