Capacitors / Aluminum Electrolytic Capacitors / UVR2A222MRD6
Datasheets
UVR2A222MRD6 by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for UVR2A222MRD6 by Nichicon Corporation

Results Overview of UVR2A222MRD6 by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Renewable Energy

UVR2A222MRD6 Information

UVR2A222MRD6 by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UVR2A222MRD6

Part # Distributor Description Stock Price Buy
DISTI # 43K0214
Newark Aluminum Electrolytic Capacitor 2200Uf, 100V, 20%, Radial, Capacitance:2200Μf, Voltage(Dc):100V, Capacitance Tolerance:± 20%, Capacitor Terminals:Pc Pin, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Lead Spacing:12.5Mm Rohs Compliant: Yes |Nichicon UVR2A222MRD6 RoHS: Compliant Min Qty: 180 Package Multiple: 1 Date Code: 1 Container: Bulk 0
  • 100 $3.0400
  • 500 $2.7600
  • 1,000 $2.4400
  • 2,500 $2.2700
$2.2700 / $3.0400 Buy Now
Quest Components ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 2200UF, THROUGH HOLE MOUNT 76
  • 1 $5.4192
  • 8 $2.7096
  • 75 $2.3483
$2.3483 / $5.4192 Buy Now
DISTI # UVR2A222MRD6
Avnet Abacus Aluminum Electrolytic Capacitor 2200 uF 100 V 20 2000 hours 85C Radial Leaded (Alt: UVR2A222MRD6) RoHS: Compliant Min Qty: 180 Package Multiple: 180 Lead time: 143 Weeks, 0 Days Abacus - 0
Buy Now
Vyrian Capacitors 735
RFQ

Part Details for UVR2A222MRD6

UVR2A222MRD6 CAD Models

  • Part Symbol

    Part Symbol

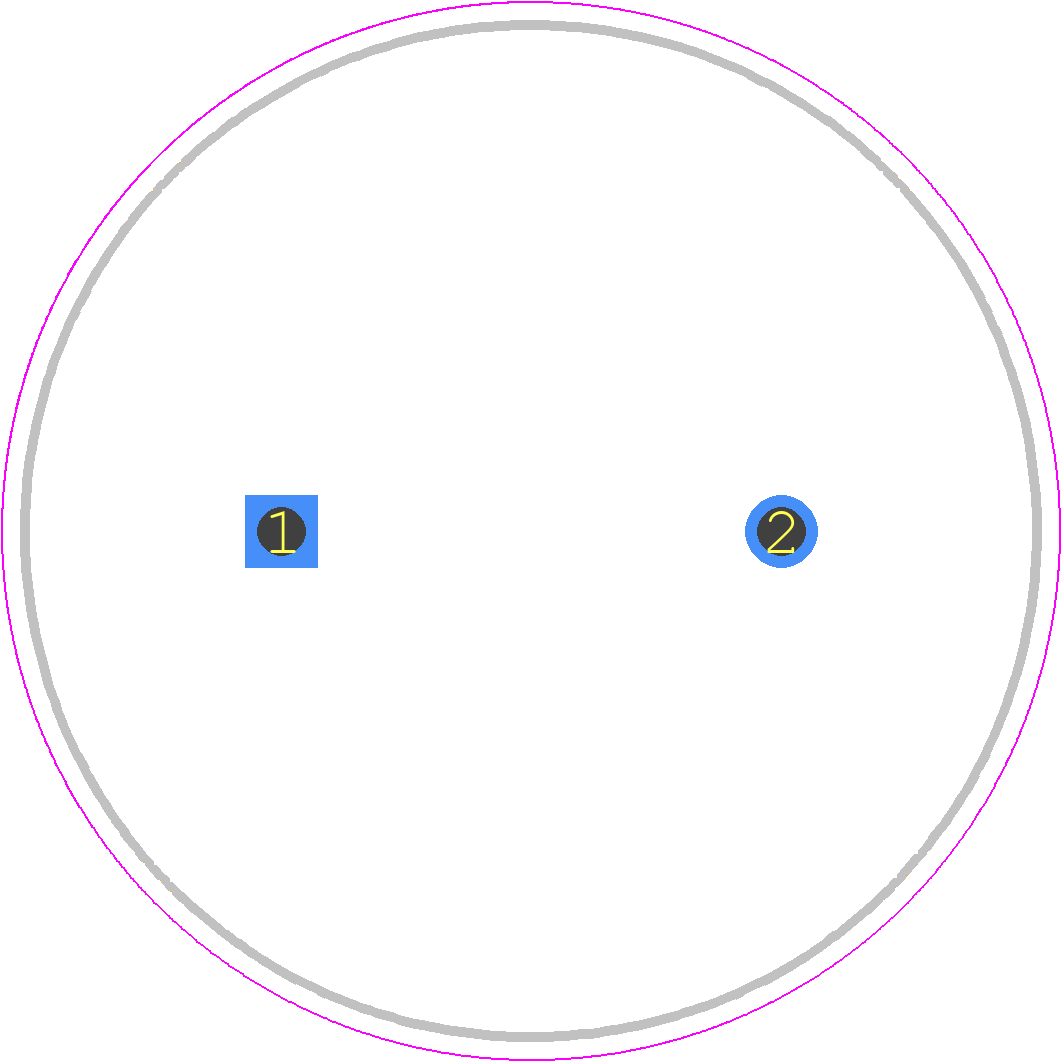

  • Footprint

    footprint

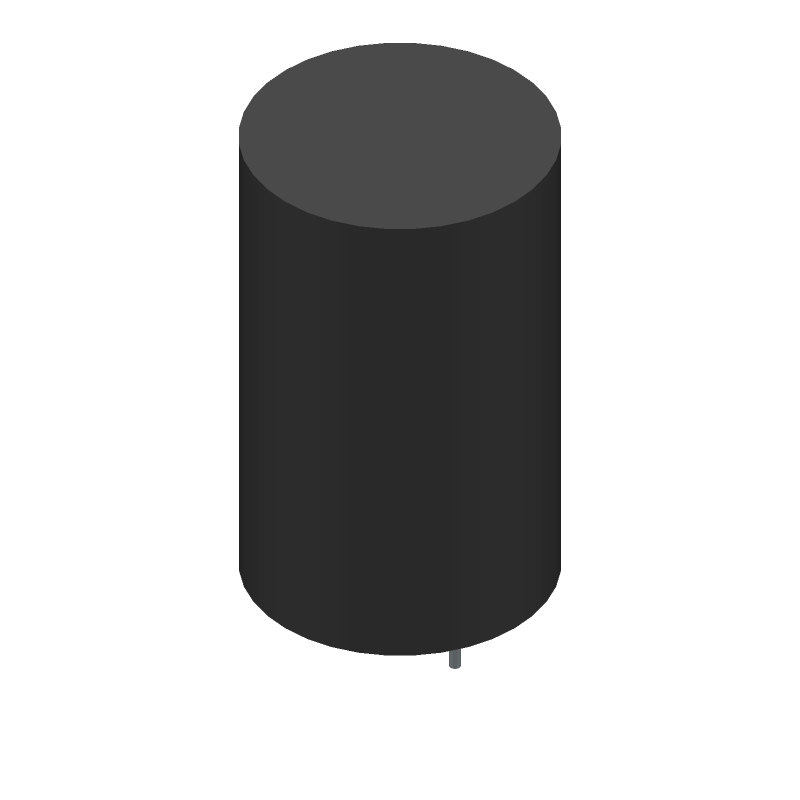

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UVR2A222MRD6 Part Data Attributes

Parametric Data
UVR2A222MRD6 Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UVR2A222MRD6 Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 2200uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer NICHICON CORP
Package Description RADIAL LEADED
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Capacitance 2200 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 25 mm
Dielectric Material ALUMINUM (WET)
JESD-609 Code e3
Leakage Current 6.6 mA
Length 40 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Radial
Packing Method BULK
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 100 V
Ripple Current 2400 mA
Surface Mount NO
Tan Delta 0.1
Terminal Finish Matte Tin (Sn)
Terminal Pitch 12.5 mm
Terminal Shape WIRE

Alternate Parts for UVR2A222MRD6

This table gives cross-reference parts and alternative options found for UVR2A222MRD6. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UVR2A222MRD6, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1222MAM2540LPN08F0 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 1222MAM2540LPN08F0
1222MAM2540LPN5810 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 1222MAM2540LPN5810
2222MAM2540LPN2850 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 2222MAM2540LPN2850
2222MAM2540LPN0810 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 2222MAM2540LPN0810
8222MAM2540LPN48E0 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 8222MAM2540LPN48E0
8222MAM2540LPN38F0 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 8222MAM2540LPN38F0
1222MAM2540LPN48F0 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 1222MAM2540LPN48F0
1222MAM2540LPN58E0 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 1222MAM2540LPN58E0
1222MAM2540LPN9810 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 1222MAM2540LPN9810
8222MAM2540LPN3810 Fenghua (HK) Electronics Ltd Check for Price CAP,AL2O3,2.2MF,100VDC,20% -TOL,20% +TOL UVR2A222MRD6 vs 8222MAM2540LPN3810

UVR2A222MRD6 Related Parts

UVR2A222MRD6 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.

  • Yes, the UVR2A222MRD6 is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, making it suitable for high-vibration applications.

  • The UVR2A222MRD6 is designed to operate in humid environments, with a humidity rating of 85°C, 85% RH, 1000 hours, making it suitable for use in humid environments.

  • The ESR of the UVR2A222MRD6 is 0.02Ω or less at 100kHz, making it suitable for high-frequency applications.

  • Yes, the UVR2A222MRD6 meets the requirements of the AEC-Q200 standard, making it suitable for use in automotive applications.
