USP10976 Information
USP10976 by Littelfuse Inc is a Non-linear Resistor.
Non-linear Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for USP10976
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43AC9632
|
Newark | Ntc Thermistor, 10K, Wire Leaded, Thermistor Type:Ring Lug, Probe, Resistance (25°C):10Kohm, Product Range:-, B-Constant:3892K, B-Constant Tolerance:-, Probe Material:-, Lead Length:152.4Mm, Operating Temperature Min:-55°C Rohs Compliant: Yes |Littelfuse USP10976 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$2.9300 / $3.0200 | Buy Now |
|
DISTI #
5666-USP10976-ND
|
DigiKey | THERM NTC 10KOHM 3892K RING LUG Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
444 In Stock |
|
$2.9906 / $4.4200 | Buy Now |
|
DISTI #
803-USP10976
|
Mouser Electronics | NTC Thermistors 10K OHM 1% PROBE ASSEMBLY RoHS: Compliant | 749 |
|
$2.9700 / $4.4200 | Buy Now |
|
DISTI #
72244755
|
RS | Thermistor, USP Series, 10K OHM, Ring Lug, Free Hanging Min Qty: 1 Package Multiple: 1 Container: Bulk | 492 |
|
$4.0000 / $4.6500 | Buy Now |
|
DISTI #
USP10976
|
TTI | NTC Thermistors 10K OHM 1% PROBE ASSEMBLY RoHS: Compliant pbFree: Pb-Free Min Qty: 5 Package Multiple: 5 Container: Bulk |
Americas - 965 In Stock |
|
$2.9100 / $3.8900 | Buy Now |
|
DISTI #
USP10976
|
TME | NTC thermistor, 10kΩ, cables, 3892K, -55÷150°C, ±1%, 152mm Min Qty: 500 | 0 |
|
$3.4900 | RFQ |
|
DISTI #
USP10976
|
IBS Electronics | THERMISTOR USP SERIES 10K OHM RING LUG FREE HANGING | LITTELFUSE USP10976 Min Qty: 500 Package Multiple: 1 | 0 |
|
$3.2240 | Buy Now |
|
DISTI #
000000000007258739
|
Sager | THERMISTOR, US SENSOR P/ Min Qty: 500 | 0 |
|
$3.3700 / $3.4700 | Buy Now |
|
|
Vyrian | Resistors | 1073 |
|
RFQ |
Part Details for USP10976

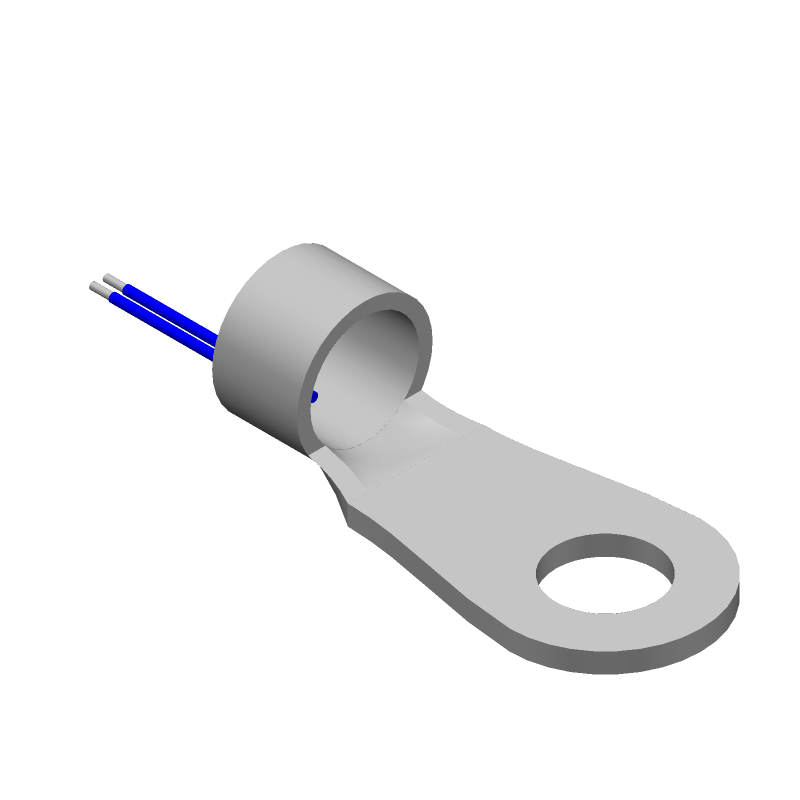

USP10976 CAD Models
USP10976 Part Data Attributes
|
|
USP10976
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
USP10976
Littelfuse Inc
NTC Thermistor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.40.80.70 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Mounting Feature | CHASSIS MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 7.1374 mm | |
| Package Length | 15.748 mm | |
| Package Style | Chassis Mount | |
| Rated Temperature | 25 °C | |
| Resistance | 10000 Ω | |
| Resistor Type | NTC THERMISTOR | |
| Surface Mount | NO | |
| Terminal Placement | RADIAL | |
| Terminal Shape | FLEXIBLE WIRE | |
| Thermal Sensitivity Index | 3892 K | |
| Thermistor Application | TEMPERATURE SENSING | |
| Tolerance | 1% |
