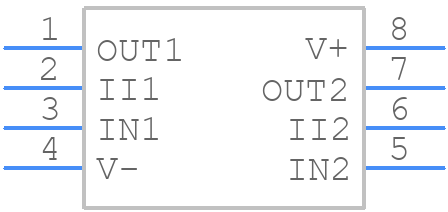

Part Symbol
-

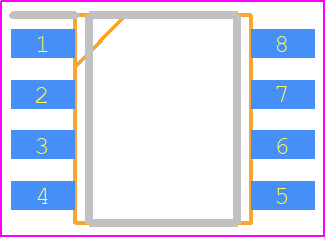

Footprint
-

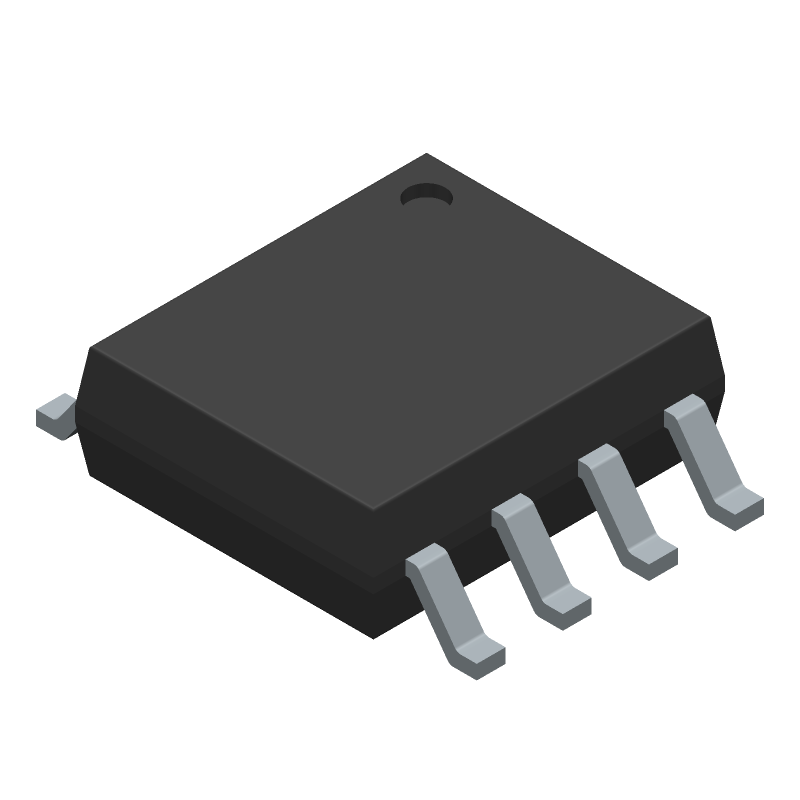

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UPC4072G2-E2-A by Renesas Electronics Corporation
Results Overview of UPC4072G2-E2-A by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UPC4072G2-E2-A Information
UPC4072G2-E2-A by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for UPC4072G2-E2-A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
559-UPC4072G2-E2-ACT-ND
|
DigiKey | LINEAR IC Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2487 In Stock |
|
$0.6608 / $1.4100 | Buy Now |
|
DISTI #
UPC4072G2-E2-A
|
Avnet Americas | OP Amp Dual 13V/us ?5V to ?16V 8-Pin SOP Emboss T/R - Tape and Reel (Alt: UPC4072G2-E2-A) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.9900 | Buy Now |
|
DISTI #
968-UPC4072G2-E2-A
|
Mouser Electronics | Operational Amplifiers - Op Amps LINEAR IC OPERATION AMPLIFIER SOP(225) RoHS: Compliant | 2433 |
|
$0.7160 / $2.4600 | Buy Now |
|
DISTI #
62496482
|
Verical | Op Amp Dual Low Noise Amplifier ±16V 8-Pin SOP Min Qty: 82 Package Multiple: 1 Date Code: 2232 | Americas - 2732 |
|
$0.6760 / $0.8930 | Buy Now |
|
DISTI #
UPC4072G2-E2-A
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2732 |
|
$0.5730 / $1.3500 | Buy Now |
Part Details for UPC4072G2-E2-A
UPC4072G2-E2-A CAD Models
UPC4072G2-E2-A Part Data Attributes
|
|
UPC4072G2-E2-A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
UPC4072G2-E2-A
Renesas Electronics Corporation
J-FET Input LOW-NOISE DUAL OperationAL AMPLIFIER, SOP, /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOP | |
| Pin Count | 8 | |
| Manufacturer Package Code | PRSP0008DL-A8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A002 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Bias Current-Max (IIB) @25C | 0.0002 µA | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.00005 µA | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TAPE AND REEL | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Slew Rate-Nom | 13 V/us | |
| Supply Current-Max | 5 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 3000 | |
| Voltage Gain-Min | 25000 | |
| Wideband | NO |
