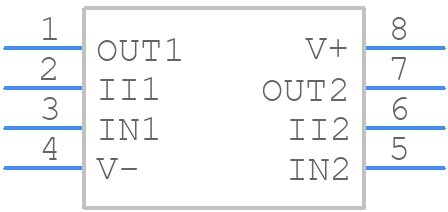

Part Symbol
-
Footprint
-

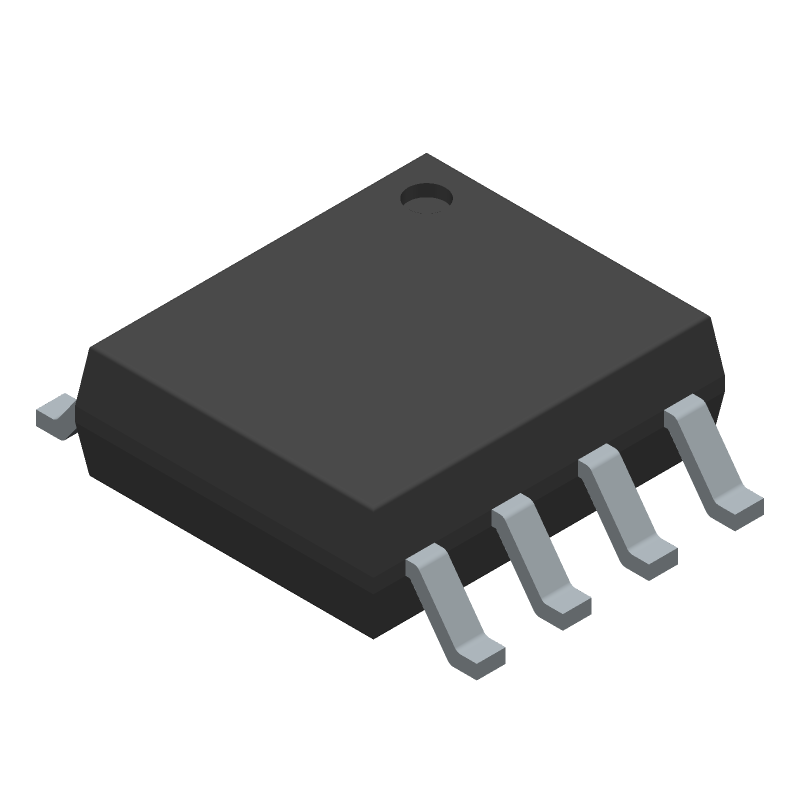

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UPC358G2-A by Renesas Electronics Corporation
Results Overview of UPC358G2-A by Renesas Electronics Corporation
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Industrial Automation
Audio and Video Systems
Electronic Manufacturing
Entertainment and Gaming
UPC358G2-A Information
UPC358G2-A by Renesas Electronics Corporation is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for UPC358G2-A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | 72 |
|
$1.1725 / $2.3450 | Buy Now |
Part Details for UPC358G2-A
UPC358G2-A CAD Models
UPC358G2-A Part Data Attributes
|
|
UPC358G2-A
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
UPC358G2-A
Renesas Electronics Corporation
Operational Amplifiers, SOP, /
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | SOP | |
| Package Description | SOP, SOP8,.25 | |
| Pin Count | 8 | |
| Manufacturer Package Code | PRSP0008DL-A8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A002 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 1986-02-01 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Min | 65 dB | |
| Common-mode Reject Ratio-Nom | 70 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.05 µA | |
| Input Offset Voltage-Max | 7000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e6 | |
| Length | 5.2 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Neg Supply Voltage Limit-Max | -16 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.8 mm | |
| Slew Rate-Min | 0.3 V/us | |
| Supply Current-Max | 1.2 mA | |
| Supply Voltage Limit-Max | 16 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | TIN BISMUTH | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Gain-Min | 25000 | |
| Wideband | NO | |
| Width | 4.4 mm |
Alternate Parts for UPC358G2-A
This table gives cross-reference parts and alternative options found for UPC358G2-A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UPC358G2-A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UPC358G2 | NEC Electronics Group | Check for Price | Operational Amplifier, 2 Func, 7000uV Offset-Max, BIPolar, PDSO8, 0.225 INCH, PLASTIC, SOP-8 | UPC358G2-A vs UPC358G2 |
UPC358G2-A Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the UPC358G2-A is 4.5V to 5.5V.
-
To ensure reliable data transmission, ensure that the transmission line is properly terminated, and the signal amplitude is within the recommended range. Also, use a common mode choke or a ferrite bead to reduce electromagnetic interference (EMI).
-
The UPC358G2-A supports a maximum data transfer rate of 115.2 kbps.
-
Implement error detection and correction mechanisms, such as checksums or cyclic redundancy checks (CRCs), to detect and correct errors during data transmission.
-
The power consumption of the UPC358G2-A is typically around 10mA, but it can vary depending on the operating frequency and voltage.
