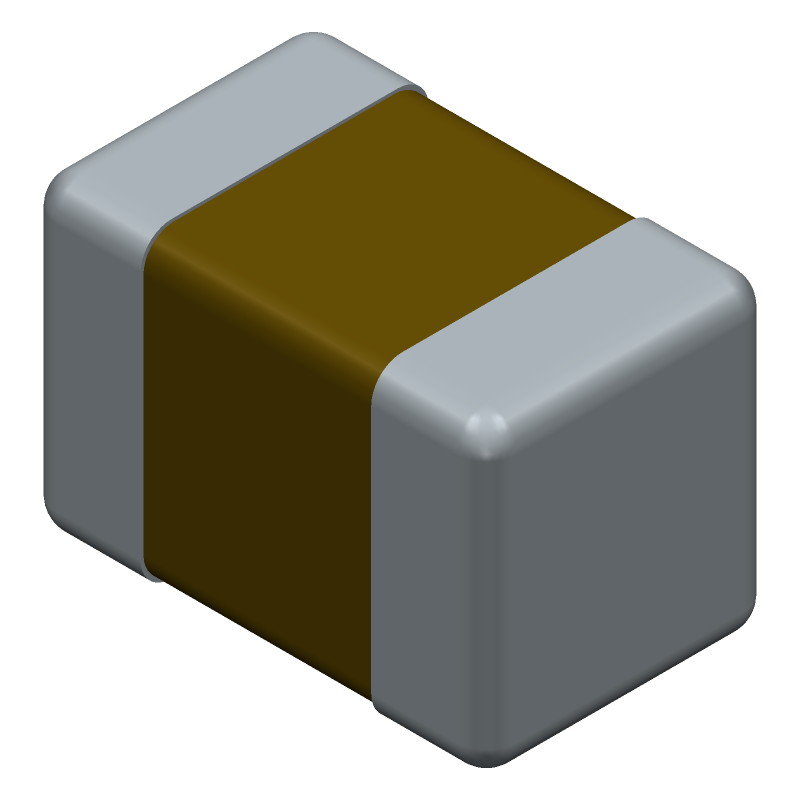

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UMK212F105ZG-T by TAIYO YUDEN
Results Overview of UMK212F105ZG-T by TAIYO YUDEN
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UMK212F105ZG-T Information
UMK212F105ZG-T by TAIYO YUDEN is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for UMK212F105ZG-T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Onlinecomponents.com | Multi Layer Ceramic Capacitor - SMD - 1uF +80/-20% - 50VDC - Y5V - 0805 - Tape&Reel RoHS: Compliant | Alternative Product Available |
|
$0 | Buy Now |
|
|
Bristol Electronics | 896 |
|
RFQ | ||
|
|
Bristol Electronics | 533 |
|
RFQ | ||
|
|
Quest Components | CAPACITOR, CERAMIC, MULTILAYER, 50 V, Y5V, 1 UF, SURFACE MOUNT, 0805 | 1035 |
|
$0.0392 / $0.0872 | Buy Now |
|
|
Quest Components | CAPACITOR, CERAMIC, MULTILAYER, 50 V, Y5V, 1 UF, SURFACE MOUNT, 0805 | 26 |
|
$0.4500 / $1.0000 | Buy Now |
|
DISTI #
SMC-UMK212F105ZG-T
|
Sensible Micro Corporation | Capacitor, Ceramic, Multilayer, 50 V, Y5V, 1 Uf, Surface Mount, 0805 RoHS: Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Date Code: 2010+ Container: Tape & Reel | 2971 |
|
$0.3060 / $0.3315 | RFQ |
|
|
Velocity Electronics | Our Stock | 36862 |
|
RFQ |
Part Details for UMK212F105ZG-T
UMK212F105ZG-T CAD Models
UMK212F105ZG-T Part Data Attributes
|
|
UMK212F105ZG-T
TAIYO YUDEN
Buy Now
Datasheet
|
Compare Parts:
UMK212F105ZG-T
TAIYO YUDEN
Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 1uF, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TAIYO YUDEN CO LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Samacsys Manufacturer | TAIYO YUDEN | |
| Capacitance | 1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.25 mm | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Positive Tolerance | 80% | |
| Rated (DC) Voltage (URdc) | 50 V | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | Y5V | |
| Temperature Coefficient | -82/+22% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
Alternate Parts for UMK212F105ZG-T
This table gives cross-reference parts and alternative options found for UMK212F105ZG-T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UMK212F105ZG-T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| C0805C105Z5VACTU | KEMET Corporation | $0.3314 | Capacitor, Ceramic, Chip, General Purpose, 1uF, 50V, +80-20%, Y5V, 0805 (2012 mm), -30º ~ +85ºC, 7" Reel/Unmarked | UMK212F105ZG-T vs C0805C105Z5VACTU |
| C2012Y5V105ZGPS | Darfon Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 1uF, Surface Mount, 0805, CHIP, GREEN | UMK212F105ZG-T vs C2012Y5V105ZGPS |
| C0805C105Z5VAC7215 | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 1uF, Surface Mount, 0805, CHIP | UMK212F105ZG-T vs C0805C105Z5VAC7215 |
| C0805C105Z5VAC7210 | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22ppm/Cel TC, 1uF, 0805, | UMK212F105ZG-T vs C0805C105Z5VAC7210 |
| C2012Y5V1H105Z/1.25 | TDK Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, Y5V, -82/+22ppm/Cel TC, 1uF, 0805 | UMK212F105ZG-T vs C2012Y5V1H105Z/1.25 |
| C0805C105Z5VAC | KEMET Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 1uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT | UMK212F105ZG-T vs C0805C105Z5VAC |
| C2012Y5V105ZGES | Darfon Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 1uF, Surface Mount, 0805, CHIP, GREEN | UMK212F105ZG-T vs C2012Y5V105ZGES |
| CC0805ZFY5V9BB105 | YAGEO Corporation | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22% TC, 1uF, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT | UMK212F105ZG-T vs CC0805ZFY5V9BB105 |
| C0805Y105Z050RY | Holy Stone Enterprise Co Ltd | Check for Price | Ceramic Capacitor, Ceramic, | UMK212F105ZG-T vs C0805Y105Z050RY |
| C0805Y105Z050R | Holy Stone Enterprise Co Ltd | Check for Price | Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Y5V, -82/+22ppm/Cel TC, 1uF, 0805, | UMK212F105ZG-T vs C0805Y105Z050R |
UMK212F105ZG-T Frequently Asked Questions (FAQ)
-
The recommended land pattern for UMK212F105ZG-T is a rectangular pad with a size of 2.5mm x 1.6mm, with a non-solder mask defined (NSMD) pad shape.
-
UMK212F105ZG-T is a moisture-sensitive device. It is recommended to store it in a dry environment (less than 20% RH) and bake it at 125°C for 24 hours before reflow soldering.
-
The maximum reflow temperature for UMK212F105ZG-T is 260°C, with a peak temperature of 250°C for a maximum of 10 seconds.
-
Yes, UMK212F105ZG-T is designed to withstand high-vibration environments. However, it is recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and soldering.
-
To ensure the reliability of UMK212F105ZG-T in a high-temperature environment, it is recommended to follow the manufacturer's guidelines for temperature derating and to ensure proper thermal management, such as using a heat sink or thermal interface material.
