Capacitors / Aluminum Electrolytic Capacitors / ULV2G6R8MNL1GS
Datasheets
ULV2G6R8MNL1GS by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Aluminum (wet)

Part Details for ULV2G6R8MNL1GS by Nichicon Corporation

Results Overview of ULV2G6R8MNL1GS by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

ULV2G6R8MNL1GS Information

ULV2G6R8MNL1GS by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for ULV2G6R8MNL1GS

Part # Distributor Description Stock Price Buy
DISTI # 44X4778
Newark Smt - Small Chip/ Tp&reel |Nichicon ULV2G6R8MNL1GS RoHS: Not Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.5910
  • 1,000 $0.5680
  • 2,000 $0.5150
  • 4,000 $0.4630
  • 6,000 $0.4460
  • 10,000 $0.4370
$0.4370 / $0.5910 Buy Now
DISTI # 493-6743-1-ND
DigiKey CAP ALUM 6.8UF 20% 400V SMD Min Qty: 1 Lead time: 24 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 247
In Stock
  • 1 $1.5400
  • 10 $0.9940
  • 50 $0.7676
  • 100 $0.6960
  • 500 $0.5728
  • 1,000 $0.5340
  • 1,500 $0.5144
  • 2,500 $0.4925
  • 3,500 $0.4797
  • 5,000 $0.4673
  • 12,500 $0.4404
$0.4404 / $1.5400 Buy Now
DISTI # 647-ULV2G6R8MNL1GS
Mouser Electronics Aluminum Electrolytic Capacitors - SMD 400V 6.8uF 105C AEC-Q200 RoHS: Compliant 6106
  • 1 $1.3400
  • 10 $0.7970
  • 100 $0.6920
  • 500 $0.6030
  • 1,000 $0.5260
  • 2,500 $0.5250
  • 5,000 $0.5000
  • 10,000 $0.4650
$0.4650 / $1.3400 Buy Now
DISTI # 73926689
RS CAPACITOR LYTIC SMD LV SERIES 400V 6.8UF Min Qty: 500 Package Multiple: 1 Lead time: 10 Weeks, 0 Days Container: Bulk 0
  • 500 $1.0300
$1.0300 RFQ
Future Electronics ULV Series 400 V 6.8 uF 105°C 10 KHs SMT Aluminum Electrolytic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 24 Weeks Container: Reel 500
Reel
  • 500 $0.4200
  • 1,000 $0.4150
  • 1,500 $0.4100
  • 2,500 $0.4000
$0.4000 / $0.4200 Buy Now
DISTI # 65079096
Verical Cap Aluminum Lytic 6.8uF 400V 20% (10 X 10mm) SMD 0.05A 10000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 63 Package Multiple: 1 Americas - 4350
  • 63 $0.6110
  • 100 $0.5700
  • 200 $0.5440
  • 500 $0.5340
  • 1,000 $0.4560
  • 2,000 $0.4450
  • 4,000 $0.4000
$0.4000 / $0.6110 Buy Now
DISTI # ULV2G6R8MNL1GS
TTI Aluminum Electrolytic Capacitors - SMD 400V 6.8uF 105C AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 1500
In Stock
  • 500 $0.4230
  • 1,000 $0.4150
  • 1,500 $0.4070
  • 2,500 $0.3990
$0.3990 / $0.4230 Buy Now
Future Electronics ULV Series 400 V 6.8 uF 105�C 10 KHs SMT Aluminum Electrolytic Capacitor Min Qty: 500 Package Multiple: 500 500
null
  • 500 $0.6650
  • 1,000 $0.6500
$0.6500 / $0.6650 Buy Now
DISTI # ULV2G6R8MNL1GS
TME Capacitor: electrolytic, SMD, 6.8uF, 400VDC, Ø10x10mm, ±20%, 10000h Min Qty: 500 0
  • 500 $0.4700
$0.4700 RFQ
DISTI # ULV2G6R8MNL1GS
Avnet Abacus Aluminum Electrolytic Capacitor 68 uF 400 V 20 10000 hours 105C Radial Can SMD (Alt: ULV2G6R8MNL1GS) RoHS: Compliant Min Qty: 8000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # ULV2G6R8MNL1GS
Chip One Stop Passives RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 4350
  • 1 $1.1300
  • 10 $0.6470
  • 50 $0.6110
  • 100 $0.5700
  • 200 $0.5440
  • 500 $0.5340
  • 1,000 $0.4560
  • 2,000 $0.4450
  • 4,000 $0.4000
  • 8,000 $0.3930
$0.3930 / $1.1300 Buy Now

Part Details for ULV2G6R8MNL1GS

ULV2G6R8MNL1GS CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

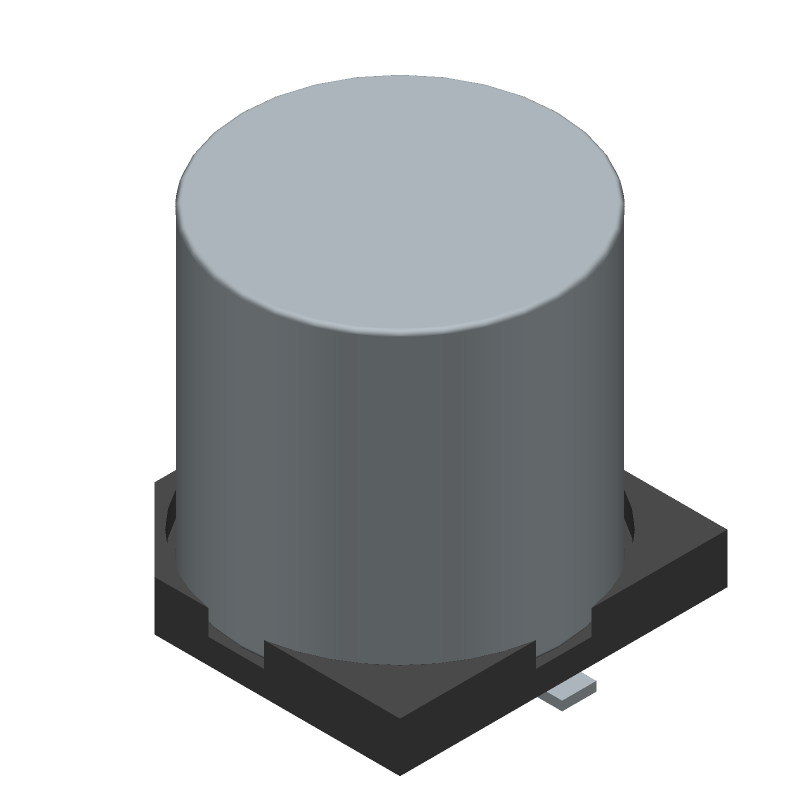

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ULV2G6R8MNL1GS Part Data Attributes

Parametric Data
ULV2G6R8MNL1GS Nichicon Corporation
Buy Now Datasheet
Compare Parts:
ULV2G6R8MNL1GS Nichicon Corporation Aluminum Electrolytic Capacitor, Aluminum (wet)
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NICHICON CORP
Package Description CHIP
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Capacitance 6.8 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 10 mm
Dielectric Material ALUMINUM (WET)
Height 10 mm
Leakage Current 0.2088 mA
Length 10.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Package Style SMT
Packing Method TR, 15 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 400 V
Reference Standard AEC-Q200
Ripple Current 50 mA
Size Code 4141
Surface Mount YES
Tan Delta 0.25
Terminal Shape FLAT
Width 10.3 mm

ULV2G6R8MNL1GS Related Parts

ULV2G6R8MNL1GS Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.

  • Yes, the ULV2G6R8MNL1GS is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration environments.

  • The ULV2G6R8MNL1GS is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for specific temperature derating curves.

  • Yes, the ULV2G6R8MNL1GS meets the requirements for automotive applications, including AEC-Q200 qualification and compliance with ISO/TS 16949.

  • Yes, the ULV2G6R8MNL1GS is designed to withstand humid environments, with a moisture resistance rating of 85°C, 85% RH, 1000 hours.
