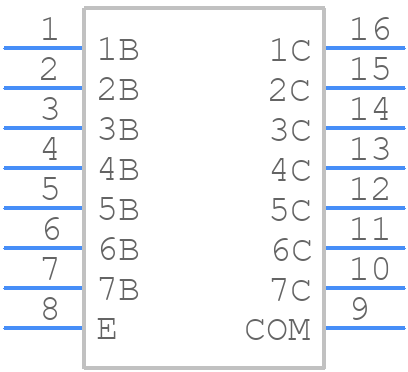

Part Symbol
-
Footprint
-

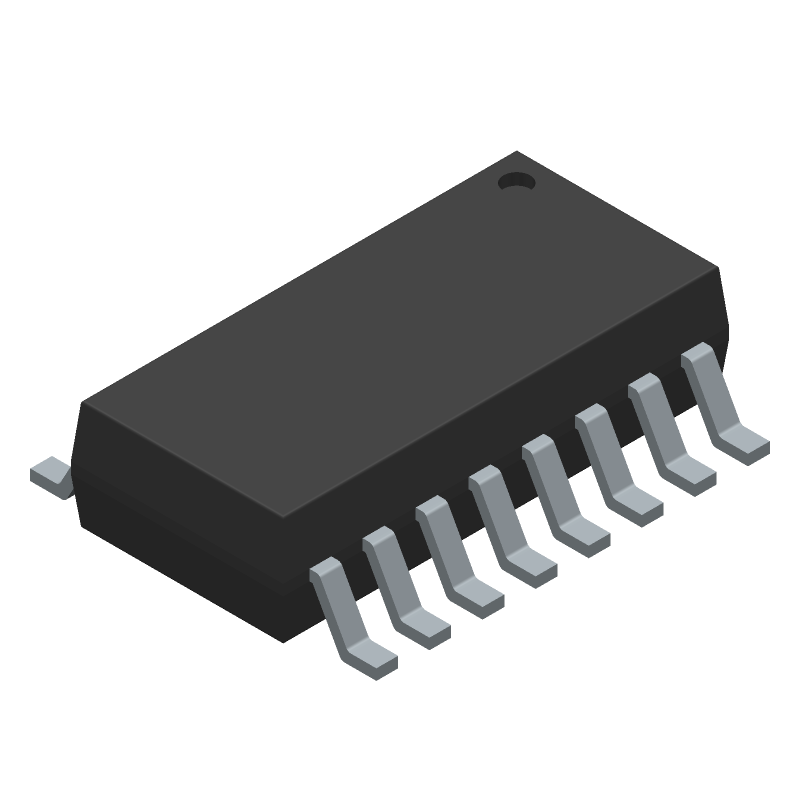

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ULN2003ADYYR by Texas Instruments
Results Overview of ULN2003ADYYR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ULN2003ADYYR Information
ULN2003ADYYR by Texas Instruments is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for ULN2003ADYYR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-ULN2003ADYYRCT-ND
|
DigiKey | TRANS 7NPN DARL 50V 500MA 16-SOT Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1517 In Stock |
|
$0.0861 / $0.2400 | Buy Now |
|
DISTI #
595-ULN2003ADYYR
|
Mouser Electronics | Darlington Transistors 50V 7-ch darlington transistor array RoHS: Compliant | 5341 |
|
$0.0840 / $0.3900 | Buy Now |
Part Details for ULN2003ADYYR
ULN2003ADYYR CAD Models
ULN2003ADYYR Part Data Attributes
|
|
ULN2003ADYYR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
ULN2003ADYYR
Texas Instruments
50V 7-ch darlington transistor array 16-SOT-23-THIN -40 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Built-in Protections | TRANSIENT | |
| Driver Number of Bits | 7 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 4.2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | OPEN-COLLECTOR | |
| Output Current Flow Direction | SINK | |
| Output Current-Max | 0.5 A | |
| Output Peak Current Limit-Nom | 0.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.12,20 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.1 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Turn-off Time | 1 µs | |
| Turn-on Time | 1 µs | |
| Width | 2 mm |
