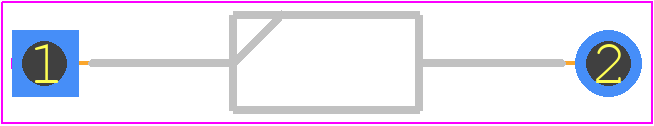

Footprint
-

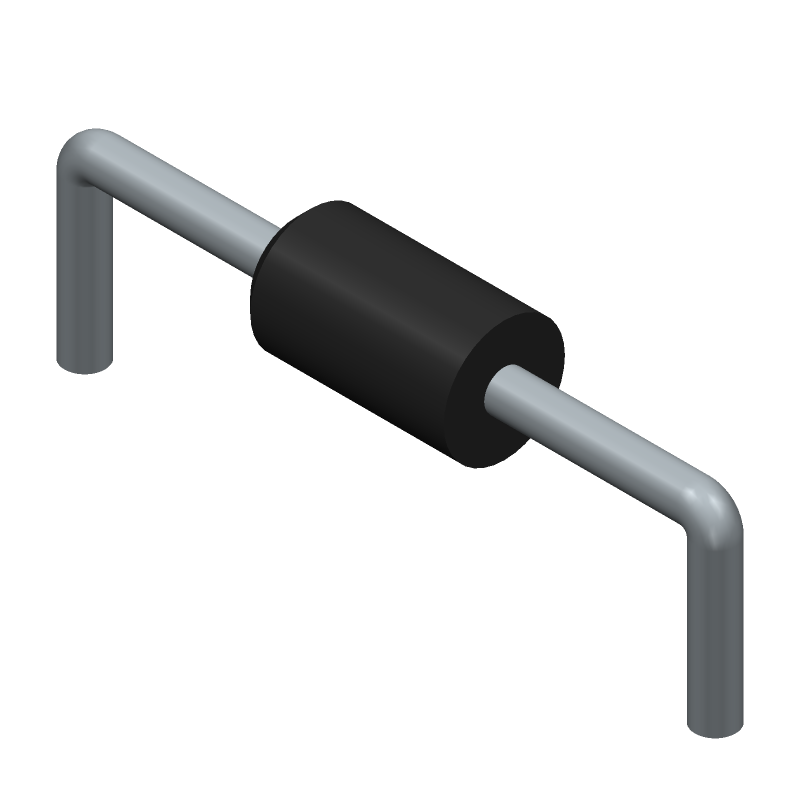

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UF4007GP-AP by Micro Commercial Components
Results Overview of UF4007GP-AP by Micro Commercial Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UF4007GP-AP Information
UF4007GP-AP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for UF4007GP-AP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-UF4007GP-APCT-ND
|
DigiKey | DIODE STANDARD 1000V 1A DO41 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
680 In Stock |
|
$0.0254 / $0.2300 | Buy Now |
|
DISTI #
833-UF4007GP-AP
|
Mouser Electronics | Rectifiers Super Fast Recovery Rectifiers RoHS: Compliant | 3241 |
|
$0.0300 / $0.2300 | Buy Now |
Part Details for UF4007GP-AP
UF4007GP-AP CAD Models
UF4007GP-AP Part Data Attributes
|
|
UF4007GP-AP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
UF4007GP-AP
Micro Commercial Components
Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, ROHS COMPLIANT, PLASTIC PACKAGE-2
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | DO-41 | |
| Package Description | PACKAGE-2 | |
| Pin Count | 2 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.7 V | |
| JEDEC-95 Code | DO-41 | |
| JESD-30 Code | O-PALF-W2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 30 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Output Current-Max | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 1000 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Recovery Time-Max | 0.075 µs | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | WIRE | |
| Terminal Position | AXIAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
Alternate Parts for UF4007GP-AP
This table gives cross-reference parts and alternative options found for UF4007GP-AP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UF4007GP-AP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UF4007GPL-BP | Micro Commercial Components | Check for Price | Rectifier Diode, | UF4007GP-AP vs UF4007GPL-BP |
| 1N4007 | Solitron Devices Inc | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, MINIATURE PACKAGE-2 | UF4007GP-AP vs 1N4007 |
| 1N4007RL | onsemi | Check for Price | Standard Rectifier, 1000 V, 1.0 A, Axial Lead 5.20x2.70mm, 25.4x0.71mm Pkg, Lead len/dia, 5000-REEL | UF4007GP-AP vs 1N4007RL |
| 1N4007G | American Power Devices Inc | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM) | UF4007GP-AP vs 1N4007G |
| UF4007 | Changzhou Starsea Electronics Co Ltd | Check for Price | Rectifier Diode | UF4007GP-AP vs UF4007 |
| UF4007 | Jinan Gude Electronic Device Co Ltd | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM) | UF4007GP-AP vs UF4007 |
| UF4007T&A | Continental Device India Ltd | Check for Price | Rectifier Diode, | UF4007GP-AP vs UF4007T&A |
| UF4007 | SEMIKRON | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-204AL, PLASTIC, DO-41, 2 PIN | UF4007GP-AP vs UF4007 |
| MUR1100 | Microsemi Corporation | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM) | UF4007GP-AP vs MUR1100 |
| 1N4007 | Taiwan Semiconductor | Check for Price | Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-41, GREEN, PLASTIC PACKAGE-2 | UF4007GP-AP vs 1N4007 |
UF4007GP-AP Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 250°C to 260°C, and the recommended soldering time is 2 to 3 seconds. However, it's always best to follow the specific soldering guidelines provided by the manufacturer or the PCB assembly house.
-
While the UF4007GP-AP is a fast-switching diode, it's not specifically designed for high-frequency switching applications. For high-frequency applications, it's recommended to use a diode with a lower reverse recovery time (trr) and a higher switching speed, such as a Schottky diode or a fast-recovery diode.
-
The UF4007GP-AP has a maximum operating junction temperature of 150°C. While it can operate in high-temperature environments, it's essential to ensure that the device is properly derated to prevent overheating and reduce the risk of thermal runaway.
-
The UF4007GP-AP is not specifically designed for automotive applications, which require more stringent reliability and quality standards. For automotive applications, it's recommended to use a diode that meets the AEC-Q101 or AEC-Q200 standards, such as the UF4007GP-AQ or similar devices.
-
While it's possible to use multiple UF4007GP-AP diodes in parallel to increase the current rating, it's essential to ensure that the diodes are properly matched and that the current sharing is balanced to prevent overheating and reduce the risk of thermal runaway.
