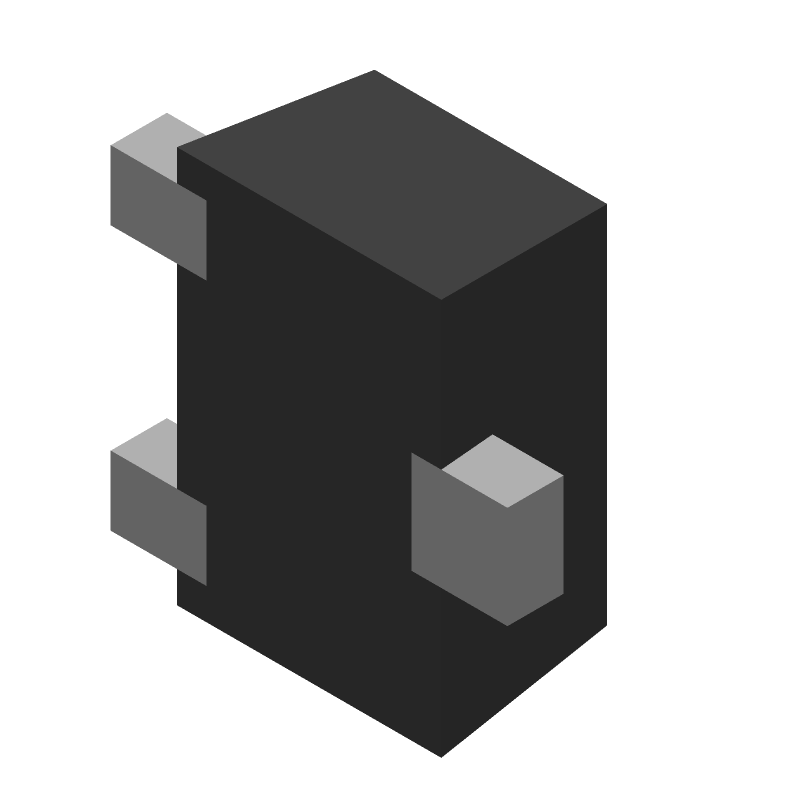

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UESD3.3DT5G by onsemi
Results Overview of UESD3.3DT5G by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
UESD3.3DT5G Information
UESD3.3DT5G by onsemi is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for UESD3.3DT5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
81Y7511
|
Newark | Diode, Esd Protection, Sot-723, Clamping Voltage Vc Max:6.5V, Diode Case Style:Sot-723, No. Of Pins:3Pins, Operating Voltage:3.3V, Power Dissipation Pd:240Mw, Product Range:Μesd Series, Automotive Qualification Standard:Aec-Q101, Rohs Compliant: Yes |Onsemi UESD3.3DT5G RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 5208 |
|
$0.1690 / $0.3500 | Buy Now |
|
DISTI #
42K2727
|
Newark | Tvs Diode Array, 3.3V, Sot-723, Full Reel, Clamping Voltage Vc Max:6.5V, Diode Case Style:Sot-723, No. Of Pins:3Pins, Operating Voltage:-, Power Dissipation Pd:240Mw, Product Range:-, Automotive Qualification Standard:- Rohs Compliant: Yes |Onsemi UESD3.3DT5G RoHS: Compliant Min Qty: 8000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0740 / $0.0990 | Buy Now |
|
DISTI #
UESD3.3DT5GOSCT-ND
|
DigiKey | TVS DIODE 3.3VWM SOT723 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
23051 In Stock |
|
$0.0784 / $0.4200 | Buy Now |
|
DISTI #
UESD3.3DT5G
|
Avnet Americas | ESD Protection Device, 6.5 V, SOT-723, 3 Pins, 3.3 V, 240 mW, ?ESD - Tape and Reel (Alt: UESD3.3DT5G) RoHS: Compliant Min Qty: 16000 Package Multiple: 8000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.0645 / $0.0718 | Buy Now |
|
DISTI #
863-UESD3.3DT5G
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes ZEN ESD PROTECT RoHS: Compliant | 234240 |
|
$0.0800 / $0.4100 | Buy Now |
|
DISTI #
E02:0323_00188183
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 3.3V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 8000 Package Multiple: 8000 Lead time: 10 Weeks Date Code: 2510 | Europe - 8000 |
|
$0.0717 / $0.0795 | Buy Now |
|
DISTI #
V72:2272_07305114
|
Arrow Electronics | ESD Suppressor Diode TVS Uni-Dir 3.3V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2406 Container: Cut Strips | Americas - 7600 |
|
$0.0718 / $0.3489 | Buy Now |
|
|
Onlinecomponents.com | ESD Protection Common Anode Diodes RoHS: Compliant | 0 |
|
$0.0661 / $0.0757 | Buy Now |
|
DISTI #
87893106
|
Verical | ESD Suppressor Diode TVS Uni-Dir 3.3V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 343 Package Multiple: 1 | Americas - 7995 |
|
$0.0916 / $0.3090 | Buy Now |
|
DISTI #
77829468
|
Verical | ESD Suppressor Diode TVS Uni-Dir 3.3V 3-Pin SOT-723 T/R RoHS: Compliant Min Qty: 82 Package Multiple: 1 Date Code: 2406 | Americas - 7600 |
|
$0.0718 / $0.2165 | Buy Now |
Part Details for UESD3.3DT5G
UESD3.3DT5G CAD Models
UESD3.3DT5G Part Data Attributes
|
|
UESD3.3DT5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
UESD3.3DT5G
onsemi
ESD Protection Common Anode Diodes, SOT-723 3 LEAD, 8000-REEL
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOT-723 3 LEAD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 631AA | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Breakdown Voltage-Min | 5 V | |
| Configuration | COMMON ANODE, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-F3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.24 W | |
| Qualification Status | Not Qualified | |
| Rep Pk Reverse Voltage-Max | 3.3 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
