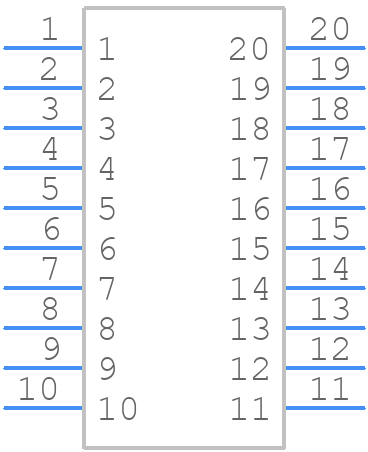

Part Symbol
-

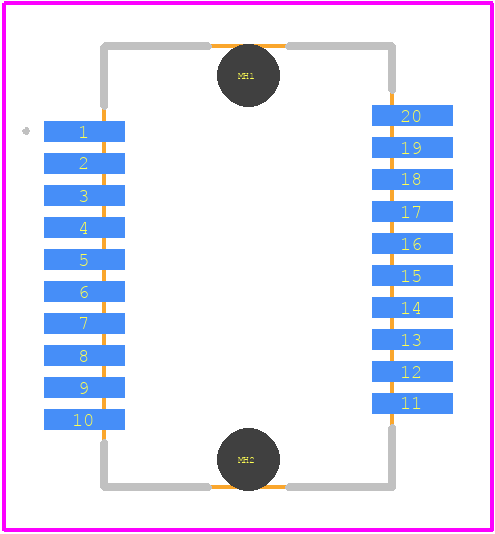

Footprint
-

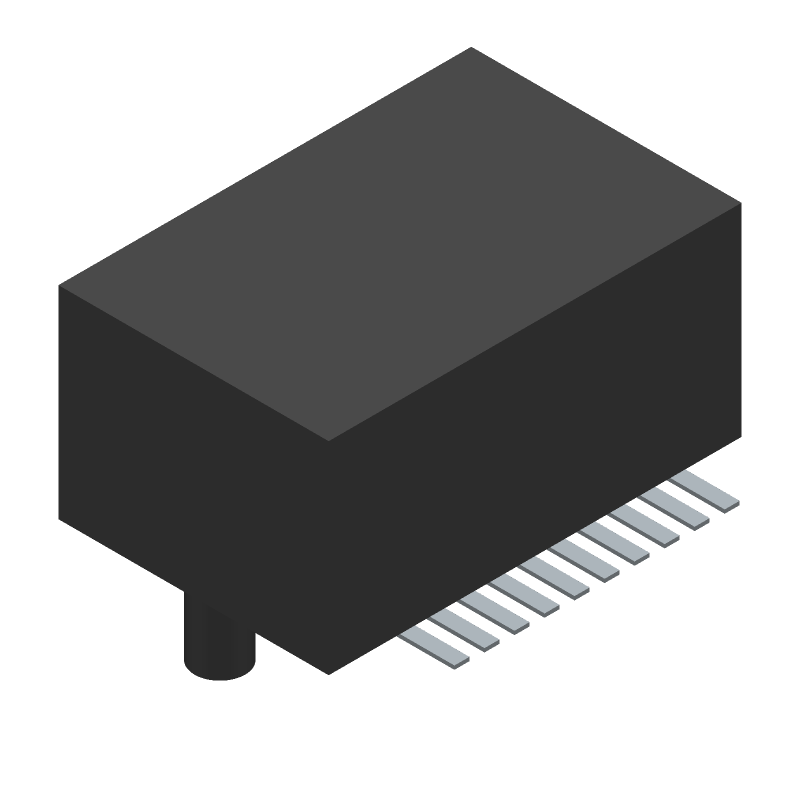

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UE75-A20-3000T by Amphenol Corporation
Results Overview of UE75-A20-3000T by Amphenol Corporation
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UE75-A20-3000T Information
UE75-A20-3000T by Amphenol Corporation is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| UE75A203000T | Amphenol Communications Solutions | SFP CONNECTOR ROHS | |
| UE75A303000T | Amphenol Communications Solutions | XFP CONNECTOR ROHS | |
| UE75A202000T | Amphenol Communications Solutions | SFP CONNECTOR ROHS |
Price & Stock for UE75-A20-3000T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
523-UE75-A20-3000T
|
Mouser Electronics | I/O Connectors SFP CONNECTOR 30 U" GOLD RoHS: Compliant | 6610 |
|
$0.7470 / $1.3400 | Buy Now |
|
DISTI #
UE75-A20-3000T
|
Avnet Abacus | Pluggable IO Connector SFP 20 Contacts 1 x 1 Port Surface Mount Right Angle UE75 Series - Tape and Reel (Alt: UE75-A20-3000T) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 16 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for UE75-A20-3000T
UE75-A20-3000T CAD Models
UE75-A20-3000T Part Data Attributes
|
|
UE75-A20-3000T
Amphenol Corporation
Buy Now
Datasheet
|
Compare Parts:
UE75-A20-3000T
Amphenol Corporation
Telecom and Datacom Connector, 20 Contact(s), Female, Right Angle, Surface Mount Terminal, Receptacle, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Amphenol | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | TELECOM AND DATACOM CONNECTOR | |
| Contact Finish Mating | GOLD (30) | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | FEMALE | |
| Contact Material | PHOSPHOR BRONZE | |
| DIN Conformance | NO | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Option | GENERAL PURPOSE | |
| Shell Material | LIQUID CRYSTAL POLYMER | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 20 | |
| UL Flammability Code | 94V-0 |
UE75-A20-3000T Frequently Asked Questions (FAQ)
-
The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the UE75-A20-3000T connector.
-
Yes, the UE75-A20-3000T connector is designed to withstand high-vibration environments and is suitable for applications such as aerospace, defense, and industrial systems.
-
Yes, the UE75-A20-3000T connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
-
The UE75-A20-3000T connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
-
Yes, the UE75-A20-3000T connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in European Union countries.
