UDZVFHTE-1739B Information
UDZVFHTE-1739B by ROHM Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for UDZVFHTE-1739B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y8640
|
Newark | Zener Diode, 39V, Sod-323Fl, Zener Voltage Vz Typ:39V, Power Dissipation Pd:200Mw, Diode Case Style:Sod-323Fl, Zener Tolerance ±:-, No. Of Pins:2Pins, Operating Temperature Max:150°C, Product Range:Udzvf Series, Automotive Rohs Compliant: Yes |Rohm UDZVFHTE-1739B RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.0730 / $0.3000 | Buy Now |
|
DISTI #
UDZVFHTE-1739BCT-ND
|
DigiKey | DIODE ZENER 39V 200MW UMD2 Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1745 In Stock |
|
$0.0295 / $0.2500 | Buy Now |
|
DISTI #
755-UDZVFHTE-1739B
|
Mouser Electronics | Zener Diodes 38.02-39.98V 2mA SOD-323FL, UMD2 | 6140 |
|
$0.0330 / $0.2500 | Buy Now |
|
DISTI #
62387514
|
Verical | Zener Diode Single 39V 3% 300Ohm 200mW Automotive 2-Pin UMD T/R RoHS: Compliant Min Qty: 1924 Package Multiple: 1 Date Code: 2201 | Americas - 2336 |
|
$0.0380 | Buy Now |
|
DISTI #
UDZVFHTE-1739B
|
Avnet Silica | 200mW 39V SOD323FL Zener Diode for Automotive (Alt: UDZVFHTE-1739B) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 15 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
LCSC | Independent Type 38.02V39.98V 200mW 39V SOD-323FL Zener Diodes ROHS | 2690 |
|
$0.0751 / $0.1012 | Buy Now |
Part Details for UDZVFHTE-1739B

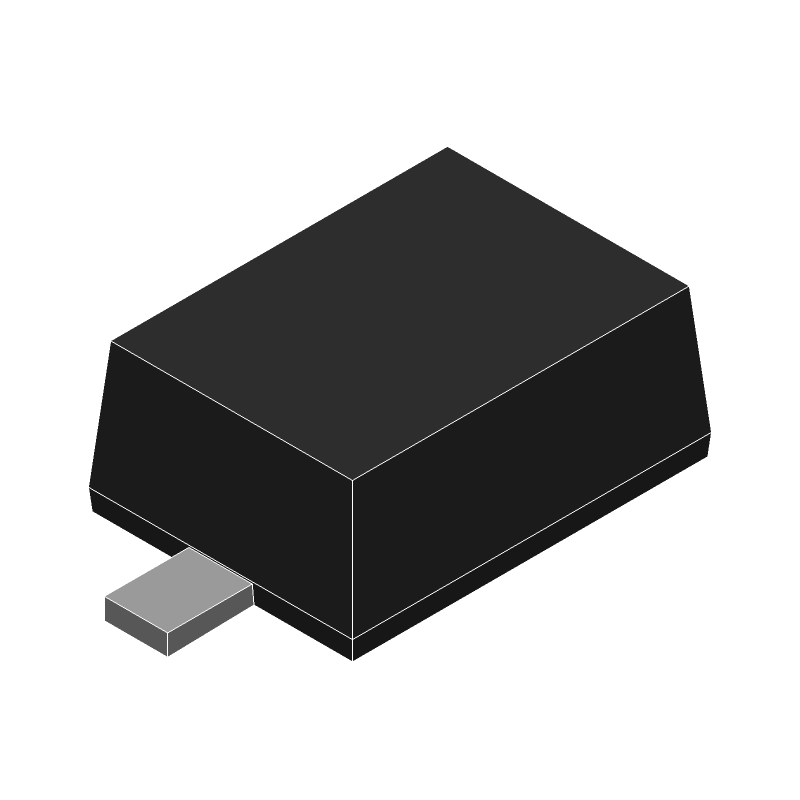

UDZVFHTE-1739B CAD Models
UDZVFHTE-1739B Part Data Attributes
|
|
UDZVFHTE-1739B
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
UDZVFHTE-1739B
ROHM Semiconductor
Zener Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | HIGH RELIABILITY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.2 W | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 39 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Tol-Max | 2.51% | |
| Working Test Current | 2 mA |
