Capacitors / Fixed Capacitors / UCZ1H561MNS1MS
Datasheets

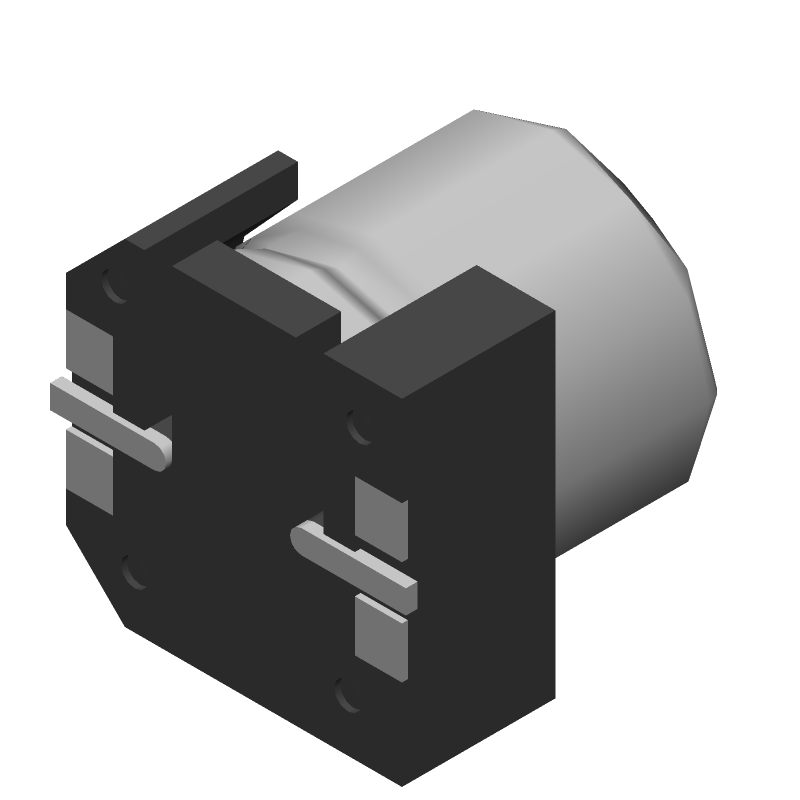

UCZ1H561MNS1MS by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 560uF, Surface Mount, 6767, CHIP

Part Details for UCZ1H561MNS1MS by Nichicon Corporation

Results Overview of UCZ1H561MNS1MS by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

UCZ1H561MNS1MS Information

UCZ1H561MNS1MS by Nichicon Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UCZ1H561MNS1MS

Part # Distributor Description Stock Price Buy
DISTI # 48AJ6936
Newark Smt - Small Chip/ Tp&reel |Nichicon UCZ1H561MNS1MS RoHS: Not Compliant Min Qty: 125 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $1.4500
  • 500 $1.3100
  • 1,000 $1.1400
  • 2,500 $1.0200
$1.0200 / $1.4500 Buy Now
DISTI # UCZ1H561MNS1CT-ND
DigiKey CAP ALUM 560UF 20% 50V SMD Min Qty: 1 Lead time: 45 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2377
In Stock
  • 1 $2.8600
  • 10 $1.9100
  • 50 $1.5138
  • 125 $1.3534
  • 250 $1.2556
  • 375 $1.2062
  • 625 $1.1512
  • 875 $1.1188
  • 1,250 $1.0876
  • 3,125 $1.0197
  • 6,250 $0.9847
$0.9847 / $2.8600 Buy Now
DISTI # 647-UCZ1H561MNS1MS
Mouser Electronics Aluminum Electrolytic Capacitors - SMD 50V 560uf 20% SMD, high vibration RoHS: Compliant 221
  • 1 $2.7300
  • 10 $1.9600
  • 50 $1.6000
  • 125 $1.4500
  • 250 $1.2900
  • 500 $1.1900
  • 1,000 $1.1600
  • 2,500 $1.0800
  • 5,000 $1.0200
$1.0200 / $2.7300 Buy Now
DISTI # UCZ1H561MNS1MS
Avnet Abacus Aluminum Electrolytic Capacitor 560 uF 50 V 20 3500 hours 125C Radial Can SMD (Alt: UCZ1H561MNS1MS) RoHS: Compliant Min Qty: 625 Package Multiple: 625 Lead time: 48 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for UCZ1H561MNS1MS

UCZ1H561MNS1MS Part Data Attributes

Parametric Data
UCZ1H561MNS1MS Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UCZ1H561MNS1MS Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 560uF, Surface Mount, 6767, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NICHICON CORP
Package Description CHIP
Reach Compliance Code not_compliant
Samacsys Manufacturer Nichicon
Additional Feature ESR IS MEASURED AT 100 KHZ
Capacitance 560 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 16 mm
Dielectric Material ALUMINUM (WET)
ESR 80 mΩ
Height 16.5 mm
Leakage Current 0.28 mA
Length 17.1 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Style SMT
Packing Method TR, 13 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 50 V
Reference Standard AEC-Q200
Ripple Current 1000 mA
Size Code 6767
Surface Mount YES
Tan Delta 0.16
Terminal Shape FLAT
Width 17.1 mm

UCZ1H561MNS1MS Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.

  • Yes, the UCZ1H561MNS1MS capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.

  • The ESR of the UCZ1H561MNS1MS capacitor is typically around 0.15 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.

  • Yes, the UCZ1H561MNS1MS capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.

  • The shelf life of the UCZ1H561MNS1MS capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.
