Capacitors / Aluminum Electrolytic Capacitors / UCV1V471MNL1GS
Datasheets
UCV1V471MNL1GS by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 470uF, 3333

Part Details for UCV1V471MNL1GS by Nichicon Corporation

Results Overview of UCV1V471MNL1GS by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

UCV1V471MNL1GS Information

UCV1V471MNL1GS by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UCV1V471MNL1GS

Part # Distributor Description Stock Price Buy
DISTI # 48AJ6797
Newark Smt - Small Chip/ Tp&reel |Nichicon UCV1V471MNL1GS RoHS: Not Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $0.5540
  • 1,000 $0.4760
  • 2,500 $0.4390
$0.4390 / $0.5540 Buy Now
DISTI # 493-14356-1-ND
DigiKey CAP ALUM 470UF 20% 35V SMD Min Qty: 1 Lead time: 21 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 35
In Stock
  • 1 $1.4700
  • 10 $0.9530
  • 50 $0.7342
  • 100 $0.6653
  • 500 $0.5465
  • 1,000 $0.5091
  • 1,500 $0.4902
  • 2,500 $0.4692
  • 3,500 $0.4568
  • 5,000 $0.4449
  • 12,500 $0.4189
$0.4189 / $1.4700 Buy Now
DISTI # 647-UCV1V471MNL1GS
Mouser Electronics Aluminum Electrolytic Capacitors - SMD 470uF 35V 20% AEC-Q200 RoHS: Compliant 0
  • 1 $1.2800
  • 10 $0.7000
  • 100 $0.6340
  • 500 $0.5200
  • 1,000 $0.4660
  • 2,500 $0.4360
  • 5,000 $0.4230
  • 10,000 $0.3990
$0.3990 / $1.2800 Order Now
DISTI # V72:2272_17571628
Arrow Electronics Cap Aluminum Lytic 470uF 35V 20% (8 X 10mm) SMD 0.85A 2000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks Date Code: 2344 Container: Cut Strips Americas - 3
  • 1 $0.3821
$0.3821 Buy Now
DISTI # 79330726
Verical Cap Aluminum Lytic 470uF 35V 20% (8 X 10mm) SMD 0.85A 2000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 53 Package Multiple: 1 Americas - 163
  • 53 $0.5930
  • 100 $0.5900
$0.5900 / $0.5930 Buy Now
DISTI # UCV1V471MNL1GS
TME Capacitor: electrolytic, low ESR, SMD, 470uF, 35VDC, Ø8x10mm, ±20% Min Qty: 1 0
  • 1 $1.3650
  • 10 $0.8060
  • 100 $0.6110
  • 1,000 $0.4730
  • 4,000 $0.4390
$0.4390 / $1.3650 RFQ
DISTI # UCV1V471MNL1GS
IBS Electronics RADIAL CAN - SMD ALUMINUM ELECTROLYTIC CAPACITOR UCV 35V 470MUF &#xB1, 20% 0.315DIA 8.00MM Min Qty: 500 Package Multiple: 1 0
  • 500 $0.4680
  • 1,000 $0.4615
  • 1,500 $0.4550
  • 2,500 $0.4550
  • 5,000 $0.4420
$0.4420 / $0.4680 Buy Now
DISTI # UCV1V471MNL1GS
Avnet Abacus Aluminum Electrolytic Capacitor 470 uF 35 V 20 2000 hours 105C Radial Can SMD (Alt: UCV1V471MNL1GS) RoHS: Compliant Min Qty: 8000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # UCV1V471MNL1GS
Avnet Asia Aluminum Electrolytic Capacitor, 470 uF, 35 V, ? 20%, 2000 hours @ 105?C, Radial Can - SMD (Alt: UCV1V471MNL1GS) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days 0
  • 2,000 $0.3930
  • 4,000 $0.3875
  • 6,000 $0.3822
  • 10,000 $0.3770
  • 20,000 $0.3671
  • 50,000 $0.3577
  • 100,000 $0.3488
$0.3488 / $0.3930 Buy Now
Vyrian Capacitors 6961
RFQ

Part Details for UCV1V471MNL1GS

UCV1V471MNL1GS CAD Models

  • Part Symbol

    Part Symbol

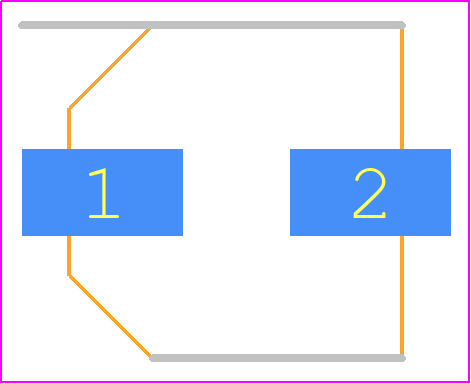

  • Footprint

    footprint

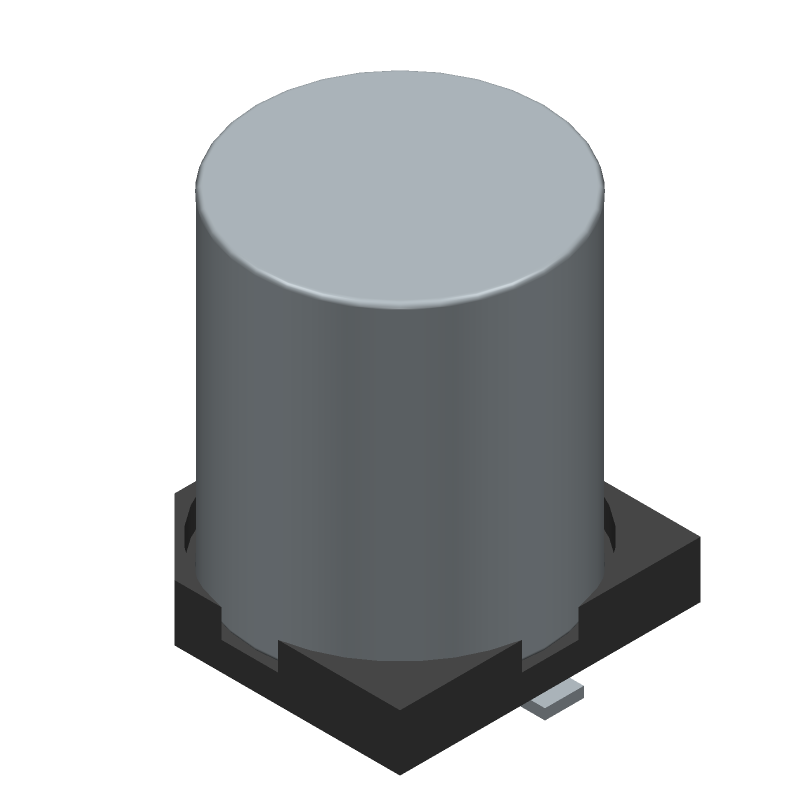

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UCV1V471MNL1GS Part Data Attributes

Parametric Data
UCV1V471MNL1GS Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UCV1V471MNL1GS Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum, 35V, 20% +Tol, 20% -Tol, 470uF, 3333
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NICHICON CORP
Package Description CHIP
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.22.00.20
Samacsys Manufacturer Nichicon
Capacitance 470 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 8 mm
Dielectric Material ALUMINUM (WET)
Height 10 mm
Leakage Current 0.1645 mA
Length 8.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, 15 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 35 V
Reference Standard AEC-Q200
Ripple Current 425 mA
Size Code 3333
Surface Mount YES
Tan Delta 0.12
Terminal Shape FLAT
Width 8.3 mm

UCV1V471MNL1GS Related Parts

UCV1V471MNL1GS Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.

  • Yes, the UCV1V471MNL1GS is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration environments.

  • The UCV1V471MNL1GS is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for derating information.

  • Yes, the UCV1V471MNL1GS meets the requirements of AEC-Q200, making it suitable for use in automotive applications.

  • The UCV1V471MNL1GS is designed to withstand humid environments, but it's recommended to follow the IPC-J-STD-020 standard for moisture sensitivity.
