Capacitors / Aluminum Electrolytic Capacitors / UCM1H331MNL1GS
Datasheets
UCM1H331MNL1GS by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT

Part Details for UCM1H331MNL1GS by Nichicon Corporation

Results Overview of UCM1H331MNL1GS by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

UCM1H331MNL1GS Information

UCM1H331MNL1GS by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UCM1H331MNL1GS

Part # Distributor Description Stock Price Buy
DISTI # 44X4661
Newark Smt - Small Chip/ Tp&reel |Nichicon UCM1H331MNL1GS RoHS: Not Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.4650
  • 1,000 $0.4470
  • 2,000 $0.4060
  • 4,000 $0.3640
  • 6,000 $0.3520
  • 10,000 $0.3440
$0.3440 / $0.4650 Buy Now
DISTI # 493-14535-1-ND
DigiKey CAP ALUM 330UF 20% 50V SMD Min Qty: 1 Lead time: 22 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 17412
In Stock
  • 1 $1.2800
  • 10 $0.8230
  • 50 $0.6306
  • 100 $0.5699
  • 500 $0.4652
  • 1,000 $0.4323
  • 1,500 $0.4156
  • 2,500 $0.3971
  • 3,500 $0.3861
  • 5,000 $0.3756
  • 12,500 $0.3528
  • 25,000 $0.3434
$0.3434 / $1.2800 Buy Now
DISTI # 647-UCM1H331MNL1GS
Mouser Electronics Aluminum Electrolytic Capacitors - SMD 50V 330uF TOL 20% AEC-Q200 RoHS: Compliant 0
  • 1 $1.2100
  • 10 $0.7590
  • 100 $0.6100
  • 500 $0.3890
$0.3890 / $1.2100 Order Now
DISTI # E02:0323_07028090
Arrow Electronics Cap Aluminum Lytic 330uF 50V 20% (10 X 10mm) SMD 0.9A 2000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 2000 Package Multiple: 500 Lead time: 45 Weeks Date Code: 2502 Europe - 36500
  • 2,000 $0.3773
  • 2,500 $0.3091
  • 3,500 $0.3061
  • 5,000 $0.3031
  • 12,500 $0.3000
  • 25,000 $0.2970
$0.2970 / $0.3773 Buy Now
DISTI # 72038179
RS Aluminum Electrolytic Capacitor- 50volts, 330uF SMD, Low Impediance Min Qty: 500 Package Multiple: 1 Container: Bulk 0
  • 500 $0.9500
$0.9500 RFQ
DISTI # 88117744
Verical Cap Aluminum Lytic 330uF 50V 20% (10 X 10mm) SMD 0.9A 2000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Date Code: 2502 Americas - 36000
  • 2,000 $0.4684
$0.4684 Buy Now
DISTI # 30605901
Verical Cap Aluminum Lytic 330uF 50V 20% (10 X 10mm) SMD 0.9A 2000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 92 Package Multiple: 1 Americas - 3250
  • 92 $0.9400
  • 100 $0.7120
  • 200 $0.6050
  • 500 $0.5320
  • 1,000 $0.5040
  • 2,000 $0.4250
$0.4250 / $0.9400 Buy Now
DISTI # UCM1H331MNL1GS
TTI Aluminum Electrolytic Capacitors - SMD 50V 330uF TOL 20% AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 39500
In Stock
  • 500 $0.4430
  • 1,000 $0.4120
  • 1,500 $0.3960
  • 2,500 $0.3710
  • 5,000 $0.3580
  • 12,500 $0.3360
  • 25,000 $0.3230
$0.3230 / $0.4430 Buy Now
Future Electronics CM Series 50 V 330 uF �10 X 10 mm 105�C SMT Aluminum Electrolytic Capacitor Min Qty: 500 Package Multiple: 500 10000
null
  • 500 $0.3200
  • 1,000 $0.3150
  • 2,500 $0.3100
  • 5,000 $0.3050
$0.3050 / $0.3200 Buy Now
DISTI # UCM1H331MNL1GS
TME Capacitor: electrolytic, low ESR, SMD, 330uF, 50VDC, Ø10x10mm, ±20% Min Qty: 500 0
  • 500 $0.3960
$0.3960 RFQ
ComSIT USA ALUMINUM ELECTROLYTIC CAPACITOR Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141 ECCN: EAR99 RoHS: Compliant Stock DE - 0
Stock ES - 0
Stock US - 50000
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # UCM1H331MNL1GS
Avnet Abacus Aluminum Electrolytic Capacitor 330 uF 50 V 20 2000 hours 105C Radial Can SMD (Alt: UCM1H331MNL1GS) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 44 Weeks, 0 Days Abacus - 1000
Buy Now
DISTI # UCM1H331MNL1GS
Chip One Stop Passives RoHS: Compliant Min Qty: 5 Lead time: 0 Weeks, 1 Days Container: Cut Tape 3250
  • 5 $0.9400
  • 10 $0.7120
  • 50 $0.6050
  • 100 $0.5320
  • 200 $0.5040
  • 500 $0.4250
  • 1,000 $0.3750
  • 2,000 $0.3670
  • 4,000 $0.3280
  • 8,000 $0.3230
$0.3230 / $0.9400 Buy Now
LCSC 330uF 50V 450mA120Hz 20% SMDD10xL10.5mm Aluminum Electrolytic Capacitors - SMD ROHS 300
  • 1 $0.4979
  • 10 $0.3983
  • 30 $0.3546
  • 100 $0.3018
  • 500 $0.2776
  • 1,000 $0.2641
$0.2641 / $0.4979 Buy Now
New Advantage Corporation CM Series 50 V 330 uF �10 X 10 mm 105�C SMT Aluminum Electrolytic Capacitor RoHS: Compliant Min Qty: 1 Package Multiple: 500 1000
  • 500 $0.5333
  • 1,000 $0.4923
$0.4923 / $0.5333 Buy Now
Vyrian Capacitors 13469
RFQ
Win Source Electronics CAP ALUM 330UF 20% 50V SMD / 330 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C 47900
  • 155 $0.3763
  • 330 $0.3520
  • 510 $0.3400
  • 735 $0.3157
  • 955 $0.3035
  • 1,190 $0.2914
$0.2914 / $0.3763 Buy Now

Part Details for UCM1H331MNL1GS

UCM1H331MNL1GS CAD Models

  • Part Symbol

    Part Symbol

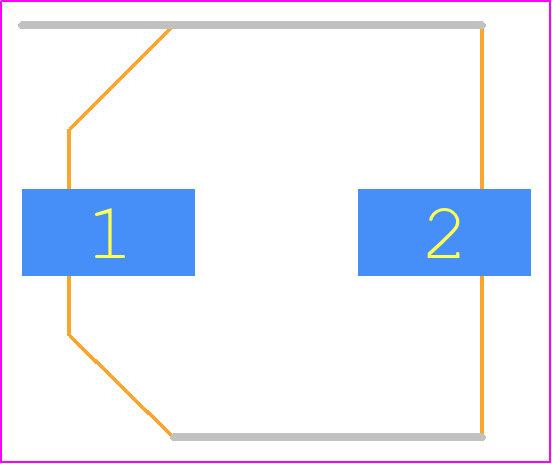

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UCM1H331MNL1GS Part Data Attributes

Parametric Data
UCM1H331MNL1GS Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UCM1H331MNL1GS Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 4141, CHIP, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NICHICON CORP
Package Description CHIP
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Capacitance 330 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 10 mm
Dielectric Material ALUMINUM (WET)
Height 10 mm
JESD-609 Code e3
Leakage Current 0.165 mA
Length 10.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TAPE
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 50 V
Reference Standard AEC-Q200
Ripple Current 450 mA
Size Code 4141
Surface Mount YES
Tan Delta 0.1
Terminal Finish Tin (Sn)
Terminal Shape FLAT
Width 10.3 mm

UCM1H331MNL1GS Related Parts

UCM1H331MNL1GS Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the UCM1H331MNL1GS is 260°C for 3 seconds or less, to prevent damage to the capacitor.

  • Yes, the UCM1H331MNL1GS is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm amplitude, and can be used in high-vibration environments.

  • Yes, the UCM1H331MNL1GS meets the requirements of the AEC-Q200 standard for automotive applications, making it suitable for use in automotive systems.

  • The ESR of the UCM1H331MNL1GS is 0.03Ω or less at 100kHz, making it suitable for high-frequency applications.

  • Yes, the UCM1H331MNL1GS is rated for operation up to 125°C, making it suitable for use in high-temperature environments.
