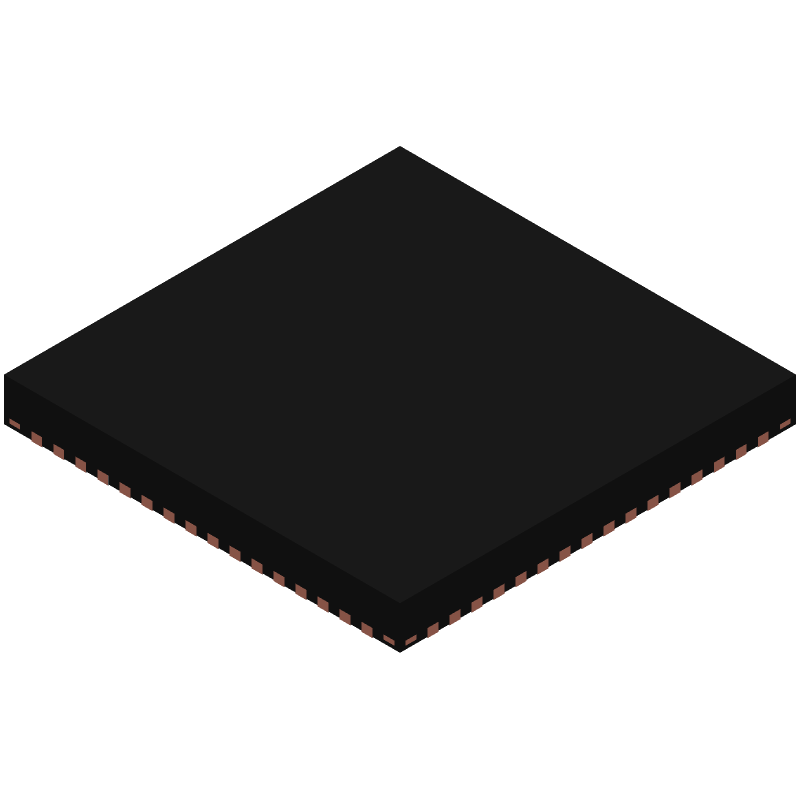

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UCD90160ARGCR by Texas Instruments
Results Overview of UCD90160ARGCR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
UCD90160ARGCR Information
UCD90160ARGCR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| UCD90160ARGCR | Texas Instruments | 16-Rail PMBus Power Supply Sequencer and System Manager with ACPI Support 64-VQFN -40 to 125 |
Price & Stock for UCD90160ARGCR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
UCD90160ARGCR-ND
|
DigiKey | IC SUPERVISOR 16 CHANNEL 64VQFN Min Qty: 2000 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$7.3034 | Buy Now |
|
DISTI #
595-UCD90160ARGCR
|
Mouser Electronics | Supervisory Circuits 16-Rail PMBus Power Supply Sequencer and A 595-UCD90160ARGCT RoHS: Compliant | 0 |
|
$7.1400 / $12.7100 | Order Now |
|
DISTI #
V72:2272_16582846
|
Arrow Electronics | Processor Supervisor 16 Active Low/Open Drain/Push-Pull 64-Pin VQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2310 Container: Cut Strips | Americas - 131 |
|
$6.9960 / $9.4770 | Buy Now |
|
DISTI #
78813626
|
Verical | Processor Supervisor 16 Active Low/Open Drain/Push-Pull 64-Pin VQFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2310 | Americas - 131 |
|
$6.9960 / $9.4770 | Buy Now |
|
|
Quest Components | 4800 |
|
$13.5000 / $18.9000 | Buy Now | |
|
|
Vyrian | Other Function Semiconductors | 3015 |
|
RFQ | |
|
|
Win Source Electronics | IC SUPERVISOR 16 CHANNEL 64VQFN | 18000 |
|
$11.5932 / $17.3898 | Buy Now |
Part Details for UCD90160ARGCR
UCD90160ARGCR CAD Models
UCD90160ARGCR Part Data Attributes
|
|
UCD90160ARGCR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCD90160ARGCR
Texas Instruments
16-Rail PMBus Power Supply Sequencer and System Manager with ACPI Support 64-VQFN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2016-09-25 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY MANAGEMENT CIRCUIT | |
| JESD-30 Code | S-PQCC-N64 | |
| JESD-609 Code | e4 | |
| Length | 9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC64,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm |
Alternate Parts for UCD90160ARGCR
This table gives cross-reference parts and alternative options found for UCD90160ARGCR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UCD90160ARGCR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 78M6612-MR/F/P2 | Silergy Corporation | Check for Price | Power Supply Management Circuit, | UCD90160ARGCR vs 78M6612-MR/F/P2 |
| 78M6612-IGT/F | Silergy Corporation | Check for Price | Power Supply Management Circuit, Adjustable, 1 Channel, | UCD90160ARGCR vs 78M6612-IGT/F |
| 78M6612-GT/F/P2 | Silergy Corporation | Check for Price | Power Supply Management Circuit, | UCD90160ARGCR vs 78M6612-GT/F/P2 |
UCD90160ARGCR Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
-
Use a reliable communication protocol such as I2C or SPI, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SDA line and a pull-down resistor on the SCL line.
-
The maximum current rating for the output pins is 10mA. Exceeding this limit may cause damage to the device or affect its reliability.
-
Power sequencing should be done in the following order: VCC, VDD, and then the input voltage. The reset pin should be pulled high after a power-on reset, and the device should be held in reset for at least 10ms after power-up.
-
Use 0.1uF and 10uF decoupling capacitors between VCC and GND, and 1uF and 10uF decoupling capacitors between VDD and GND. Place the capacitors as close to the device as possible.
