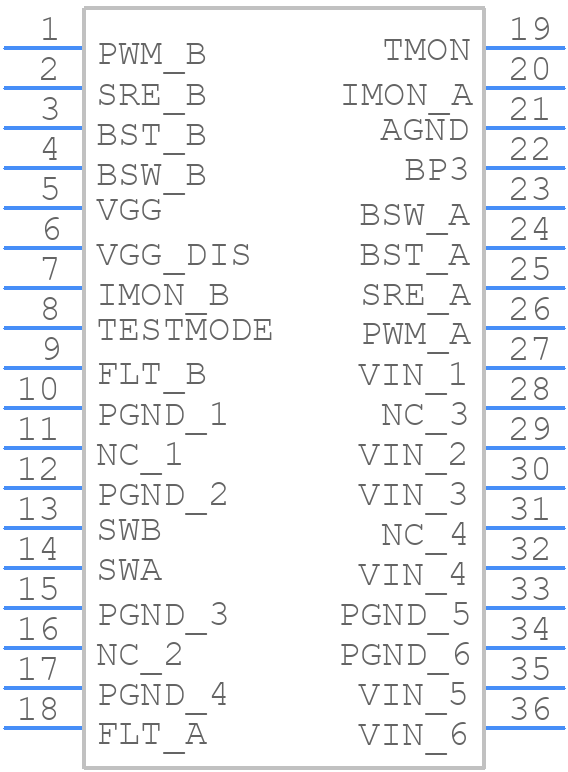

Part Symbol
-
Footprint
-

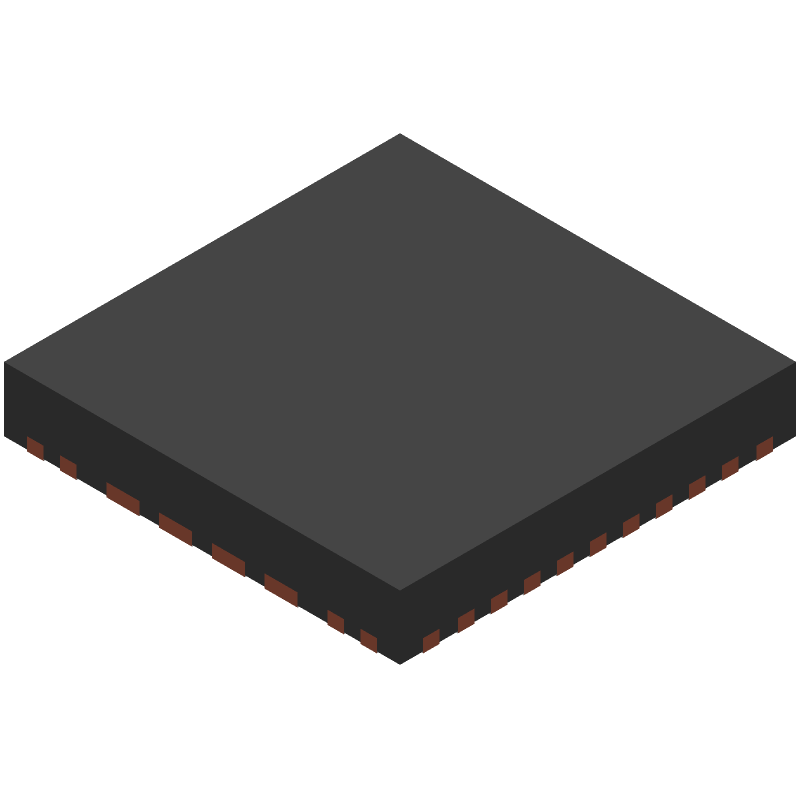

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UCD7242RSJT by Texas Instruments
Results Overview of UCD7242RSJT by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
UCD7242RSJT Information
UCD7242RSJT by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| UCD7242RSJT | Texas Instruments | Digital Dual Synchronous Buck Power Driver 32-VQFN-HR -40 to 125 |
Price & Stock for UCD7242RSJT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-27191-1-ND
|
DigiKey | IC REG BUCK 10A DL 32VQFN Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
431 In Stock |
|
$3.7702 / $6.6300 | Buy Now |
|
DISTI #
595-UCD7242RSJT
|
Mouser Electronics | Gate Drivers Dig Dual Synch Buck Power Driver A 595-UCD7242RSJR RoHS: Compliant | 1576 |
|
$3.8100 / $8.5400 | Buy Now |
|
DISTI #
V72:2272_07429999
|
Arrow Electronics | Controller 2.2V to 18V 32-Pin VQFN-HR EP T/R Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2332 Container: Cut Strips | Americas - 75 |
|
$3.5880 / $4.9030 | Buy Now |
|
DISTI #
73479059
|
Verical | Controller 2.2V to 18V 32-Pin VQFN-HR EP T/R Min Qty: 2 Package Multiple: 1 Date Code: 2332 | Americas - 75 |
|
$3.5880 / $4.9030 | Buy Now |
|
|
Bristol Electronics | 189 |
|
RFQ | ||
|
|
Cytech Systems Limited | IC REG BUCK 10A DL 32VQFN | 250 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 3490 |
|
RFQ | |
|
|
Win Source Electronics | IC REG BUCK 10A DL SYNC 32QFN | 19000 |
|
$4.4268 / $6.6401 | Buy Now |
Part Details for UCD7242RSJT
UCD7242RSJT CAD Models
UCD7242RSJT Part Data Attributes
|
|
UCD7242RSJT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCD7242RSJT
Texas Instruments
Digital Dual Synchronous Buck Power Driver 32-VQFN-HR -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | QFN-32 | |
| Pin Count | 32 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHED CAPACITOR REGULATOR | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 2.2 V | |
| Input Voltage-Nom | 12 V | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e4 | |
| Length | 6 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 10 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC32(UNSPEC) | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 2.2 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK | |
| Switching Frequency-Max | 2000 kHz | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6 mm |
