Capacitors / Aluminum Electrolytic Capacitors / UCD2A331MNQ1MS
Datasheets
UCD2A331MNQ1MS by: Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 5454, CHIP

Part Details for UCD2A331MNQ1MS by Nichicon Corporation

Results Overview of UCD2A331MNQ1MS by Nichicon Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

UCD2A331MNQ1MS Information

UCD2A331MNQ1MS by Nichicon Corporation is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for UCD2A331MNQ1MS

Part # Distributor Description Stock Price Buy
DISTI # 58R7114
Newark Aluminum Electrolytic Capacitor, 330Uf, 100V, 20%, Smd, Full Reel, Capacitor Case/Package:Radial Can - Smd, Capacitance:330Μf, Voltage(Dc):100V, Esr:-, Lifetime @ Temperature:2000 Hours @ 85°C, Polarity:Polar, Product Diameter:18Mmrohs Compliant: Yes |Nichicon UCD2A331MNQ1MS RoHS: Compliant Min Qty: 250 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 647-UCD2A331MNQ1MS
Mouser Electronics Aluminum Electrolytic Capacitors - SMD 100volts 330uF AEC-Q200 RoHS: Compliant 19
  • 1 $2.4900
  • 10 $1.9000
  • 50 $1.7400
  • 125 $1.2300
$1.2300 / $2.4900 Buy Now
DISTI # E02:0323_02901435
Arrow Electronics Cap Aluminum Lytic 330uF 100V 20% (18 X 16.5mm) SMD 0.917A 5000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 500 Package Multiple: 125 Lead time: 47 Weeks Europe - 500
  • 500 $1.2086
  • 1,000 $0.9043
$0.9043 / $1.2086 Buy Now
DISTI # V72:2272_07826836
Arrow Electronics Cap Aluminum Lytic 330uF 100V 20% (18 X 16.5mm) SMD 0.917A 5000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 36 Weeks Date Code: 2228 Container: Cut Strips Americas - 50
  • 50 $1.1960
$1.1960 Buy Now
DISTI # 30588506
Verical Cap Aluminum Lytic 330uF 100V 20% (18 X 16.5mm) SMD 0.917A 5000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 25 Package Multiple: 1 Americas - 751
  • 25 $2.0400
  • 50 $1.6400
  • 100 $1.5300
$1.5300 / $2.0400 Buy Now
DISTI # 85918722
Verical Cap Aluminum Lytic 330uF 100V 20% (18 X 16.5mm) SMD 0.917A 5000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 500 Package Multiple: 500 Date Code: 2438 Americas - 500
  • 500 $1.2164
  • 1,000 $0.9132
$0.9132 / $1.2164 Buy Now
DISTI # 64984919
Verical Cap Aluminum Lytic 330uF 100V 20% (18 X 16.5mm) SMD 0.917A 5000h 105°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 50 Package Multiple: 1 Date Code: 2228 Americas - 50
  • 50 $1.5469
  • 125 $1.3930
$1.3930 / $1.5469 Buy Now
Bristol Electronics   105
RFQ
DISTI # UCD2A331MNQ1MS
TME Capacitor: electrolytic, low ESR, SMD, 330uF, 100VDC, Ø18x16.5mm Min Qty: 1 130
  • 1 $2.3200
  • 5 $1.9800
  • 50 $1.3400
  • 125 $1.1600
  • 250 $1.1300
$1.1300 / $2.3200 Buy Now
DISTI # UCD2A331MNQ1MS
Avnet Abacus Aluminum Electrolytic Capacitor 330 uF 100 V 20 5000 hours 105C Radial Can SMD (Alt: UCD2A331MNQ1MS) RoHS: Compliant Min Qty: 125 Package Multiple: 125 Lead time: 42 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # UCD2A331MNQ1MS
Chip One Stop Passives RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape 751
  • 1 $2.0400
  • 10 $1.6400
  • 50 $1.5300
  • 100 $1.1100
  • 1,000 $1.1000
  • 2,000 $1.0000
$1.0000 / $2.0400 Buy Now

Part Details for UCD2A331MNQ1MS

UCD2A331MNQ1MS CAD Models

  • Part Symbol

    Part Symbol

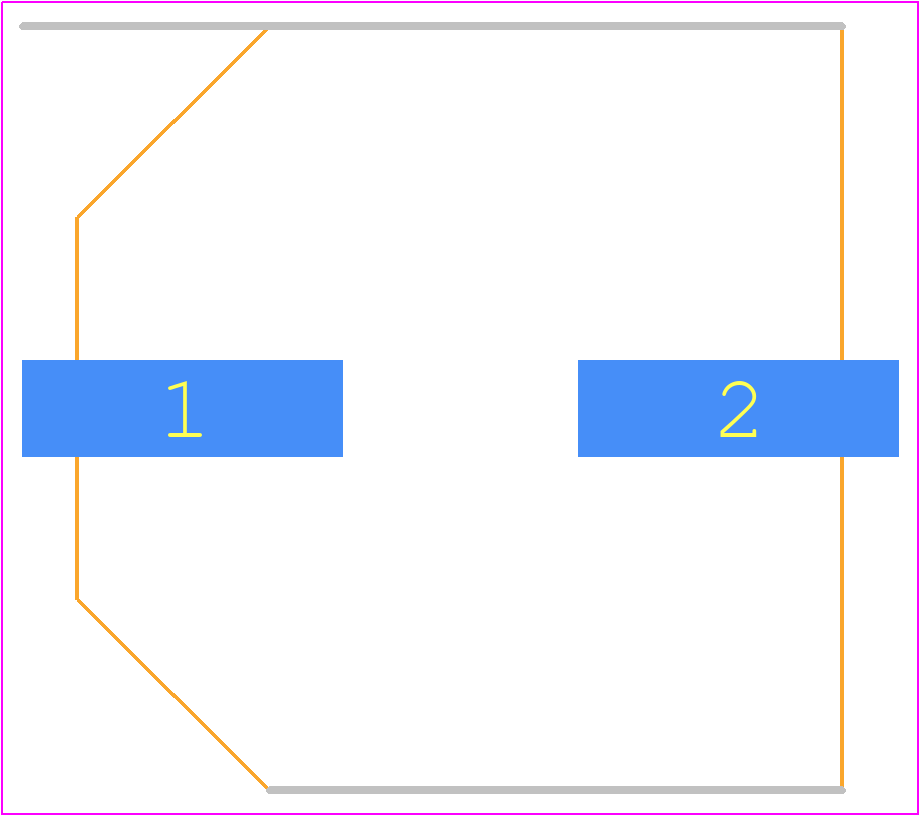

  • Footprint

    footprint

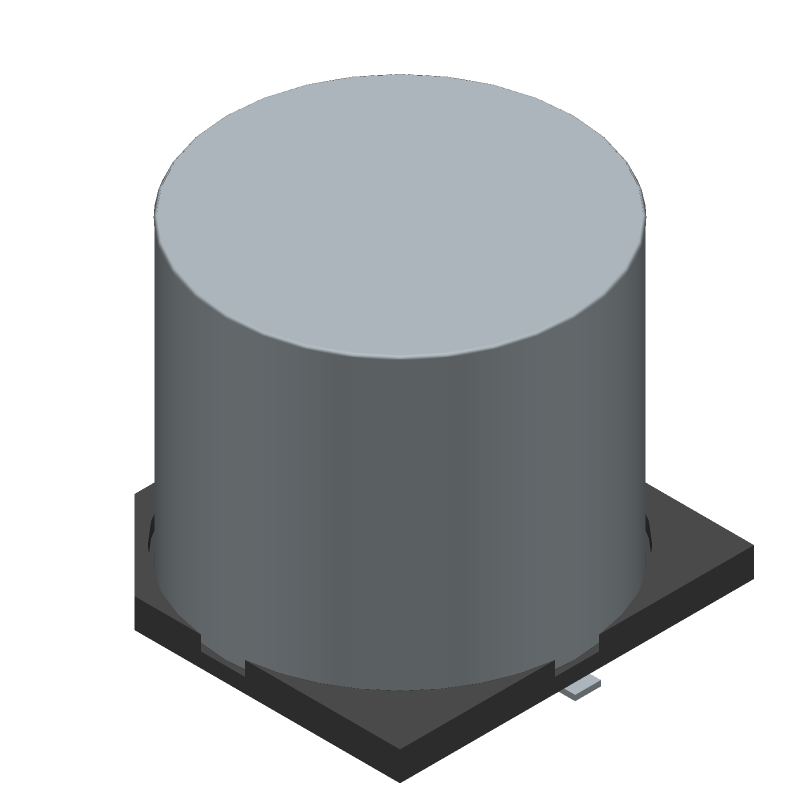

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UCD2A331MNQ1MS Part Data Attributes

Parametric Data
UCD2A331MNQ1MS Nichicon Corporation
Buy Now Datasheet
Compare Parts:
UCD2A331MNQ1MS Nichicon Corporation Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 330uF, Surface Mount, 5454, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer NICHICON CORP
Package Description CHIP
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8532.22.00
Samacsys Manufacturer Nichicon
Capacitance 330 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 18 mm
Dielectric Material ALUMINUM (WET)
Height 16.5 mm
JESD-609 Code e3
Leakage Current 0.33 mA
Length 19.1 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Shape CYLINDRICAL PACKAGE
Package Style SMT
Packing Method TR, 13 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 100 V
Reference Standard AEC-Q200
Ripple Current 458.5 mA
Size Code 7575
Surface Mount YES
Tan Delta 0.07
Terminal Finish MATTE TIN
Terminal Shape FLAT
Width 19.1 mm

UCD2A331MNQ1MS Related Parts

UCD2A331MNQ1MS Frequently Asked Questions (FAQ)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.

  • Yes, the UCD2A331MNQ1MS is designed to withstand high vibrations and can be used in applications where vibration is a concern.

  • Yes, the UCD2A331MNQ1MS is compatible with lead-free soldering and is RoHS compliant.

  • The ESR of the UCD2A331MNQ1MS is approximately 0.02 ohms at 100 kHz.

  • The UCD2A331MNQ1MS is rated for operation up to 125°C, but derating is required for temperatures above 85°C.
