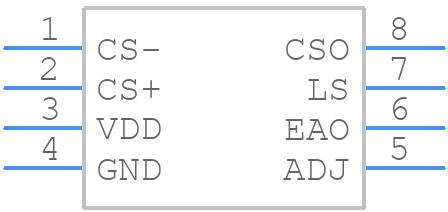

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UCC39002DR by Texas Instruments
Results Overview of UCC39002DR by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UCC39002DR Information
UCC39002DR by Texas Instruments is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for UCC39002DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-28012-1-ND
|
DigiKey | IC LOAD SHARE CTRLR ADV 8SOIC Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6555 In Stock |
|
$1.2575 / $2.6500 | Buy Now |
|
DISTI #
595-UCC39002DR
|
Mouser Electronics | Power Management Specialized - PMIC Adv 8 Pin Loadshare Controller A 595-UCC39002D RoHS: Compliant | 4431 |
|
$1.2500 / $2.6500 | Buy Now |
|
|
LCSC | SOIC-8 Power Management - Specialized ROHS | 5 |
|
$3.1670 / $3.3514 | Buy Now |
|
|
Win Source Electronics | IC LOAD SHARE CTRLR ADV 8SOIC | 14280 |
|
$1.9251 / $2.4864 | Buy Now |
Part Details for UCC39002DR
UCC39002DR CAD Models
UCC39002DR Part Data Attributes
|
|
UCC39002DR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCC39002DR
Texas Instruments
Advanced 8 pin load share controller, 0°C to 70°C 8-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| Control Mode | CURRENT-MODE | |
| Input Voltage-Max | 14.25 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 2.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 3.5 mA | |
| Supply Voltage-Max (Vsup) | 13.5 V | |
| Supply Voltage-Min (Vsup) | 4.375 V | |
| Supply Voltage-Nom (Vsup) | 12 V | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 4.375 kHz | |
| Technology | BICMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
