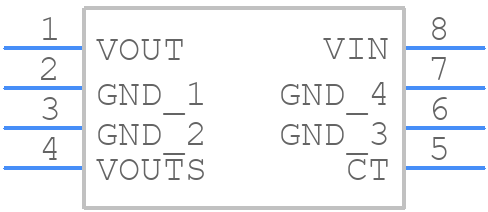

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UCC381DP-5 by Texas Instruments
Results Overview of UCC381DP-5 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
UCC381DP-5 Information
UCC381DP-5 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for UCC381DP-5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-UCC381DP-5-TI-ND
|
DigiKey | IC REG LINEAR 5V 1A 8-SOIC Min Qty: 75 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
20931 In Stock |
|
$4.0200 | Buy Now |
|
DISTI #
296-2820-5-ND
|
DigiKey | IC REG LINEAR 5V 1A 8-SOIC Min Qty: 75 Lead time: 6 Weeks Container: Tube | Temporarily Out of Stock |
|
$4.3326 | Buy Now |
|
DISTI #
595-UCC381DP-5
|
Mouser Electronics | LDO Voltage Regulators Low Power 1 Ampere A 595-UCC381DPTR-5 RoHS: Compliant | 32 |
|
$4.0700 / $8.8700 | Buy Now |
|
DISTI #
86297545
|
Verical | LDO Regulator Pos 5V 1A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 78 Package Multiple: 1 Date Code: 0501 | Americas - 7624 |
|
$4.8375 | Buy Now |
|
DISTI #
86298039
|
Verical | LDO Regulator Pos 5V 1A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 78 Package Multiple: 1 | Americas - 3825 |
|
$4.8375 | Buy Now |
|
DISTI #
86294357
|
Verical | LDO Regulator Pos 5V 1A 8-Pin SOIC Tube RoHS: Compliant Min Qty: 78 Package Multiple: 1 Date Code: 1401 | Americas - 2443 |
|
$4.8375 | Buy Now |
|
|
Rochester Electronics | UCC381 1A, Low-Dropout Linear Regulator RoHS: Compliant Status: Active Min Qty: 1 | 20931 |
|
$3.1000 / $3.8700 | Buy Now |
Part Details for UCC381DP-5
UCC381DP-5 CAD Models
UCC381DP-5 Part Data Attributes
|
|
UCC381DP-5
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UCC381DP-5
Texas Instruments
1-A, low-dropout voltage regulator with reverse current protection from 0°C to 70°C 8-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage1-Nom | 0.5 V | |
| Input Voltage Absolute-Max | 9 V | |
| Input Voltage-Max | 9 V | |
| Input Voltage-Min | 1.8 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Line Regulation-Max | 0.003% | |
| Load Regulation-Max | 0.005% | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature TJ-Max | 150 °C | |
| Operating Temperature TJ-Min | -55 °C | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current1-Max | 1 A | |
| Output Voltage1-Max | 5.125 V | |
| Output Voltage1-Min | 4.875 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.75 mm | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2.5% | |
| Width | 3.9 mm |
Alternate Parts for UCC381DP-5
This table gives cross-reference parts and alternative options found for UCC381DP-5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UCC381DP-5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UCC281DPTR-5G4 | Texas Instruments | Check for Price | 1-A, Low-Dropout Linear Regulator 8-SOIC -40 to 85 | UCC381DP-5 vs UCC281DPTR-5G4 |
UCC381DP-5 Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a compact layout with the UCC381DP-5 placed close to the power stage, and using a solid ground plane to reduce EMI. Additionally, it's recommended to keep the high-current paths short and away from sensitive analog signals.
-
The recommended value for the VCC bypass capacitor is 1-10uF, with a voltage rating of at least 10V. The capacitor should be placed as close as possible to the VCC pin of the UCC381DP-5 to minimize inductance and ensure proper decoupling.
-
The maximum allowed voltage on the VREF pin is 5.5V. Exceeding this voltage can damage the internal voltage reference circuitry.
-
The switching frequency of the UCC381DP-5 can be adjusted by changing the value of the RT resistor connected to the RT pin. A lower value of RT will result in a higher switching frequency, while a higher value will result in a lower switching frequency.
-
The bootstrap capacitor (CB) is used to provide a high-voltage bias to the gate driver stage. The recommended value for CB is 10-100nF, with a voltage rating of at least 10V. The capacitor should be placed between the BOOT pin and the drain of the power MOSFET.
