UCC2802QDRQ1 by:

Automotive single ended 1MHz current mode PWM controller with 12.5V/8.3V UVLO 100% duty cycle 8-SOIC -40 to 125

Part Details for UCC2802QDRQ1 by Texas Instruments

Results Overview of UCC2802QDRQ1 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

UCC2802QDRQ1 Information

UCC2802QDRQ1 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for UCC2802QDRQ1

Part # Distributor Description Stock Price Buy
DISTI # 296-15686-1-ND
DigiKey IC OFFLINE SWITCH MULT TOP 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 9977
In Stock
  • 1 $3.2800
  • 10 $2.4630
  • 25 $2.2588
  • 100 $2.0339
  • 250 $1.9266
  • 500 $1.8620
  • 1,000 $1.8088
  • 2,500 $1.6000
$1.6000 / $3.2800 Buy Now
DISTI # 595-UCC2802QDRQ1
Mouser Electronics Switching Controllers Auto Cat Lo-Pwr BiC MOS Current-Mode PWM RoHS: Compliant 9395
  • 1 $3.2800
  • 10 $2.4700
  • 25 $2.2600
  • 100 $2.0400
  • 250 $1.9300
  • 500 $1.8700
  • 1,000 $1.8100
  • 2,500 $1.6000
$1.6000 / $3.2800 Buy Now
Cytech Systems Limited IC OFFLINE SWITCH MULT TOP 8SOIC 5000
RFQ
LCSC 8.3V11V SOIC-8 AC-DC Controllers and Regulators ROHS 14
  • 1 $7.6974
  • 10 $6.9913
  • 30 $6.5613
  • 100 $6.2023
$6.2023 / $7.6974 Buy Now

Part Details for UCC2802QDRQ1

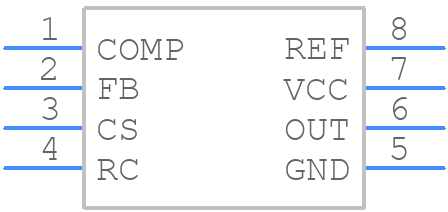

UCC2802QDRQ1 CAD Models

UCC2802QDRQ1 Part Data Attributes

UCC2802QDRQ1 Texas Instruments
Buy Now Datasheet
Compare Parts:
UCC2802QDRQ1 Texas Instruments Automotive single ended 1MHz current mode PWM controller with 12.5V/8.3V UVLO 100% duty cycle 8-SOIC -40 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOIC-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 12 V
Input Voltage-Min 9 V
Input Voltage-Nom 10 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e4
Length 4.9 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 1 A
Output Voltage-Max 5.075 V
Output Voltage-Min 4.925 V
Output Voltage-Nom 5 V
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Screening Level AEC-Q100
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 12 V
Supply Voltage-Min (Vsup) 12.5 V
Supply Voltage-Nom (Vsup) 10 V
Surface Mount YES
Switcher Configuration BUCK-BOOST
Switching Frequency-Max 1000 kHz
Technology BICMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3.9 mm

UCC2802QDRQ1 Related Parts

UCC2802QDRQ1 Frequently Asked Questions (FAQ)

  • A good PCB layout for the UCC2802QDRQ1 involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the IC. Additionally, using a ground plane and minimizing trace lengths can help reduce EMI.

  • The choice of input and output capacitors for the UCC2802QDRQ1 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF for the output capacitor.

  • The UCC2802QDRQ1 has an operating ambient temperature range of -40°C to 125°C. However, the maximum junction temperature is 150°C, and the device should be derated above 85°C to ensure reliable operation.

  • The UCC2802QDRQ1 has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OC pin and the input voltage. The value of the resistor determines the overcurrent threshold. Additionally, an external current sense resistor can be used to monitor the output current and implement overcurrent protection.

  • The recommended input voltage range for the UCC2802QDRQ1 is 8V to 18V. However, the device can operate with input voltages as low as 6V, but with reduced performance and efficiency.
