Power Circuits / Switching Regulator or Controllers / UCC25706P
Datasheets
UCC25706P by:

15V voltage mode 4MHz PWM controller with 12V/8.0V UVLO , -40C to 85C 8-PDIP -40 to 85

Part Details for UCC25706P by Texas Instruments

Results Overview of UCC25706P by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

UCC25706P Information

UCC25706P by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for UCC25706P

Part # Distributor Description Stock Price Buy
DISTI # 86295103
Verical Voltage Mode PWM Controller 20mA 1100kHz 8-Pin PDIP Tube RoHS: Compliant Min Qty: 148 Package Multiple: 1 Date Code: 1401 Americas - 6950
  • 148 $2.5375
$2.5375 Buy Now
Rochester Electronics UCC25706 High Speed Voltage Mode Pulse Width Modulator RoHS: Compliant Status: Obsolete Min Qty: 1 6950
  • 25 $2.0300
  • 100 $1.9300
  • 500 $1.8300
  • 1,000 $1.7300
  • 10,000 $1.6200
$1.6200 / $2.0300 Buy Now

Part Details for UCC25706P

UCC25706P CAD Models

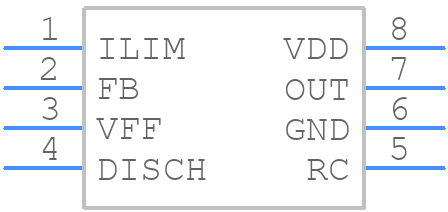

  • Part Symbol

    Part Symbol

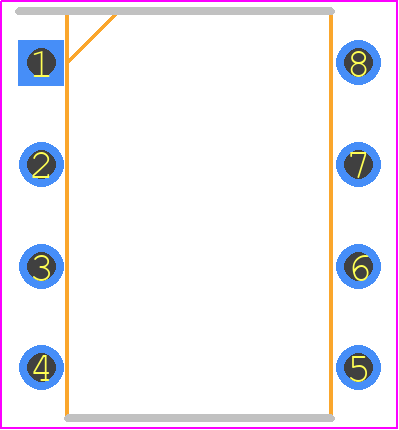

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

UCC25706P Part Data Attributes

Parametric Data
UCC25706P Texas Instruments
Buy Now Datasheet
Compare Parts:
UCC25706P Texas Instruments 15V voltage mode 4MHz PWM controller with 12V/8.0V UVLO , -40C to 85C 8-PDIP -40 to 85
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code DIP
Package Description DIP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Analog IC - Other Type SWITCHING CONTROLLER
Control Mode VOLTAGE-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 15 V
Input Voltage-Min 8.8 V
Input Voltage-Nom 11 V
JESD-30 Code R-PDIP-T8
JESD-609 Code e4
Length 9.81 mm
Number of Functions 1
Number of Terminals 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current-Max 0.02 A
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Current-Max (Isup) 5 mA
Supply Voltage-Max (Vsup) 15 V
Supply Voltage-Min (Vsup) 12 V
Supply Voltage-Nom (Vsup) 11 V
Surface Mount NO
Switcher Configuration BUCK-BOOST
Switching Frequency-Max 4000 kHz
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm

Alternate Parts for UCC25706P

This table gives cross-reference parts and alternative options found for UCC25706P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UCC25706P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
UCC35706D Texas Instruments $1.2995 15V voltage mode 4MHz PWM controller with 12V/8.0V UVLO , 0C to 70C 8-SOIC 0 to 70 UCC25706P vs UCC35706D
UCC25706DGK Texas Instruments $1.3698 15V voltage mode 4MHz PWM controller with 12V/8.0V UVLO , -40C to 85C 8-VSSOP -40 to 85 UCC25706P vs UCC25706DGK
UCC25706D Texas Instruments $1.5830 15V voltage mode 4MHz PWM controller with 12V/8.0V UVLO , -40C to 85C 8-SOIC -40 to 85 UCC25706P vs UCC25706D
UCC25706PG4 Texas Instruments Check for Price 0.02A SWITCHING CONTROLLER, 4000kHz SWITCHING FREQ-MAX, PDIP8, GREEN, PLASTIC, DIP-8 UCC25706P vs UCC25706PG4
UCC25706DTR Texas Instruments Check for Price 0.02A SWITCHING CONTROLLER, 4000kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MS-012AA, SOP-8 UCC25706P vs UCC25706DTR
UCC25706DG4 Texas Instruments Check for Price High Speed Voltage Mode Pulse Width Modulator 8-SOIC -40 to 85 UCC25706P vs UCC25706DG4
UCC25706DGKTRG4 Texas Instruments Check for Price 0.02A SWITCHING CONTROLLER, 4000kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MSOP-8 UCC25706P vs UCC25706DGKTRG4
UCC25706DGKTR Texas Instruments Check for Price 0.02A SWITCHING CONTROLLER, 4000kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MSOP-8 UCC25706P vs UCC25706DGKTR
UCC35706DR Texas Instruments Check for Price 0.02A SWITCHING CONTROLLER, 4000kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MS-012AA, SOP-8 UCC25706P vs UCC35706DR
UCC35706DTRG4 Texas Instruments Check for Price 0.02A SWITCHING CONTROLLER, 4000kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MS-012AA, SOP-8 UCC25706P vs UCC35706DTRG4
