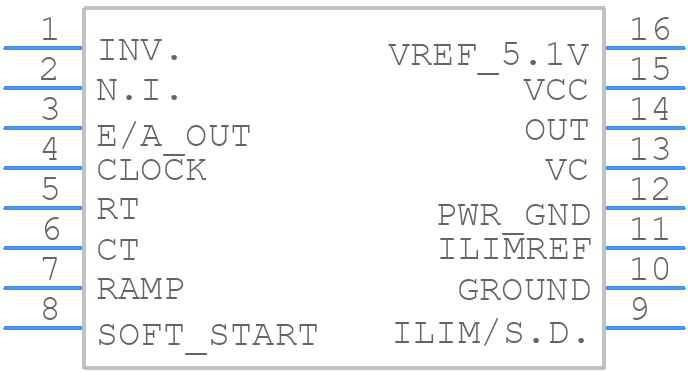

Part Symbol
-

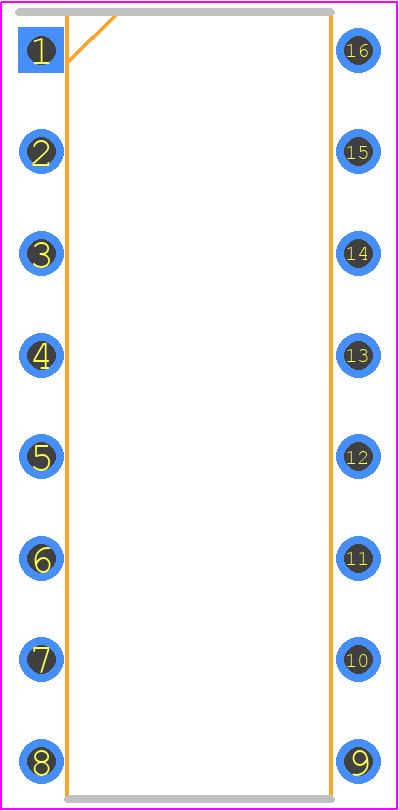

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UC2823N by Texas Instruments
Results Overview of UC2823N by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Motor control systems
UC2823N Information
UC2823N by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for UC2823N
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-UC2823N-ND
|
DigiKey | IC REG CTRLR MULT TOPOLOGY 16DIP Min Qty: 85 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
13500 In Stock |
|
$3.5500 | Buy Now |
|
DISTI #
296-11167-5-ND
|
DigiKey | IC REG CTRLR MULT TOPOLOGY 16DIP Min Qty: 85 Lead time: 12 Weeks Container: Tube | Temporarily Out of Stock |
|
$3.8340 | Buy Now |
|
DISTI #
595-UC2823N
|
Mouser Electronics | Switching Controllers High Speed PWM Contr oller RoHS: Compliant | 230 |
|
$3.6200 / $8.0100 | Buy Now |
|
DISTI #
86049962
|
Verical | Current Mode PWM Controller 1.5A 1000kHz 16-Pin PDIP Tube RoHS: Compliant Min Qty: 88 Package Multiple: 1 Date Code: 0401 | Americas - 3321 |
|
$3.4125 / $4.2625 | Buy Now |
|
DISTI #
86039938
|
Verical | Current Mode PWM Controller 1.5A 1000kHz 16-Pin PDIP Tube RoHS: Compliant Min Qty: 88 Package Multiple: 1 | Americas - 2804 |
|
$3.4125 / $4.2625 | Buy Now |
|
DISTI #
86051988
|
Verical | Current Mode PWM Controller 1.5A 1000kHz 16-Pin PDIP Tube RoHS: Compliant Min Qty: 88 Package Multiple: 1 Date Code: 0601 | Americas - 2750 |
|
$3.4125 / $4.2625 | Buy Now |
|
DISTI #
86041405
|
Verical | Current Mode PWM Controller 1.5A 1000kHz 16-Pin PDIP Tube RoHS: Compliant Min Qty: 88 Package Multiple: 1 Date Code: 0501 | Americas - 1750 |
|
$3.4125 / $4.2625 | Buy Now |
|
DISTI #
86049798
|
Verical | Current Mode PWM Controller 1.5A 1000kHz 16-Pin PDIP Tube RoHS: Compliant Min Qty: 88 Package Multiple: 1 Date Code: 0701 | Americas - 1525 |
|
$3.4125 / $4.2625 | Buy Now |
|
DISTI #
86040994
|
Verical | Current Mode PWM Controller 1.5A 1000kHz 16-Pin PDIP Tube RoHS: Compliant Min Qty: 88 Package Multiple: 1 Date Code: 1401 | Americas - 1350 |
|
$3.4125 / $4.2625 | Buy Now |
|
|
Rochester Electronics | UC2823 High Speed PWM Controller RoHS: Compliant Status: Active Min Qty: 1 | 13500 |
|
$2.7300 / $3.4100 | Buy Now |
Part Details for UC2823N
UC2823N CAD Models
UC2823N Part Data Attributes
|
|
UC2823N
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UC2823N
Texas Instruments
30V, 1.5A double ended 1MHz PWM controller with 9.2V/8.4V UVLO and 80% duty cycle , -25C to 85C 16-PDIP -25 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | GREEN, PLASTIC, DIP-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | CAN ALSO BE CONFIGURED IN CURRENT MODE | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Control Mode | CURRENT/VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 12 V | |
| Input Voltage-Min | 10 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDIP-T16 | |
| JESD-609 Code | e4 | |
| Length | 19.305 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 2 A | |
| Output Voltage-Max | 5.15 V | |
| Output Voltage-Min | 5.05 V | |
| Output Voltage-Nom | 5.1 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Current-Max (Isup) | 33 mA | |
| Supply Voltage-Max (Vsup) | 12 V | |
| Supply Voltage-Min (Vsup) | 9.2 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | NO | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 1000 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | OTHER | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for UC2823N
This table gives cross-reference parts and alternative options found for UC2823N. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UC2823N, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| UC3823NG4 | Texas Instruments | Check for Price | 30-V, 1.5A double ended 1MHz PWM controller with 9.2V/8.4V UVLO and 85% duty cycle , 0C to 70C 16-PDIP 0 to 70 | UC2823N vs UC3823NG4 |
UC2823N Frequently Asked Questions (FAQ)
-
The UC2823N is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power supply, using short traces, and minimizing loop areas to reduce EMI. A 4-layer PCB with a solid ground plane is recommended. Additionally, decoupling capacitors should be placed close to the device pins.
-
The output filter components (L and C) should be chosen based on the desired output voltage ripple, output current, and switching frequency. TI provides a filter design tool and application notes to help with component selection. Generally, a higher inductance value and a lower capacitance value are recommended for better noise reduction.
-
The UC2823N has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 10V to 15V. Exceeding the maximum input voltage can damage the device.
-
The UC2823N does not have built-in OVP. However, OVP can be implemented using an external voltage monitor IC, such as the TLV7031, which can detect overvoltage conditions and shut down the UC2823N. Alternatively, a simple voltage divider and comparator circuit can also be used to detect overvoltage conditions.
-
The UC2823N requires a minimum input capacitance of 10uF to ensure stable operation. However, a higher input capacitance value (e.g., 22uF) is recommended to reduce input voltage ripple and improve overall performance.
