UB2-12SNU-L Information
UB2-12SNU-L by KEMET Corporation is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for UB2-12SNU-L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
93AC5665
|
Newark | V |Kemet UB2-12SNU-L RoHS: Not Compliant Min Qty: 800 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.4400 / $1.8500 | Buy Now |
|
DISTI #
UB2-12SNU-L-ND
|
DigiKey | RELAY GEN PURPOSE DPDT 1A 12V Min Qty: 1600 Lead time: 16 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$1.5790 | Buy Now |
|
DISTI #
80-UB2-12SNU-L
|
Mouser Electronics | Low Signal Relays - PCB KEMET, UB2, Relays, Signal RoHS: Compliant | 389 |
|
$1.5300 / $2.7000 | Buy Now |
Part Details for UB2-12SNU-L

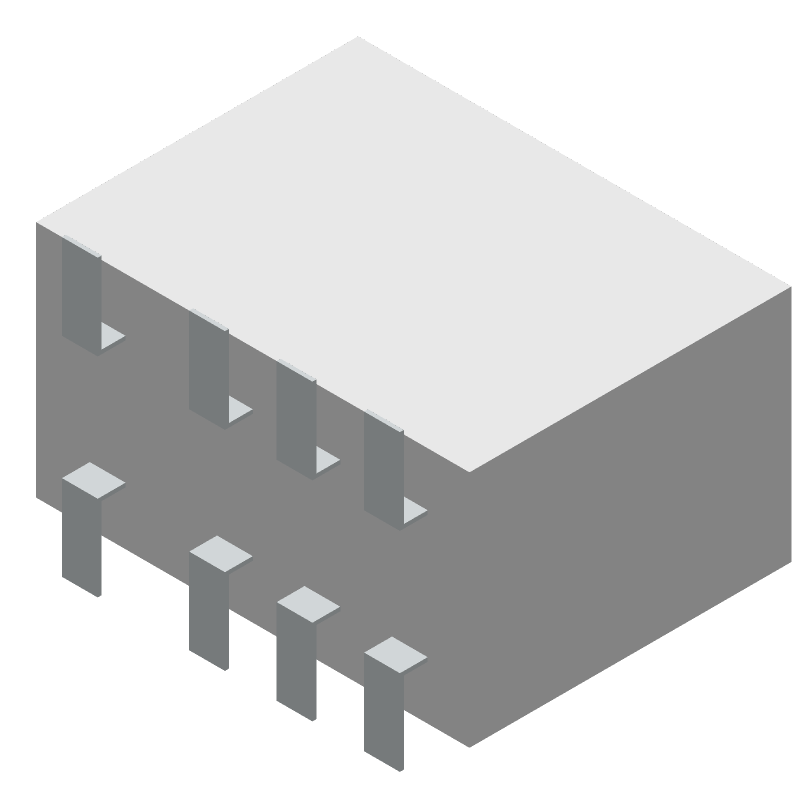

UB2-12SNU-L CAD Models
UB2-12SNU-L Part Data Attributes
|
|
UB2-12SNU-L
KEMET Corporation
Buy Now
Datasheet
|
Compare Parts:
UB2-12SNU-L
KEMET Corporation
Power/Signal Relay
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KEMET ELECTRONICS CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | KEMET | |
| Body Breadth | 5.7 mm | |
| Body Height | 8.8 mm | |
| Body Length or Diameter | 10.6 mm | |
| Coil Current(DC)-Max | 0.008 A | |
| Coil Operate Voltage(DC) | 9 V | |
| Coil Power | 100 mW | |
| Coil Release Voltage(DC) | 9 V | |
| Coil Resistance | 1028 Ω | |
| Coil Voltage(DC)-Max | 12 V | |
| Coil Voltage-Nom | 12 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Power Rating R Load | 37.5VA@250VAC | |
| Contact (AC) Max Rating R Load | 1A@250VAC | |
| Contact Current(AC)-Max | 1 A | |
| Contact Current(DC)-Max | 1 A | |
| Contact (DC) Max Power Rating R Load | 30W@220VDC | |
| Contact (DC) Max Rating R Load | 1A@220VDC | |
| Contact Resistance | 100 mΩ | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact Voltage(DC)-Max | 220 V | |
| Contact/Output Supply Type | AC/DC | |
| Electrical Life | 100000 Cycle(s) | |
| End Contact Material | Silver Alloy | |
| End Contact Plating | GOLD ALLOY | |
| Input Switching Control Type | Random | |
| Insulation Resistance | 1000000000 Ω | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Terminals | 8 | |
| Operate Time | 2 ms | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Packing Method | TR, EMBOSSED,15 INCH | |
| Physical Dimension | 10.6mm x 5.7mm x 8.8mm | |
| Reference Standard | CSA; TUV; UL | |
| Relay Action | LATCHED | |
| Relay Form | 2 FORM C | |
| Relay Function | DPDT | |
| Relay Type | POWER/SIGNAL RELAY | |
| Release Time | 1 ms | |
| Surface Mount | NO | |
| Termination Type | SOLDER |
