UB2-12NU by KEMET Corporation is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for UB2-12NU

Part # Distributor Description Stock Price Buy
DISTI # 93AC5660
Newark V |Kemet UB2-12NU RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $2.0700
  • 500 $1.8600
  • 1,000 $1.6200
  • 2,500 $1.4500
$1.4500 / $2.0700 Buy Now
DISTI # 399-17357-5-ND
DigiKey RELAY GEN PURPOSE DPDT 1A 12V Min Qty: 1 Lead time: 16 Weeks Container: Tube 9069
In Stock
  • 1 $2.5400
  • 10 $2.2620
  • 25 $2.1600
  • 50 $2.0860
  • 100 $2.0146
  • 250 $1.9238
  • 500 $1.8577
  • 1,000 $1.7939
  • 5,000 $1.6540
$1.6540 / $2.5400 Buy Now
DISTI # UB2-12NU
Avnet Americas Miniature Signal Relay Non-Latch Type 12VDC SMD - Rail/Tube (Alt: UB2-12NU) RoHS: Compliant Min Qty: 6000 Package Multiple: 50 Lead time: 111 Weeks, 0 Days Container: Tube 0
  • 6,000 $1.2544
  • 6,100 $1.2480
  • 12,100 $1.2416
  • 30,000 $1.2352
  • 60,000 $1.2288
$1.2288 / $1.2544 Buy Now
DISTI # 551-UB2-12NU
Mouser Electronics Low Signal Relays - PCB DPDT NL 12VDC RoHS: Compliant 5813
  • 1 $2.1900
  • 10 $2.0500
  • 50 $1.8100
  • 100 $1.6300
  • 250 $1.4500
  • 500 $1.3600
  • 1,000 $1.2800
$1.2800 / $2.1900 Buy Now
Cytech Systems Limited RELAY GEN PURPOSE DPDT 1A 12V 3150
RFQ

Part Details for UB2-12NU

UB2-12NU CAD Models

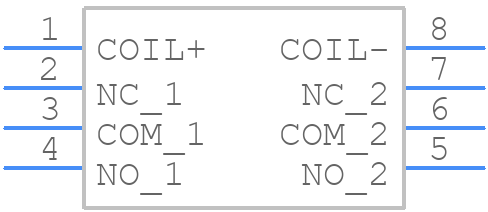

  • Part Symbol

    Part Symbol

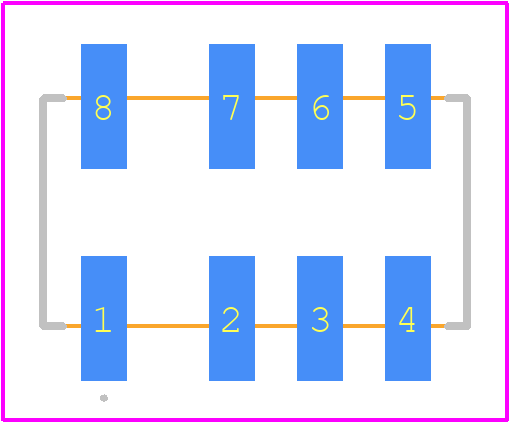

  • Footprint

    footprint

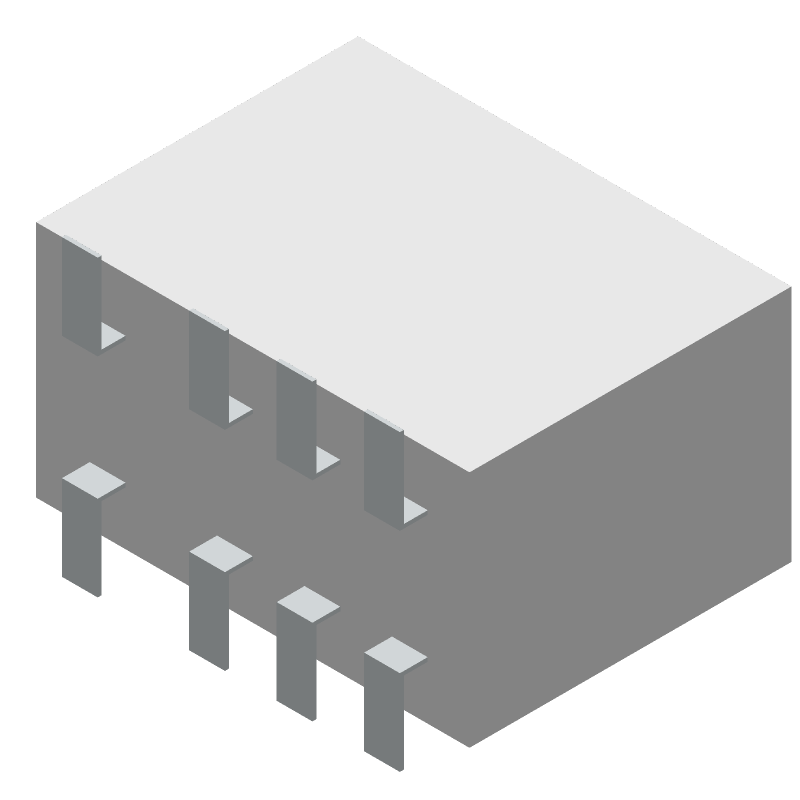

  • 3D Model
