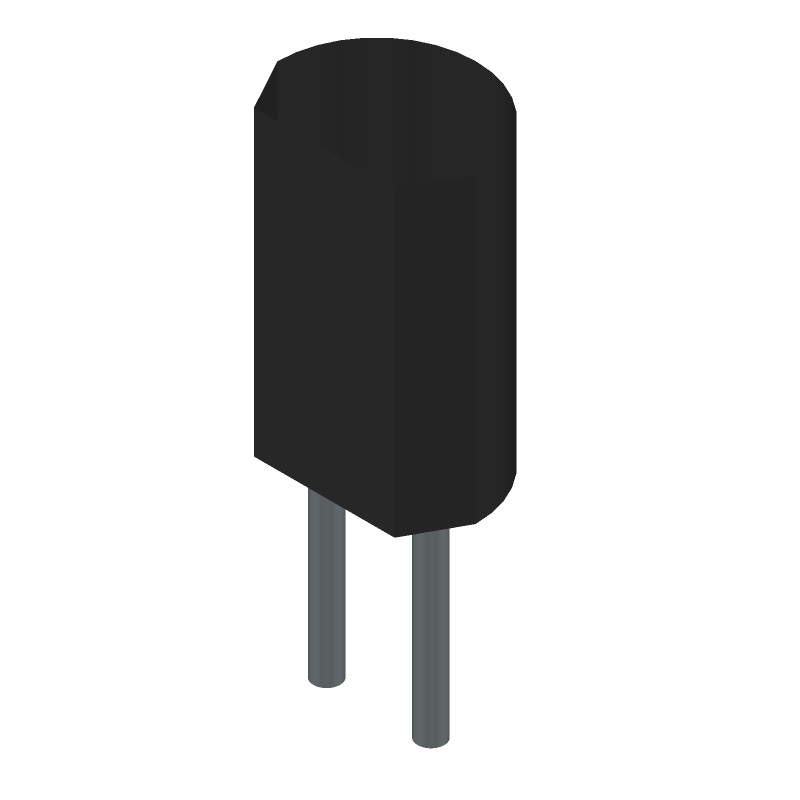

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for UA78L05ACLP by Texas Instruments
Results Overview of UA78L05ACLP by Texas Instruments
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
UA78L05ACLP Information
UA78L05ACLP by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for UA78L05ACLP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH8350
|
Newark | Ic, Pos Voltage Regulator, 5V, To92-3, Fixed Output Voltage Nom.:5V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Input Voltage Min:7V, Input Voltage Max:20V, Product Range:7805 Voltage Regulators, Output Rohs Compliant: Yes |Texas Instruments UA78L05ACLP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 1 |
|
$0.4160 | Buy Now |
|
DISTI #
2156-UA78L05ACLP-ND
|
DigiKey | IC REG LINEAR 5V 100MA TO92-3 Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
19643 In Stock |
|
$0.8300 | Buy Now |
|
DISTI #
296-1365-ND
|
DigiKey | IC REG LINEAR 5V 100MA TO92-3 Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
3627 In Stock |
|
$0.7188 / $1.4600 | Buy Now |
|
DISTI #
595-UA78L05ACLP
|
Mouser Electronics | Linear Voltage Regulators 5.0V 100mA A 595-UA78L05ACLPM RoHS: Compliant | 5051 |
|
$0.6980 / $1.4600 | Buy Now |
|
DISTI #
V99:2348_07427518
|
Arrow Electronics | LDO Regulator Pos 5V 0.1A 3-Pin TO-92 Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2249 | Americas - 279 |
|
$0.6216 / $0.9839 | Buy Now |
|
DISTI #
70815545
|
Verical | LDO Regulator Pos 5V 0.1A 3-Pin TO-92 Bulk RoHS: Compliant Min Qty: 9 Package Multiple: 1 Date Code: 2249 | Americas - 279 |
|
$0.6216 / $0.6311 | Buy Now |
|
|
Bristol Electronics | 5790 |
|
RFQ | ||
|
|
Bristol Electronics | 183 |
|
RFQ | ||
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
|
Quest Components | IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,SIP,3PIN,PLASTIC | 803 |
|
$0.2940 / $0.9800 | Buy Now |
Part Details for UA78L05ACLP
UA78L05ACLP CAD Models
UA78L05ACLP Part Data Attributes
|
|
UA78L05ACLP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
UA78L05ACLP
Texas Instruments
100-mA 30-V linear voltage regulator 3-TO-92 0 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-92 | |
| Package Description | ROHS COMPLIANT, PLASTIC, TO-226AA, TO-92, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Nom | 1.7 V | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 7 V | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Line Regulation-Max | 0.15% | |
| Load Regulation-Max | 0.06% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Output Current1-Max | 0.1 A | |
| Output Voltage1-Max | 5.25 V | |
| Output Voltage1-Min | 4.75 V | |
| Output Voltage1-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR | |
| Seated Height-Max | 5.34 mm | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | T | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Voltage Tolerance-Max | 5% |
Alternate Parts for UA78L05ACLP
This table gives cross-reference parts and alternative options found for UA78L05ACLP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of UA78L05ACLP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC78L05ACPRE | onsemi | Check for Price | 5V FIXED POSITIVE REGULATOR, PBCY3, TO-92, 3 PIN | UA78L05ACLP vs MC78L05ACPRE |
| MC78L05ACZ | Samsung Semiconductor | Check for Price | Fixed Positive Standard Regulator, 5VBIPolar, PBCY3, TO-92, 3 PIN | UA78L05ACLP vs MC78L05ACZ |
| UA78L05ACLPE3 | Texas Instruments | Check for Price | 100-mA 30-V linear voltage regulator 3-TO-92 0 to 125 | UA78L05ACLP vs UA78L05ACLPE3 |
| LM78L05ACZ | onsemi | Check for Price | 3-Terminal 0.1A Positive Voltage Regulator, TO-92-3, 10000-BLKBG | UA78L05ACLP vs LM78L05ACZ |
| MC78L05ACPRM | onsemi | Check for Price | 5V FIXED POSITIVE REGULATOR, PBCY3, TO-92, 3 PIN | UA78L05ACLP vs MC78L05ACPRM |
| MC78L05ACPRMG | onsemi | $0.1909 | Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-FNFLD | UA78L05ACLP vs MC78L05ACPRMG |
| MC78L05ACPRP | onsemi | Check for Price | 5V FIXED POSITIVE REGULATOR, PBCY3, TO-92, 3 PIN | UA78L05ACLP vs MC78L05ACPRP |
| UA78L05ACLPME3 | Texas Instruments | Check for Price | 100-mA 30-V linear voltage regulator 3-TO-92 0 to 125 | UA78L05ACLP vs UA78L05ACLPME3 |
| L78L05ACZ | STMicroelectronics | $0.1277 | Positive voltage regulators | UA78L05ACLP vs L78L05ACZ |
| L78L05ACZ-AP | STMicroelectronics | $0.1223 | Positive voltage regulators | UA78L05ACLP vs L78L05ACZ-AP |
UA78L05ACLP Frequently Asked Questions (FAQ)
-
The UA78L05ACLP can handle input voltages up to 35V, but it's recommended to keep the input voltage below 25V for optimal performance and to prevent overheating.
-
To ensure stability, make sure to use a minimum output capacitance of 1uF, and keep the distance between the input and output capacitors as short as possible. Also, use a low-ESR capacitor for the output capacitor.
-
The UA78L05ACLP can provide up to 1A of output current, but it's recommended to keep the output current below 500mA for optimal performance and to prevent overheating.
-
To protect the UA78L05ACLP from overheating, make sure to provide adequate heat sinking, keep the device away from high-temperature sources, and ensure good airflow around the device.
-
Yes, the UA78L05ACLP is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications and meets the required reliability standards.
