TZMC3V9-GS08 Information
TZMC3V9-GS08 by Vishay Intertechnologies is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TZMC3V9-GS08
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2690115RL
|
Farnell | ZENER DIODE, AUTO, 0.5W, 3.9V, SOD80 RoHS: Compliant Min Qty: 500 Lead time: 12 Weeks, 1 Days Container: Reel | 9645 |
|
$0.0272 / $0.0583 | Buy Now |
|
DISTI #
2690115
|
Farnell | ZENER DIODE, AUTO, 0.5W, 3.9V, SOD80 RoHS: Compliant Min Qty: 5 Lead time: 12 Weeks, 1 Days Container: Cut Tape | 9645 |
|
$0.0272 / $0.2403 | Buy Now |
|
DISTI #
TZMC3V9-GS08
|
Avnet Americas | ZENER DIODE SOD80 MINIMELF - Tape and Reel (Alt: TZMC3V9-GS08) RoHS: Compliant Min Qty: 12500 Package Multiple: 12500 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
$0.0198 / $0.0214 | Buy Now |
|
DISTI #
78-TZMC3.9
|
Mouser Electronics | Zener Diodes 3.9 Volt 0.5 Watt RoHS: Compliant | 14469 |
|
$0.0220 / $0.1700 | Buy Now |
|
DISTI #
E02:0323_00193756
|
Arrow Electronics | Diode Zener Single 3.9V 5% 500mW 2-Pin Mini-MELF SOD-80 T/R Min Qty: 2500 Package Multiple: 2500 Lead time: 9 Weeks Date Code: 2504 | Europe - 302500 |
|
$0.0110 / $0.0369 | Buy Now |
|
DISTI #
V36:1790_16251706
|
Arrow Electronics | Diode Zener Single 3.9V 5% 500mW 2-Pin Mini-MELF SOD-80 T/R Min Qty: 12500 Package Multiple: 12500 Lead time: 9 Weeks Date Code: 2424 | Americas - 12500 |
|
$0.0201 | Buy Now |
|
DISTI #
87708192
|
Verical | Diode Zener Single 3.9V 5% 500mW 2-Pin Mini-MELF SOD-80 T/R Min Qty: 2500 Package Multiple: 2500 Date Code: 2504 | Americas - 302500 |
|
$0.0111 | Buy Now |
|
|
Bristol Electronics | Min Qty: 52 | 3490 |
|
$0.0292 / $0.0975 | Buy Now |
|
|
Quest Components | 3.9V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-213AA | 2792 |
|
$0.0260 / $0.1300 | Buy Now |
|
|
Quest Components | 3.9V, 0.5W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-213AA | 1336 |
|
$0.0266 / $0.1330 | Buy Now |
Part Details for TZMC3V9-GS08
TZMC3V9-GS08 CAD Models
TZMC3V9-GS08 Part Data Attributes
|
|
TZMC3V9-GS08
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TZMC3V9-GS08
Vishay Intertechnologies

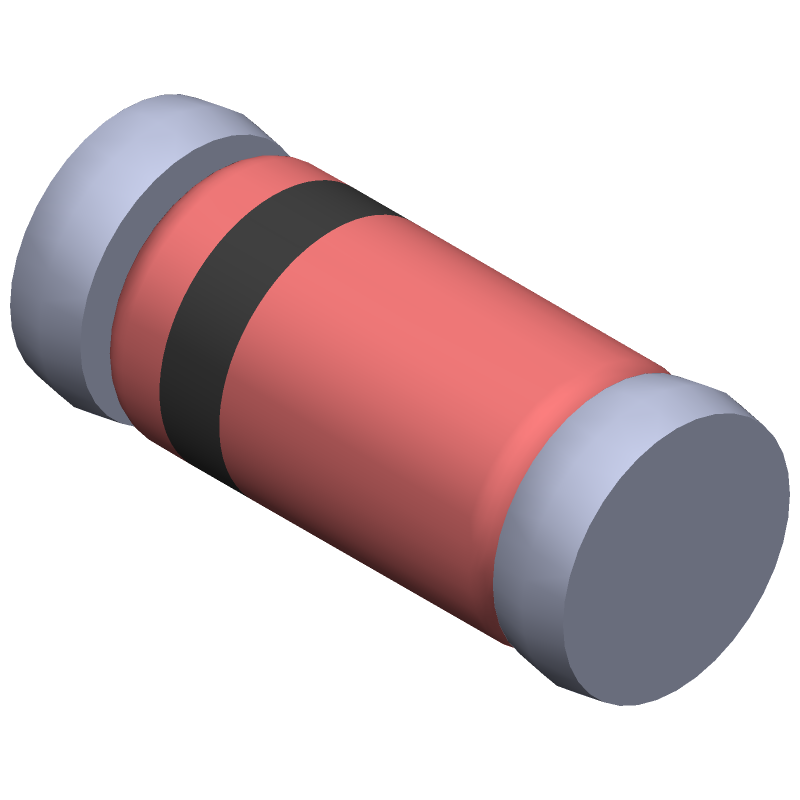

Zener Diode, 3.9V V(Z), 5%, 0.5W, Silicon, Unidirectional, DO-213AA, MELF-2
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | LOW NOISE | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| Dynamic Impedance-Max | 90 Ω | |
| JESD-30 Code | O-LELF-R2 | |
| JESD-609 Code | e2 | |
| Knee Impedance-Max | 600 Ω | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Package Body Material | GLASS | |
| Package Shape | ROUND | |
| Package Style | LONG FORM | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Qualification Status | Not Qualified | |
| Reference Standard | AEC-Q101 | |
| Reference Voltage-Nom | 3.9 V | |
| Reverse Current-Max | 40 µA | |
| Reverse Test Voltage | 1 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Finish | TIN SILVER | |
| Terminal Form | WRAP AROUND | |
| Terminal Position | END | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Voltage Temp Coeff-Max | -1.95 mV/°C | |
| Voltage Tol-Max | 5% | |
| Working Test Current | 5 mA |
