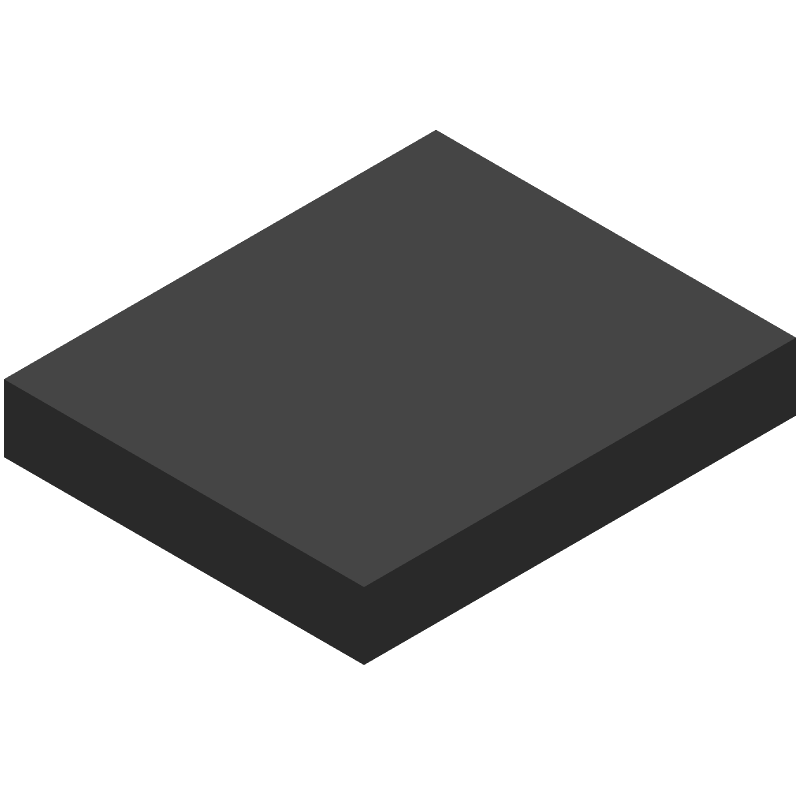

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TUSB542RWQR by Texas Instruments
Results Overview of TUSB542RWQR by Texas Instruments
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
TUSB542RWQR Information
TUSB542RWQR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TUSB542RWQR | Texas Instruments | 5Gbps USB 3.1 Gen1 Type-C 2:1 MUX and Redriver 18-X2QFN -40 to 85 |
Price & Stock for TUSB542RWQR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-47905-1-ND
|
DigiKey | IC REDRIVER USB 3.0 18X2QFN Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3884 In Stock |
|
$2.2822 / $4.2000 | Buy Now |
|
DISTI #
595-TUSB542RWQR
|
Mouser Electronics | USB Interface IC 5-Gbps USB 3.1 Gen1 Type-C 2:1 mux and r RoHS: Compliant | 1544 |
|
$2.1000 / $4.1300 | Buy Now |
|
DISTI #
V72:2272_14839629
|
Arrow Electronics | High Speed/Super Speed Dual Channel Redriver USB 3.1 1.8V T/R 18-Pin X2QFN EP RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2318 Container: Cut Strips | Americas - 2483 |
|
$2.4880 / $2.9900 | Buy Now |
|
DISTI #
69123107
|
Verical | High Speed/Super Speed Dual Channel Redriver USB 3.1 1.8V T/R 18-Pin X2QFN EP RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2318 | Americas - 2483 |
|
$2.4880 / $2.9900 | Buy Now |
|
|
Quest Components | 984 |
|
$1.5000 / $4.0000 | Buy Now | |
|
|
Quest Components | 16 |
|
$2.6400 / $3.6000 | Buy Now | |
|
|
Quest Components | 7 |
|
$2.1600 / $3.2400 | Buy Now | |
|
|
LCSC | 2 5Gbps USB 3.1 X2-QFN-18(2x2.4) USB Converters ROHS | 3 |
|
$8.5926 / $12.5137 | Buy Now |
|
|
Vyrian | Interface ICs | 3361 |
|
RFQ | |
|
|
Win Source Electronics | USB Type-C 5 Gbps Redriver 2:1 MUX | IC REDRIVER USB 3.0 18X2QFN | 27820 |
|
$0.7701 / $0.9946 | Buy Now |
Part Details for TUSB542RWQR
TUSB542RWQR CAD Models
TUSB542RWQR Part Data Attributes
|
|
TUSB542RWQR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TUSB542RWQR
Texas Instruments
5-Gbps USB 3.1 Gen1 Type-C 2:1 mux and redriver 18-X2QFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | X2QFN-18 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 2 | |
| Input Characteristics | DIFFERENTIAL | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | GENERAL PURPOSE | |
| JESD-30 Code | R-PQCC-N18 | |
| JESD-609 Code | e4 | |
| Length | 2.4 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 18 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC18,.07X.08,16 | |
| Package Shape | RECTANGULAR | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 0.4 mm | |
| Supply Current-Max | 130 mA | |
| Supply Voltage-Max | 1.98 V | |
| Supply Voltage-Min | 1.62 V | |
| Supply Voltage-Nom | 1.8 V | |
| Supply Voltage1-Max | 1.98 V | |
| Supply Voltage1-Min | 1.62 V | |
| Supply Voltage1-Nom | 1.8 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
TUSB542RWQR Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode filter and a shielded cable to minimize EMI.
-
Use a thermal pad or a heat sink to keep the junction temperature below 125°C. Ensure good airflow and avoid blocking the airflow around the device. Use a thermally conductive material for the PCB and avoid using the device near heat sources.
-
Use ESD protection devices such as TVS diodes or ESD arrays on the USB lines. Ensure that the ESD protection devices are rated for the maximum voltage and current of the USB bus. Use a shielded cable and a common mode filter to minimize EMI.
-
Use a power sequencer or a voltage regulator to ensure that the VBUS and VCC pins are powered up and down in the correct sequence. Use a voltage regulator with a low dropout voltage to minimize power consumption.
-
Use a USB 2.0 and USB 3.0 compatible PHY and ensure that the device is configured correctly for the desired USB standard. Use a USB 2.0 and USB 3.0 compatible cable and connector.
