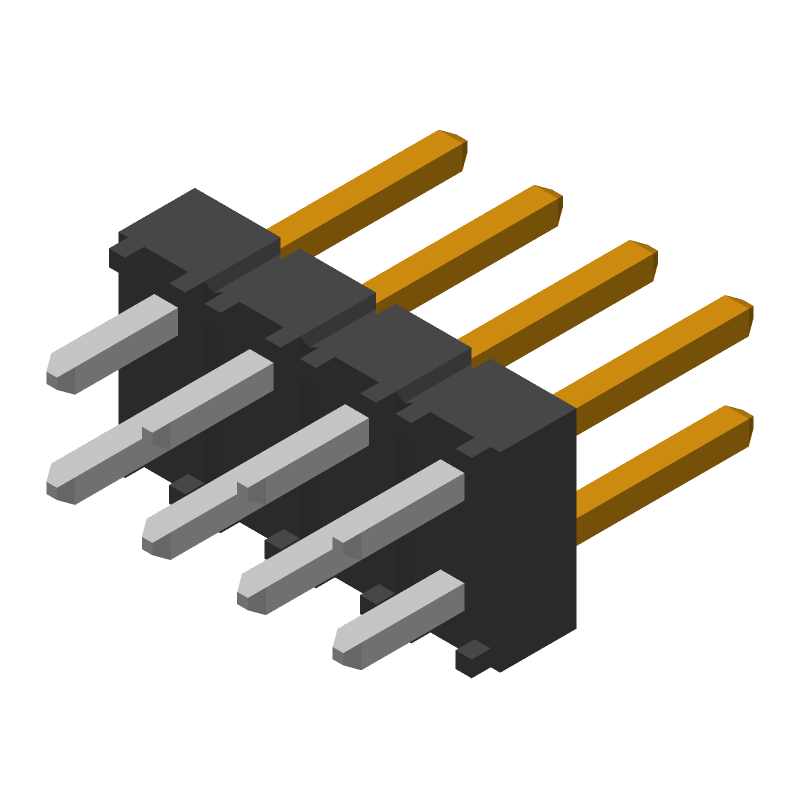

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSW-104-07-F-D by Samtec Inc
Results Overview of TSW-104-07-F-D by Samtec Inc
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
TSW-104-07-F-D Information
TSW-104-07-F-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| LD09P24A4GV00LF | Amphenol Communications Solutions | D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness | |
| DB5W5P543M40LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets. | |
| DCV8W8P543M30LF | Amphenol Communications Solutions | D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets. |
Price & Stock for TSW-104-07-F-D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79P4867
|
Newark | Header, 2.54Mm, Though Hole Vertical, 8 Position, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:8Contacts, Contact Termination Type:Through Hole, Product Range:Tsw Series Rohs Compliant: Yes |Samtec TSW-104-07-F-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 770 |
|
$0.1760 / $0.3440 | Buy Now |
|
DISTI #
56AC7176
|
Newark | Connector, Header, 8Pos, 2Row, 2.54Mm, Pitch Spacing:2.54Mm, No. Of Contacts:8Contacts, Gender:Header, Product Range:Tsw Series, Contact Termination Type:Through Hole, No. Of Rows:2Rows, Contact Plating:Gold Plated Contacts, Contact Rohs Compliant: Yes |Samtec TSW-104-07-F-D RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk | 507 |
|
$0.1860 / $0.3780 | Buy Now |
|
DISTI #
SAM8996-ND
|
DigiKey | CONN HEADER VERT 8POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bag |
20696 In Stock |
|
$0.1500 / $0.4300 | Buy Now |
|
DISTI #
TSW-104-07-F-D
|
Avnet Americas | Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 8 Contacts, Through Hole, TSW Series - Bulk (Alt: TSW-104-07-F-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Bulk | 6100 Factory Stock |
|
$0.2381 / $0.3371 | Buy Now |
|
DISTI #
200-TSW10407FD
|
Mouser Electronics | Headers & Wire Housings Classic PCB Header Strips RoHS: Compliant | 1648 |
|
$0.1500 / $0.4300 | Buy Now |
|
DISTI #
V36:1790_07459042
|
Arrow Electronics | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks Date Code: 2450 | Americas - 8 |
|
$0.1669 / $0.4300 | Buy Now |
|
|
Onlinecomponents.com | Board-To-Board Connector - 2.54 mm - 8 Contact - Header - Through Hole - 2 Rows. RoHS: Compliant |
7043 In Stock |
|
$0.1826 / $0.3814 | Buy Now |
|
DISTI #
51682636
|
Verical | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 200 Package Multiple: 100 Date Code: 1842 | Americas - 7000 |
|
$0.2410 / $0.4958 | Buy Now |
|
DISTI #
87054571
|
Verical | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 36 Package Multiple: 1 Date Code: 2450 | Americas - 6100 |
|
$0.1500 / $0.4300 | Buy Now |
|
DISTI #
87174348
|
Verical | Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 150 Package Multiple: 1 | Americas - 210 |
|
$0.2060 | Buy Now |
Part Details for TSW-104-07-F-D
TSW-104-07-F-D CAD Models
TSW-104-07-F-D Part Data Attributes
|
|
TSW-104-07-F-D
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
TSW-104-07-F-D
Samtec Inc
Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | E.L.P. | |
| Body Breadth | 0.2 inch | |
| Body Depth | 0.1 inch | |
| Body Length | 0.4 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD FLASH OVER NICKEL (50) | |
| Contact Finish Termination | MATTE TIN OVER NICKEL | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2.54 mm | |
| Rated Current (Signal) | 5.2 A | |
| Reference Standard | UL | |
| Terminal Length | 0.1 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 8 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for TSW-104-07-F-D
This table gives cross-reference parts and alternative options found for TSW-104-07-F-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSW-104-07-F-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TSW-104-07-G-D | Samtec Inc | $0.5019 | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle, ROHS COMPLIANT | TSW-104-07-F-D vs TSW-104-07-G-D |
| HTSW-104-26-T-D | Samtec Inc | $0.5352 | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE | TSW-104-07-F-D vs HTSW-104-26-T-D |
| HTSW-104-27-T-D | Samtec Inc | $0.5884 | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE | TSW-104-07-F-D vs HTSW-104-27-T-D |
| HTSW-104-09-G-D | Samtec Inc | $0.7410 | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, LEAD FREE | TSW-104-07-F-D vs HTSW-104-09-G-D |
| TSW-104-10-G-D | Samtec Inc | $0.7843 | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT | TSW-104-07-F-D vs TSW-104-10-G-D |
| HTSW-104-07-SM-D | Samtec Inc | $0.9968 | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, | TSW-104-07-F-D vs HTSW-104-07-SM-D |
| TSW-104-28-G-D | Samtec Inc | $1.0638 | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT | TSW-104-07-F-D vs TSW-104-28-G-D |
| TSW-104-10-S-D | Samtec Inc | Check for Price | Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT | TSW-104-07-F-D vs TSW-104-10-S-D |
TSW-104-07-F-D Frequently Asked Questions (FAQ)
-
The recommended torque is 2-3 in-lbs (0.2-0.3 Nm) for the screws that hold the connector in place.
-
Yes, the TSW-104-07-F-D is designed to withstand high-vibration environments, but it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application guidance.
-
The maximum operating temperature for the TSW-104-07-F-D is 125°C (257°F), but it's recommended to derate the connector's current-carrying capacity at higher temperatures.
-
The TSW-104-07-F-D is rated for up to 3A per contact, but it's recommended to consult with a Samtec representative for specific guidance on high-current applications and to ensure the connector is properly cooled.
-
Yes, the TSW-104-07-F-D is compatible with lead-free soldering processes, but it's recommended to follow Samtec's guidelines for lead-free soldering and to consult with a Samtec representative for specific guidance.
