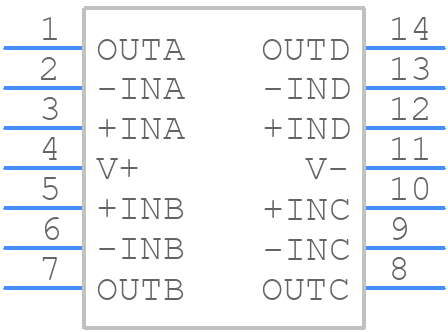

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSV914AIDR by Texas Instruments
Results Overview of TSV914AIDR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TSV914AIDR Information
TSV914AIDR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TSV914AIDR | Texas Instruments | 8-MHz, Low-Noise, Low Offset, RRIO General Purpose CMOS Operational Amplifier 14-SOIC -40 to 125 |
Price & Stock for TSV914AIDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-47552-1-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
11179 In Stock |
|
$0.5343 / $1.1700 | Buy Now |
|
DISTI #
595-TSV914AIDR
|
Mouser Electronics | Operational Amplifiers - Op Amps Quad 5.5-V 8-MHz RRIO operational amp RoHS: Compliant | 3987 |
|
$0.5220 / $1.1700 | Buy Now |
|
|
LCSC | QUAD 81pA 4.5V/us 8MHz Rail-to-rail input Rail-to-rail output 1.5mV SOIC-14 Operational Amplifier ROHS | 55 |
|
$1.6687 / $2.3476 | Buy Now |
|
|
Vyrian | Amplifiers | 14732 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP GP 4 CIRCUIT 14SOIC / General Purpose Amplifier 4 Circuit Rail-to-Rail 14-SOIC | 27377 |
|
$1.1730 / $1.5151 | Buy Now |
Part Details for TSV914AIDR
TSV914AIDR CAD Models
TSV914AIDR Part Data Attributes
|
|
TSV914AIDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TSV914AIDR
Texas Instruments
Quad, 5.5-V, 8-MHz, RRIO operational amplifier 14-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2017-11-02 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Common-mode Reject Ratio-Min | 86 dB | |
| Common-mode Reject Ratio-Nom | 103 dB | |
| Input Offset Voltage-Max | 1500 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Nom | 6.5 V/us | |
| Supply Current-Max | 3 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 8000 | |
| Width | 3.9 mm |
Alternate Parts for TSV914AIDR
This table gives cross-reference parts and alternative options found for TSV914AIDR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSV914AIDR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TSV914AIYD | STMicroelectronics | Check for Price | Rail to rail input/output widebandwidth op-amps | TSV914AIDR vs TSV914AIYD |
TSV914AIDR Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TSV914AIDR is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RθJA) of 125°C/W.
-
To ensure stability, it's essential to follow proper PCB layout practices, use a low-ESR capacitor for decoupling, and consider adding a capacitor in parallel with the feedback resistor to reduce the phase margin.
-
The recommended operating voltage range for the TSV914AIDR is 1.8V to 5.5V, although it can operate down to 1.7V with reduced performance.
-
Yes, the TSV914AIDR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the maximum junction temperature (TJ) should not exceed 150°C.
-
The gain setting depends on the specific application requirements. A higher gain setting can provide better noise immunity, but may also increase the risk of oscillation. A lower gain setting can provide better stability, but may compromise noise immunity.
