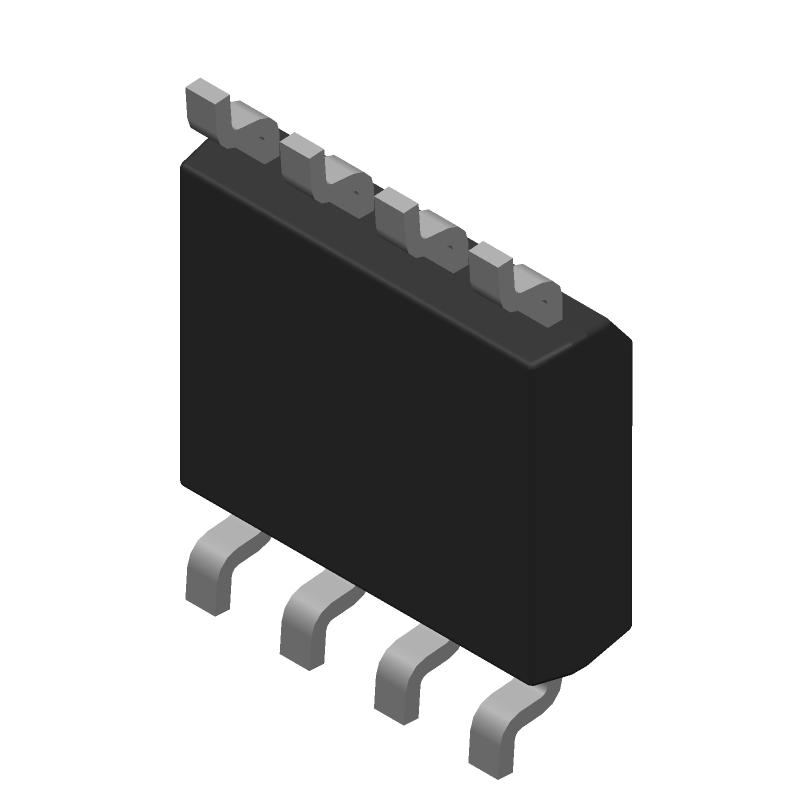

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSV732IST by STMicroelectronics
Results Overview of TSV732IST by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TSV732IST Information
TSV732IST by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TSV732IST
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AH3042
|
Newark | Opamp, 900Khz, -40 To 125Deg C Rohs Compliant: Yes |Stmicroelectronics TSV732IST RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2372 |
|
$0.5780 / $1.1500 | Buy Now |
|
DISTI #
497-13686-1-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8MINISO Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3895 In Stock |
|
$0.5287 / $1.1500 | Buy Now |
|
DISTI #
TSV732IST
|
Avnet Americas | Op Amp Dual GP 5.5V 8-Pin Mini-SO T/R - Tape and Reel (Alt: TSV732IST) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.4691 / $0.4987 | Buy Now |
|
DISTI #
511-TSV732IST
|
Mouser Electronics | Operational Amplifiers - Op Amps Hi acc micropower60A 900kHz 5V CMOS RoHS: Compliant | 2497 |
|
$0.5340 / $1.1500 | Buy Now |
|
|
STMicroelectronics | High accuracy (Vio below 200uV) Micropower (60uA) 5V CMOS Op Amp, dual, GBP 900kHz RoHS: Compliant Min Qty: 1 | 2497 |
|
$0.5900 / $1.1300 | Buy Now |
|
DISTI #
67023391
|
Verical | Op Amp Dual Micropower Amplifier R-R I/O 5.5V 8-Pin MSOP T/R RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2047 | Americas - 100 |
|
$0.8690 | Buy Now |
|
|
Quest Components | OPERATIONAL AMPLIFIER, 2 FUNC, 650UV OFFSET-MAX, CMOS, PDSO8 | 7630 |
|
$0.5294 / $1.2605 | Buy Now |
|
DISTI #
TSV732IST
|
TME | IC: operational amplifier, 900kHz, Ch: 2, MSOP8, 1.5÷5.5VDC Min Qty: 1 | 0 |
|
$0.9600 / $1.4500 | RFQ |
|
|
ComSIT USA | HIGH ACCURACY (200 MICROVOLT) MICROPOWER 60 MICROAMP, 900 KHZ 5 V CMOS OPERATIONAL AMPLIFIER Operational Amplifier, 2 Func, 650uV Offset-Max, CMOS, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
TSV732IST
|
Avnet Silica | Op Amp Dual GP 55V 8Pin MiniSO TR (Alt: TSV732IST) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days | Silica - 4000 |
|
Buy Now |
Part Details for TSV732IST
TSV732IST CAD Models
TSV732IST Part Data Attributes
|
|
TSV732IST
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TSV732IST
STMicroelectronics
High accuracy (Vio below 200uV) Micropower (60uA) 5V CMOS Op Amp, dual, GBP 900kHz
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Package Description | ROHS COMPLIANT, MINI, SOP-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Average Bias Current-Max (IIB) | 0.0003 µA | |
| Bias Current-Max (IIB) @25C | 0.000001 µA | |
| Common-mode Reject Ratio-Min | 66 dB | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 650 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| Length | 3 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | YES | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Programmable Power | NO | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 0.35 V/us | |
| Supply Current-Max | 0.17 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 850 | |
| Wideband | NO | |
| Width | 3 mm |
TSV732IST Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TSV732IST is -40°C to 125°C.
-
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1 μF and a maximum equivalent series resistance (ESR) of 1 Ω.
-
The maximum input voltage that the TSV732IST can handle is 5.5 V.
-
Yes, the TSV732IST is suitable for high-reliability applications due to its high MTBF (Mean Time Between Failures) and low FIT (Failure In Time) rate.
-
The TSV732IST has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features to protect the device from voltage faults. Additionally, external protection circuits can be added to further enhance the device's robustness.
