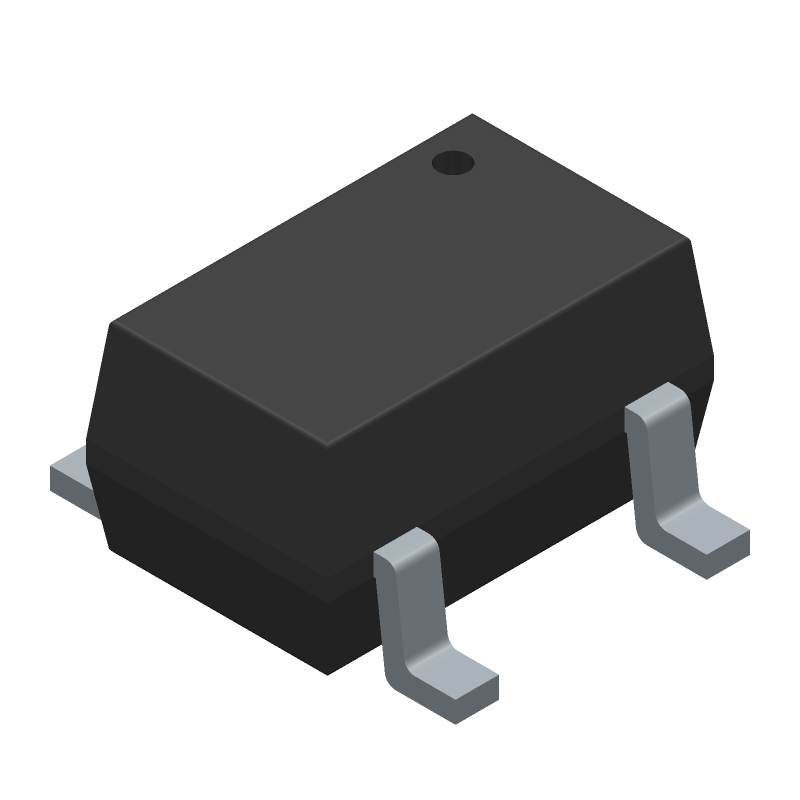

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSV611ILT by STMicroelectronics
Results Overview of TSV611ILT by STMicroelectronics
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
TSV611ILT Information
TSV611ILT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TSV611ILT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-10350-1-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT SOT23-5 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
39191 In Stock |
|
$0.4127 / $0.9300 | Buy Now |
|
DISTI #
TSV611ILT
|
Avnet Americas | OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R - Tape and Reel (Alt: TSV611ILT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.3757 / $0.4013 | Buy Now |
|
DISTI #
TSV611ILT
|
Avnet Americas | OP Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R - Tape and Reel (Alt: TSV611ILT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.3593 / $0.3805 | Buy Now |
|
DISTI #
511-TSV611ILT
|
Mouser Electronics | Operational Amplifiers - Op Amps 800 uV 1.5 to 5.5 V 120 kHz 10 uA 1pA RoHS: Compliant | 8806 |
|
$0.4010 / $0.9300 | Buy Now |
|
DISTI #
V36:1790_06547900
|
Arrow Electronics | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 16 Weeks Date Code: 2416 | Americas - 12000 |
|
$0.3801 / $0.3923 | Buy Now |
|
DISTI #
70521218
|
RS | TSV611ILT CMOS Op Amp, 120kHz Rail-Rail, 1.5 - 5.5 V, 5-Pin SOT-23 Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.4590 / $0.5400 | RFQ |
|
|
STMicroelectronics | Rail to rail input/output 5V CMOS Op-Amp, micro-power (10uA), GBP = 120kHz, single RoHS: Compliant Min Qty: 1 | 8806 |
|
$0.4700 / $0.9100 | Buy Now |
|
DISTI #
83687785
|
Verical | Op Amp Single GP R-R I/O 5.5V 5-Pin SOT-23 T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Date Code: 2416 | Americas - 12000 |
|
$0.3801 / $0.3923 | Buy Now |
|
|
Quest Components | 416 |
|
$0.2835 / $0.9450 | Buy Now | |
|
DISTI #
TSV611ILT
|
TME | IC: operational amplifier, 120kHz, Ch: 1, SOT23-5, 1.5÷5.5VDC Min Qty: 1 | 0 |
|
$0.5850 / $0.8820 | RFQ |
Part Details for TSV611ILT
TSV611ILT CAD Models
TSV611ILT Part Data Attributes
|
|
TSV611ILT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TSV611ILT
STMicroelectronics
Rail to rail input/output 5V CMOS Op-Amp, micro-power (10uA), GBP = 120kHz, single
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOT-23 | |
| Package Description | SOT-23, 5 PIN | |
| Pin Count | 5 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0001 µA | |
| Common-mode Reject Ratio-Nom | 71 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G5 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | TSOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.45 mm | |
| Slew Rate-Nom | 0.03 V/us | |
| Supply Current-Max | 0.015 mA | |
| Supply Voltage Limit-Max | 6 V | |
| Supply Voltage-Nom (Vsup) | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 100 | |
| Voltage Gain-Min | 5000 | |
| Wideband | NO | |
| Width | 1.6 mm |
Alternate Parts for TSV611ILT
This table gives cross-reference parts and alternative options found for TSV611ILT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSV611ILT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TSV6191AILT | STMicroelectronics | $0.5326 | Rail to rail input/output 5V CMOS Op-Amp, micro-power (10uA), GBP=450kHz, small offset, single | TSV611ILT vs TSV6191AILT |
| TSV631ILT | STMicroelectronics | $0.5485 | Rail-to-rail input/output 5V CMOS Op-Amp, micro-power (60uA), GBP=880kHz, single | TSV611ILT vs TSV631ILT |
| TSV6191ILT | STMicroelectronics | $0.6051 | Rail to rail input/output 5V CMOS Op-Amp, micro-power (10uA), GBP = 450kHz, single | TSV611ILT vs TSV6191ILT |
| TSV631AILT | STMicroelectronics | $0.6078 | Rail-to-rail input/output 5V CMOS Op-Amp, micro-power (60uA), GBP=880kHz, small offset, single | TSV611ILT vs TSV631AILT |
| TSV621ILT | STMicroelectronics | $0.6088 | Rail-to-rail input/output 5V CMOS Op-Amp, micro-power (29uA), GBP=420kHz, single | TSV611ILT vs TSV621ILT |
| TSV611AILT | STMicroelectronics | $0.6673 | Rail to rail input/output 5V CMOS Op-Amp, micro-power (10uA), GBP = 120kHz, small offset, single | TSV611ILT vs TSV611AILT |
| TSV6390ICT | STMicroelectronics | $0.6673 | Rail-to-rail input/output 5V CMOS Op-Amp, micro-power (60uA), GBP=2.4MHz, single with standby | TSV611ILT vs TSV6390ICT |
| TSV6390AICT | STMicroelectronics | $0.7271 | Rail-to-rail input/output 5V CMOS Op-Amp, micro-power (60uA), GBP=2.4MHz, small offset, single with standby | TSV611ILT vs TSV6390AICT |
TSV611ILT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TSV611ILT is 670 mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RthJA) of 125°C/W.
-
To ensure stability, it's recommended to use a gain resistor (RG) between 1 kΩ and 10 kΩ, and a feedback capacitor (CF) between 10 pF and 100 pF, depending on the specific application and frequency range.
-
To minimize noise and EMI, it's recommended to use a star-ground configuration, keep the input and output traces short and symmetrical, and use a ground plane to shield the device. Additionally, decoupling capacitors (e.g., 100 nF) should be placed close to the device's power pins.
-
Yes, the TSV611ILT can be used in a single-supply configuration, but it's essential to ensure that the input common-mode voltage is within the specified range (VCC-1.5V to VCC-0.5V) to maintain optimal performance.
-
The TSV611ILT has a built-in input clamp that prevents the input voltage from exceeding the supply voltage. However, it's still recommended to use external clamping diodes or voltage-limiting resistors to protect the device from excessive input voltages.
