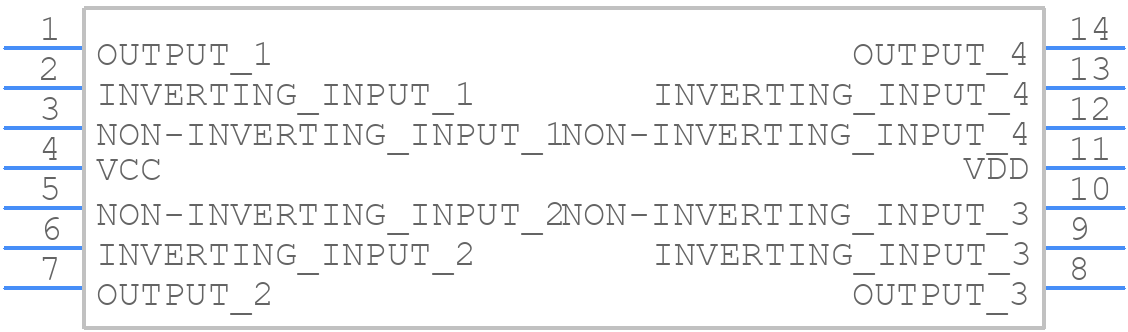

Part Symbol
-

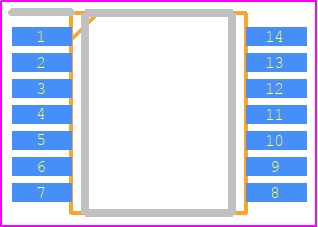

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSV324IPT by STMicroelectronics
Results Overview of TSV324IPT by STMicroelectronics
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TSV324IPT Information
TSV324IPT by STMicroelectronics is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TSV324IPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2762660RL
|
Farnell | OP-AMP, 1.4MHZ, 0.6V/US, TSSOP-14 RoHS: Compliant Min Qty: 100 Lead time: 18 Weeks, 1 Days Container: Reel | 714 |
|
$0.5666 / $0.6845 | Buy Now |
|
DISTI #
2762660
|
Farnell | OP-AMP, 1.4MHZ, 0.6V/US, TSSOP-14 RoHS: Compliant Min Qty: 1 Lead time: 18 Weeks, 1 Days Container: Cut Tape | 714 |
|
$0.5666 / $1.0287 | Buy Now |
|
DISTI #
497-5201-1-ND
|
DigiKey | IC OPAMP GP 4 CIRCUIT 14TSSOP Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
76041 In Stock |
|
$0.4936 / $1.0900 | Buy Now |
|
DISTI #
TSV324IPT
|
Avnet Americas | Operational Amplifier, Rail-to-Rail I/O, 4 Channels, 1.4 MHz, 0.6 V/?s, 2.5V to 6V, TSSOP, 14 Pins - Tape and Reel (Alt: TSV324IPT) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Reel | 27500 |
|
$0.4559 / $0.4695 | Buy Now |
|
DISTI #
511-TSV324IPT
|
Mouser Electronics | Operational Amplifiers - Op Amps Gen. purpose input/ output rail-to-rail RoHS: Compliant | 4963 |
|
$0.4870 / $1.0200 | Buy Now |
|
DISTI #
V36:1790_06547780
|
Arrow Electronics | Op Amp Quad Low Power Amplifier R-R I/O 6V 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Date Code: 2423 | Americas - 5000 |
|
$0.4727 / $0.4990 | Buy Now |
|
DISTI #
V72:2272_06547780
|
Arrow Electronics | Op Amp Quad Low Power Amplifier R-R I/O 6V 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2314 Container: Cut Strips | Americas - 21 |
|
$0.5040 / $0.5121 | Buy Now |
|
|
STMicroelectronics | General purpose low voltage rail to rail input/output op-amp RoHS: Compliant Min Qty: 1 | 4963 |
|
$0.5500 / $1.0000 | Buy Now |
|
|
Future Electronics | TSSOP 14 BODY 4.4 PITCH 0.65 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Container: Reel | 5000Reel |
|
$0.4750 / $0.4900 | Buy Now |
|
|
Future Electronics | TSSOP 14 BODY 4.4 PITCH 0.65 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks Container: Reel | 0Reel |
|
$0.4750 / $0.4900 | Buy Now |
Part Details for TSV324IPT
TSV324IPT CAD Models
TSV324IPT Part Data Attributes
|
|
TSV324IPT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TSV324IPT
STMicroelectronics
General purpose low voltage rail to rail input/output op-amp
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | TSSOP | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.15 µA | |
| Bias Current-Max (IIB) @25C | 0.13 µA | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Voltage-Max | 3000 µV | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | YES | |
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TAPE AND REEL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Slew Rate-Nom | 0.6 V/us | |
| Supply Current-Max | 3.34 mA | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Unity Gain BW-Nom | 1300 | |
| Voltage Gain-Min | 5000 | |
| Wideband | NO | |
| Width | 4.4 mm |
TSV324IPT Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TSV324IPT is 670mW, calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (RthJA) of 125°C/W.
-
To ensure stability, it's essential to follow proper PCB layout practices, minimize parasitic capacitance, and use a compensation capacitor (if necessary) as recommended in the datasheet. Additionally, consider using a phase margin analyzer tool to verify the stability of your design.
-
The recommended operating voltage range for the TSV324IPT is 2.7V to 5.5V, although the device can operate down to 2.5V with reduced performance. It's essential to ensure the supply voltage is within the recommended range to maintain optimal performance and reliability.
-
The TSV324IPT has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing, storage, and handling. Use ESD-protective packaging, wrist straps, and mats to prevent damage from electrostatic discharge.
-
The maximum input voltage range for the TSV324IPT is from -0.5V to VCC + 0.5V. Exceeding this range may cause damage to the device or affect its performance.
