Connectors / Headers and Edge Type Connectors / TST-110-05-T-D-RA
Datasheets
TST-110-05-T-D-RA by: Samtec Inc

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

Part Details for TST-110-05-T-D-RA by Samtec Inc

Results Overview of TST-110-05-T-D-RA by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

TST-110-05-T-D-RA Information

TST-110-05-T-D-RA by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for TST-110-05-T-D-RA

Part # Distributor Description Stock Price Buy
DISTI # 79P1999
Newark Connector, Header, 20 Position, 2Row, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:20Contacts, Contact Termination Type:Through Hole Right Angle, Product Range:Tst Series Rohs Compliant: Yes |Samtec TST-110-05-T-D-RA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 272
  • 1 $3.8800
  • 50 $3.2700
  • 100 $2.6600
  • 500 $1.7600
  • 1,000 $1.3400
$1.3400 / $3.8800 Buy Now
DISTI # 3937-TST-110-05-T-D-RA-ND
DigiKey CONN HEADER R/A 20POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 50
In Stock
  • 1 $7.5000
$7.5000 Buy Now
DISTI # SAM15935-ND
DigiKey CONN HEADER R/A 20POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Tube 5
In Stock
  • 1 $2.7500
  • 50 $2.2400
  • 100 $1.9100
  • 500 $1.6900
  • 1,000 $1.5120
$1.5120 / $2.7500 Buy Now
DISTI # TST-110-05-T-D-RA
Avnet Americas Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole - Rail/Tube (Alt: TST-110-05-T-D-RA) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube 248 Factory Stock
  • 1 $2.6950
  • 10 $2.3624
  • 30 $1.8527
  • 50 $1.8432
  • 100 $1.8336
$1.8336 / $2.6950 Buy Now
DISTI # 200-TST11005TDRA
Mouser Electronics Headers & Wire Housings Shrouded PCB Headers RoHS: Compliant 109
  • 1 $2.7500
  • 51 $2.2400
  • 102 $1.9100
  • 510 $1.6900
  • 1,003 $1.3300
  • 2,006 $1.2100
  • 5,015 $0.9700
  • 10,013 $0.7300
$0.7300 / $2.7500 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 10 $2.4230
  • 100 $1.9690
  • 250 $1.8810
  • 500 $1.8260
  • 1,000 $1.4290
  • 2,500 $1.2740
  • 5,000 $1.0270
  • 7,500 $1.0000
$1.0000 / $2.4230 Buy Now
DISTI # 85031436
Verical Conn Shrouded Header (4 Sides) HDR 20 POS 2.54mm Solder RA Side Entry Thru-Hole Tube RoHS: Compliant Min Qty: 4 Package Multiple: 1 Americas - 225
  • 4 $2.7500
  • 50 $2.2400
  • 100 $1.9100
  • 500 $1.6900
  • 2,000 $1.2100
  • 5,000 $1.0690
$1.0690 / $2.7500 Buy Now
DISTI # 5cd92d3acd7c1c4c38897122
Samtec Shrouded PCB Headers, 0.100" pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 5 Days Container: Tube 0
  • 1 $2.7500
  • 50 $2.2400
  • 100 $1.9100
  • 500 $1.6900
  • 1,000 $1.3300
  • 2,000 $1.2100
  • 5,000 $0.9700
  • 10,000 $0.7300
$0.7300 / $2.7500 Buy Now
Powell Electronics .100 Shrouded Terminal Strip Min Qty: 1 164
  • 1 $2.7500
  • 50 $2.2400
  • 100 $1.9100
  • 500 $1.6900
  • 1,000 $1.3300
$1.3300 / $2.7500 Buy Now
DISTI # 000000000000163100
Sager Headers & Wire Housings Shrouded PCB Headers, 0.100 pitch Min Qty: 1 225
  • 1 $2.7500
  • 50 $2.2400
  • 100 $1.9100
  • 500 $1.6900
  • 1,000 $1.3300
  • 2,000 $1.2100
$1.2100 / $2.7500 Buy Now
DISTI # TST-110-05-T-D-RA
Avnet Abacus Pin Header WiretoBoard 254 mm 2 Rows 20 Contacts Through Hole Right Angle TST Series (Alt: TST-110-05-T-D-RA) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics   RoHS: Compliant 0
  • 10 $2.4230
  • 100 $1.9690
  • 250 $1.8810
  • 500 $1.8260
  • 1,000 $1.4290
  • 2,500 $1.2740
  • 5,000 $1.0270
  • 7,500 $1.0000
$1.0000 / $2.4230 Buy Now

Part Details for TST-110-05-T-D-RA

TST-110-05-T-D-RA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

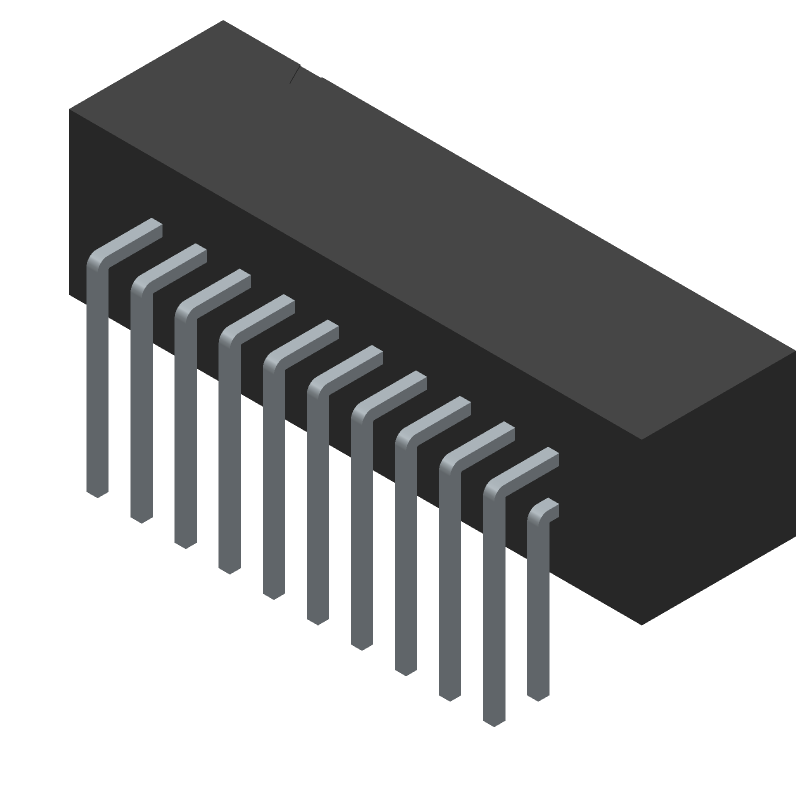

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TST-110-05-T-D-RA Part Data Attributes

Parametric Data
TST-110-05-T-D-RA Samtec Inc
Buy Now Datasheet
Compare Parts:
TST-110-05-T-D-RA Samtec Inc Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Body Breadth 0.365 inch
Body Depth 0.498 inch
Body Length 1.3 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating MATTE TIN (200) OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Polarization Key POLARIZATION NOTCH
Terminal Length 0.23 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 20

Alternate Parts for TST-110-05-T-D-RA

This table gives cross-reference parts and alternative options found for TST-110-05-T-D-RA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TST-110-05-T-D-RA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TST-110-05-S-D-RA Samtec Inc $4.8536 Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT TST-110-05-T-D-RA vs TST-110-05-S-D-RA

TST-110-05-T-D-RA Related Parts

TST-110-05-T-D-RA Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure mating and prevent damage to the connector.

  • Yes, the TST-110-05-T-D-RA is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.

  • The operating temperature range for the TST-110-05-T-D-RA is -55°C to 125°C (-69°F to 257°F). However, it's recommended to derate the connector's performance at extreme temperatures.

  • Yes, the TST-110-05-T-D-RA is compatible with lead-free soldering processes. Samtec Inc. recommends following the recommended soldering profile to ensure reliable connections.

  • The TST-110-05-T-D-RA has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
