We use Cookies to give you best experience on our website. By using our website and services, you expressly agree to the placement of our performance, functionality and advertising cookies. Please see our Privacy Policy for more information.

Findchips Blog
Connectors / Headers and Edge Type Connectors / TST-106-01-G-D
Datasheets
TST-106-01-G-D by: Samtec Inc

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

Part Details for TST-106-01-G-D by Samtec Inc

Results Overview of TST-106-01-G-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy Automotive

TST-106-01-G-D Information

TST-106-01-G-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for TST-106-01-G-D

Part # Distributor Description Stock Price Buy
DISTI # 33P6071
Newark Connector, Header, 12Pos, 2Row, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:12Contacts, Contact Termination Type:Through Hole, Product Range:Tst Series, Connector Shroud:Shrouded Rohs Compliant: Yes |Samtec TST-106-01-G-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 33
  • 1 $3.1800
  • 10 $2.9900
  • 25 $2.7900
  • 50 $2.6000
  • 100 $2.2000
  • 250 $2.0800
  • 500 $1.9600
$1.9600 / $3.1800 Buy Now
DISTI # 3937-TST-106-01-G-D-ND
DigiKey CONN HEADER VERT 12POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 50
In Stock
  • 1 $8.9500
$8.9500 Buy Now
DISTI # SAM12292-ND
DigiKey CONN HEADER VERT 12POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk Temporarily Out of Stock
  • 1 $3.2800
  • 50 $2.6800
  • 100 $2.2700
  • 500 $2.0200
  • 1,000 $1.5900
  • 2,000 $1.4500
  • 5,000 $1.3320
$1.3320 / $3.2800 Buy Now
DISTI # 200-TST10601GD
Mouser Electronics Headers & Wire Housings Shrouded PCB Headers RoHS: Compliant 2012
  • 1 $3.2800
  • 50 $2.6800
  • 100 $2.2700
  • 500 $2.1000
  • 1,000 $1.8500
  • 5,000 $1.3700
$1.3700 / $3.2800 Buy Now
DISTI # V36:1790_08792429
Arrow Electronics Conn Shrouded Header (4 Sides) HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks Date Code: 2514 Americas - 859
  • 1 $3.2800
  • 50 $2.6800
  • 100 $2.2700
  • 500 $2.0200
  • 1,000 $1.8000
$1.8000 / $3.2800 Buy Now
Onlinecomponents.com Conn Shrouded Header (4 Sides) HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant 413 In Stock
  • 10 $3.0700
  • 100 $2.2600
  • 250 $2.2300
  • 500 $1.9700
  • 1,000 $1.7700
  • 2,500 $1.7600
  • 5,000 $1.7500
  • 7,500 $1.7400
$1.7400 / $3.0700 Buy Now
DISTI # 88119260
Verical Conn Shrouded Header (4 Sides) HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2514 Americas - 859
  • 4 $1.8000
$1.8000 Buy Now
DISTI # 51704630
Verical Conn Shrouded Header (4 Sides) HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 1915 Americas - 410
  • 20 $3.9910
  • 100 $2.9380
  • 250 $2.8990
  • 500 $2.5610
  • 1,000 $2.3010
$2.3010 / $3.9910 Buy Now
DISTI # TST10601GD
TTI Headers & Wire Housings RoHS: Compliant pbFree: Pb-Free Min Qty: 2 Package Multiple: 1 Container: Bulk Americas - 0
  • 2 $3.0500
  • 25 $2.5800
  • 50 $2.3000
  • 500 $1.9600
  • 1,000 $1.6300
  • 2,000 $1.4600
  • 5,000 $1.1700
$1.1700 / $3.0500 Buy Now
DISTI # TST10601GD
TTI Headers & Wire Housings RoHS: Compliant pbFree: Pb-Free Min Qty: 2 Package Multiple: 1 Container: Bulk Americas - 0
  • 2 $3.0500
  • 25 $2.5800
  • 50 $2.3000
  • 500 $1.9600
  • 1,000 $1.6300
  • 2,000 $1.4600
  • 5,000 $1.1700
$1.1700 / $3.0500 Buy Now
DISTI # 5cd92cdacd7c1c4c388902cd
Samtec Shrouded PCB Headers, 0.100" pitch RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 3 Days Container: Bulk 0
  • 1 $3.2800
  • 50 $2.6800
  • 100 $2.2700
  • 500 $2.0200
  • 1,000 $1.5900
  • 2,000 $1.4500
  • 5,000 $1.1600
  • 10,000 $0.8700
$0.8700 / $3.2800 Buy Now
DISTI # 000000000000162967
Sager Headers & Wire Housings Shrouded PCB Headers, 0.100 pitch Min Qty: 1 0
  • 1 $3.2800
  • 50 $2.6800
  • 100 $2.2700
  • 500 $2.0200
  • 1,000 $1.5900
  • 2,000 $1.4500
$1.4500 / $3.2800 Buy Now
DISTI # TST-106-01-G-D
Avnet Abacus (Alt: TST-106-01-G-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics Conn Shrouded Header (4 Sides) HDR 12 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk RoHS: Compliant 413 In Stock
  • 10 $3.0700
  • 100 $2.2600
  • 250 $2.2300
  • 500 $1.9700
  • 1,000 $1.7700
  • 2,500 $1.7600
  • 5,000 $1.7500
  • 7,500 $1.7400
$1.7400 / $3.0700 Buy Now

Part Details for TST-106-01-G-D

TST-106-01-G-D CAD Models

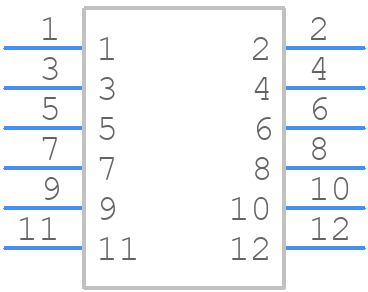

  • Part Symbol

    Part Symbol

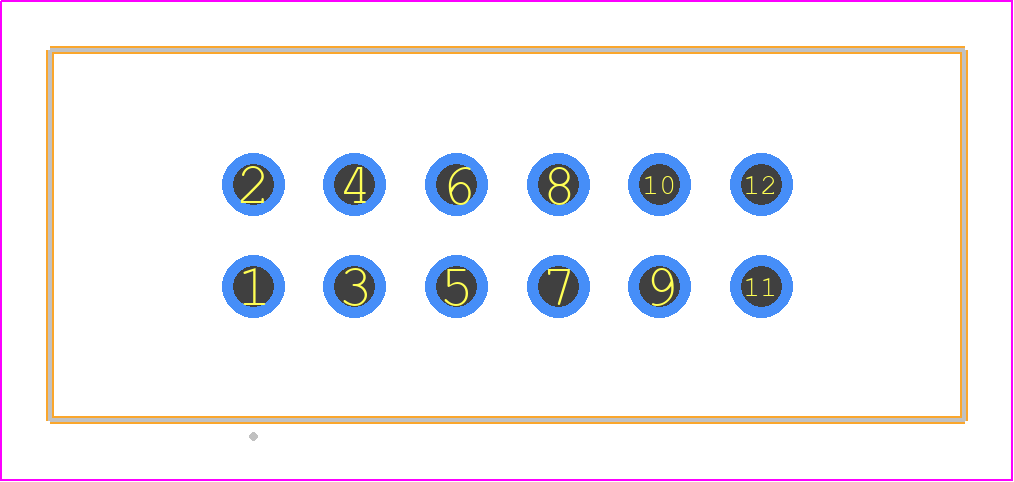

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TST-106-01-G-D Part Data Attributes

Parametric Data
TST-106-01-G-D Samtec Inc
Buy Now Datasheet
Compare Parts:
TST-106-01-G-D Samtec Inc Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
Factory Lead Time 2 Weeks, 5 Days
Samacsys Manufacturer SAMTEC
Body Breadth 0.365 inch
Body Depth 0.365 inch
Body Length 0.9 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (10) OVER NICKEL (50)
Contact Finish Termination GOLD OVER NICKEL
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Plating Thickness 10u inch
Polarization Key POLARIZATION NOTCH
Terminal Length 0.115 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 12

Alternate Parts for TST-106-01-G-D

This table gives cross-reference parts and alternative options found for TST-106-01-G-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TST-106-01-G-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TST-106-01-T-D Samtec Inc $1.5864 Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, TST-106-01-G-D vs TST-106-01-T-D
TST-106-01-S-D Samtec Inc $3.6615 Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, TST-106-01-G-D vs TST-106-01-S-D

TST-106-01-G-D Related Parts

TST-106-01-G-D Frequently Asked Questions (FAQ)

  • The recommended torque for the screws on the TST-106-01-G-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).

  • Yes, the TST-106-01-G-D connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application guidance.

  • The maximum operating temperature for the TST-106-01-G-D connector is 125°C (257°F).

  • Yes, the TST-106-01-G-D connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances.

  • The TST-106-01-G-D connector is not designed for use in humid or wet environments. If exposure to moisture is a concern, consider using a connector with a higher IP rating or applying a conformal coating to the connector.

Share by Email

Something went wrong!
Please enter a valid e-mail address
Email sent!
Recipient Email:
Add a recipient
Hello!

We are passing along some cool findings on Findchips sent to you from .

The data is for TST-106-01-G-D by Samtec Inc.
They’ve also added a data comparison to this page with by .

Click on the link below to check it out on Findchips.com.

Update Alert Settings for: TST-106-01-G-D by Samtec Inc

Select Manufacturer
Which Manufacturer of TST-106-01-G-D would you like to use for your alert(s)?
Inventory Alert
  • Please alert me when TST-106-01-G-D inventory levels are or equal to a quantity of from one of my selected distributors.
  • Also alert me for TST-106-01-G-D alternates
    An alert is already set for the following part(s): . Any existing alert will be overwritten and set as a new alert.
No pricing information is available at this time
Pricing Alert
  • Please alert me when the single part price for TST-106-01-G-D to
    $
    for at least parts from one of my selected distributors.
    Your Pricing Alert is set to expire on .
    Set this alert to expire in Update this alert to expire · Expired on
  • Also alert me for TST-106-01-G-D alternates
    An alert is already set for the following part(s): . Any existing alert will be overwritten and set as a new alert.

Your part alert has been saved!

Alerts are triggered based off of individual distributors that you choose. Select your distributor(s) below.

Your part alert has been saved!

Register
Password Guidelines

Is at least 8 characters in length

Must include at least 3 of the following:

One lower-case character (a-z)

One upper-case character (A-Z)

One numeric character (0-9)

One special character (!#$%^&*)

Alert is successfully saved for TST-106-01-G-D.
Looks like you've reached your alert limit!  Please delete some alerts or contact us if you need help.

Compare TST-106-01-G-D by Samtec Inc

Select a part to compare:
Part Number Manufacturer Description
No result found.
Something went wrong!
Or search for a different part:
