TSS-110-02-H-D by: Samtec Inc

Board Connector, 20 Contact(s), 2 Row(s), Male, Crimp Terminal

Part Details for TSS-110-02-H-D by Samtec Inc

Results Overview of TSS-110-02-H-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Healthcare

TSS-110-02-H-D Information

TSS-110-02-H-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for TSS-110-02-H-D

Part # Distributor Description Stock Price Buy
DISTI # 78P9909
Newark ".100" Shrouded Terminal Strip" Rohs Compliant: Yes |Samtec TSS-110-02-H-D RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $8.1600
  • 50 $7.0700
  • 100 $5.9800
  • 500 $4.2500
  • 1,000 $3.2300
$3.2300 / $8.1600 Buy Now
DISTI # 3937-TSS-110-02-H-D-ND
DigiKey CONN HEADER VERT 20POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 50
In Stock
  • 1 $13.6900
$13.6900 Buy Now
DISTI # TSS-110-02-H-D-ND
DigiKey CONN HEADER VERT 20POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk Temporarily Out of Stock
  • 1 $5.0200
$5.0200 Buy Now
DISTI # TSS-110-02-H-D
Avnet Americas - Bulk (Alt: TSS-110-02-H-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 2 Weeks, 5 Days Container: Bulk 1
  • 1 $4.9196
  • 10 $4.8945
  • 30 $3.8994
  • 50 $3.8793
  • 100 $3.8592
$3.8592 / $4.9196 Buy Now
DISTI # 200-TSS11002HD
Mouser Electronics Headers & Wire Housings .100" Shrouded Terminal Strip RoHS: Compliant 0
  • 1 $5.0200
  • 100 $4.0200
  • 500 $3.1600
  • 1,000 $2.8800
  • 2,500 $2.3100
$2.3100 / $5.0200 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 5 $5.7700
  • 50 $4.6900
  • 100 $4.4800
  • 250 $4.3500
  • 500 $3.2500
  • 1,000 $3.0400
  • 2,500 $2.4300
  • 5,000 $1.8300
$1.8300 / $5.7700 Buy Now
DISTI # 5cd92cbccd7c1c4c3888df13
Samtec .100" Shrouded Terminal Strip RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 2 Days Container: Bulk 0
  • 1 $5.0200
  • 25 $4.5400
  • 50 $4.2200
  • 100 $4.0200
  • 500 $3.1600
  • 1,000 $2.8800
  • 2,500 $2.3100
  • 5,000 $1.7400
$1.7400 / $5.0200 Buy Now
DISTI # 000000000002245289
Sager Headers & Wire Housings .100 Shrouded Terminal Strip Min Qty: 1 0
  • 1 $5.0200
  • 25 $4.5400
  • 50 $4.2200
  • 100 $4.0200
  • 500 $3.1600
  • 1,000 $2.8800
$2.8800 / $5.0200 Buy Now
Master Electronics   RoHS: Compliant 0
  • 5 $5.7700
  • 50 $4.6900
  • 100 $4.4800
  • 250 $4.3500
  • 500 $3.2500
  • 1,000 $3.0400
  • 2,500 $2.4300
  • 5,000 $1.8300
$1.8300 / $5.7700 Buy Now

Part Details for TSS-110-02-H-D

TSS-110-02-H-D CAD Models

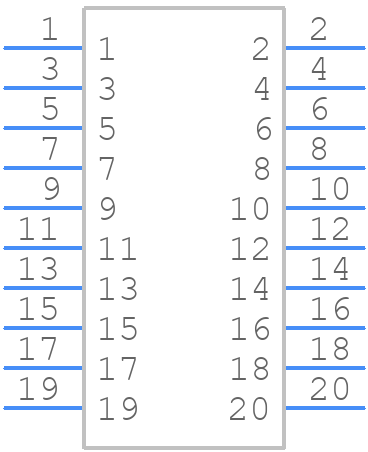

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TSS-110-02-H-D Part Data Attributes

Parametric Data
TSS-110-02-H-D Samtec Inc
Buy Now Datasheet
Compare Parts:
TSS-110-02-H-D Samtec Inc Board Connector, 20 Contact(s), 2 Row(s), Male, Crimp Terminal
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 2 Weeks, 5 Days
Samacsys Manufacturer SAMTEC
Body Breadth 0.365 inch
Body Depth 0.485 inch
Body Length 1.15 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD OVER NICKEL
Contact Finish Termination Gold (Au) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 1414VAC V
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED POLYESTER
JESD-609 Code e4
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 2.54 mm
Plating Thickness 30u inch
Polarization Key POLARIZATION NOTCH
Rated Current (Signal) 3 A
Reference Standard UL
Terminal Length 0.165 inch
Terminal Pitch 2.54 mm
Termination Type SOLDER
Total Number of Contacts 20
UL Flammability Code 94V-0
