TSM-110-01-T-DV-A-K-TR by: Samtec Inc

Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

Part Details for TSM-110-01-T-DV-A-K-TR by Samtec Inc

Results Overview of TSM-110-01-T-DV-A-K-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TSM-110-01-T-DV-A-K-TR Information

TSM-110-01-T-DV-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for TSM-110-01-T-DV-A-K-TR

Part # Distributor Description Stock Price Buy
DISTI # TSM-110-01-T-DV-A-K-TR
Avnet Americas Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST SMD T/R - Tape and Reel (Alt: TSM-110-01-T-DV-A-K-TR) RoHS: Compliant Min Qty: 125 Package Multiple: 125 Lead time: 111 Weeks, 0 Days Container: Reel 0
RFQ
DISTI # 000000000001681924
Sager Headers & Wire Housings 0
Buy Now
DISTI # TSM-110-01-T-DV-A-K-TR
Avnet Abacus Conn Unshrouded Header HDR 20 POS 254mm Solder ST SMD TR (Alt: TSM-110-01-T-DV-A-K-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for TSM-110-01-T-DV-A-K-TR

TSM-110-01-T-DV-A-K-TR CAD Models

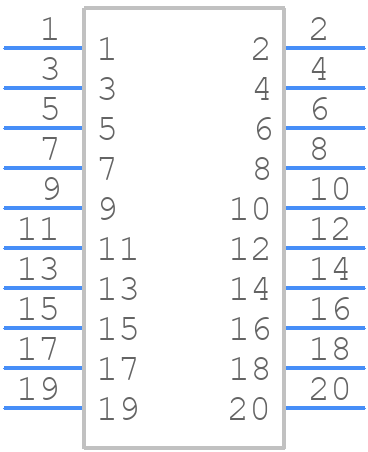

  • Part Symbol

    Part Symbol

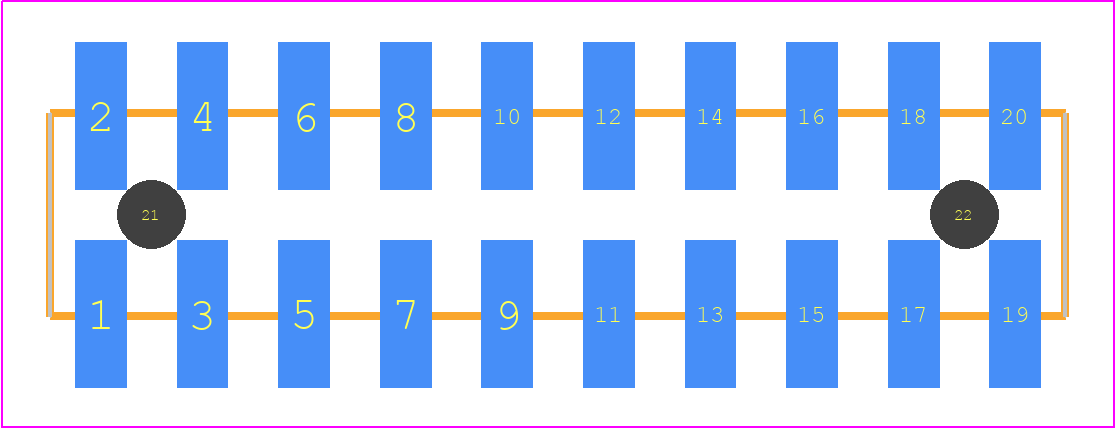

  • Footprint
