Connectors / Headers and Edge Type Connectors / TSM-105-01-T-DV-P
Datasheets
TSM-105-01-T-DV-P by: Samtec Inc

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT

Part Details for TSM-105-01-T-DV-P by Samtec Inc

Results Overview of TSM-105-01-T-DV-P by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TSM-105-01-T-DV-P Information

TSM-105-01-T-DV-P by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for TSM-105-01-T-DV-P

Part # Distributor Description Stock Price Buy
DISTI # 46P4240
Newark Header, 10 Contacts, 2 Rows, Surface Mount, 2.54 Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Contact Termination Type:Surface Mount, Product Range:Tsm Series Rohs Compliant: Yes |Samtec TSM-105-01-T-DV-P RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 87
  • 1 $1.2300
  • 10 $1.1300
  • 100 $1.0300
  • 250 $0.9250
  • 500 $0.8210
  • 1,000 $0.7180
  • 2,500 $0.6430
$0.6430 / $1.2300 Buy Now
DISTI # 3937-TSM-105-01-T-DV-P-ND
DigiKey CONN HEADER SMD 10POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 50
In Stock
  • 1 $4.2300
$4.2300 Buy Now
DISTI # SAM8881-ND
DigiKey CONN HEADER SMD 10POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Tube 13
In Stock
  • 1 $1.2700
  • 50 $1.0616
  • 100 $0.9060
  • 500 $0.7382
  • 1,000 $0.6240
$0.6240 / $1.2700 Buy Now
DISTI # 2266-TSM-105-01-T-DV-P-ND
DigiKey CONN HEADER SMD 10POS 2.54MM Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT Temporarily Out of Stock
Buy Now
DISTI # TSM-105-01-T-DV-P
Avnet Americas Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Tube - Rail/Tube (Alt: TSM-105-01-T-DV-P) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube 64 Factory Stock
  • 1 $1.2054
  • 10 $1.1018
  • 30 $0.8788
  • 50 $0.8743
  • 100 $0.8698
$0.8698 / $1.2054 Buy Now
DISTI # 200-TSM10501TDVP
Mouser Electronics Headers & Wire Housings .100" Surface Mount Terminal Strip RoHS: Compliant 350
  • 1 $1.2700
  • 90 $1.0600
  • 540 $0.7400
  • 1,035 $0.6100
  • 2,025 $0.5800
  • 5,040 $0.4600
  • 10,035 $0.3500
$0.3500 / $1.2700 Buy Now
Onlinecomponents.com Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube RoHS: Compliant 315 Partner Stock
46 Factory Stock
  • 25 $1.8400
  • 250 $1.0900
  • 500 $0.8200
  • 1,000 $0.6770
  • 2,500 $0.6630
  • 5,000 $0.6600
  • 7,500 $0.6570
  • 10,000 $0.6530
$0.6530 / $1.8400 Buy Now
DISTI # 68406128
Verical Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube RoHS: Compliant Min Qty: 79 Package Multiple: 1 Americas - 315
  • 79 $0.8000
$0.8000 Buy Now
DISTI # 85037249
Verical Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube RoHS: Compliant Min Qty: 8 Package Multiple: 1 Americas - 46
  • 8 $1.2700
  • 50 $1.0600
  • 100 $0.9100
  • 500 $0.7400
  • 1,000 $0.6100
  • 2,000 $0.5800
  • 5,000 $0.5057
$0.5057 / $1.2700 Buy Now
Bristol Electronics   97
RFQ
Quest Components HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.100 PITCH 212
  • 1 $0.7425
  • 33 $0.4950
  • 122 $0.3465
$0.3465 / $0.7425 Buy Now
DISTI # 000000000000063524
Sager Headers & Wire Housings .100 Surface Mount Terminal Strip Min Qty: 1 64
  • 1 $1.2700
  • 50 $1.0600
  • 100 $0.9100
  • 500 $0.7400
  • 1,000 $0.6100
  • 2,000 $0.5800
$0.5800 / $1.2700 Buy Now
DISTI # TSM-105-01-T-DV-P
Avnet Abacus Pin Header Vertical Pin BoardtoBoard 254 mm 2 Rows 10 Contacts Surface Mount TSM Series (Alt: TSM-105-01-T-DV-P) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube RoHS: Compliant 315 Partner Stock
46 Factory Stock
  • 25 $1.8400
  • 250 $1.0900
  • 500 $0.8200
  • 1,000 $0.6770
  • 2,500 $0.6630
  • 5,000 $0.6600
  • 7,500 $0.6570
  • 10,000 $0.6530
$0.6530 / $1.8400 Buy Now

Part Details for TSM-105-01-T-DV-P

TSM-105-01-T-DV-P CAD Models

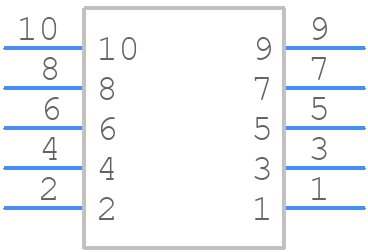

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TSM-105-01-T-DV-P Part Data Attributes

Parametric Data
TSM-105-01-T-DV-P Samtec Inc
Buy Now Datasheet
Compare Parts:
TSM-105-01-T-DV-P Samtec Inc Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 1 Week
Samacsys Manufacturer SAMTEC
Additional Feature E.L.P.
Body Breadth 0.2 inch
Body Length 0.5 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating MATTE TIN OVER NICKEL (50)
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Rated Current (Signal) 7 A
Reference Standard UL
Terminal Pitch 2.54 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 10

Alternate Parts for TSM-105-01-T-DV-P

This table gives cross-reference parts and alternative options found for TSM-105-01-T-DV-P. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSM-105-01-T-DV-P, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
0015912100 Molex $0.6729 Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LOW HALOGEN, ROHS AND REACH COMPLIANT TSM-105-01-T-DV-P vs 0015912100
5-147279-2 TE Connectivity $3.5174 (5-147279-2) 10 MODII HDR DR SFMT B/A T&R LF TSM-105-01-T-DV-P vs 5-147279-2
015-91-2100 Molex Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, TSM-105-01-T-DV-P vs 015-91-2100
0015916100 Molex Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LOW HALOGEN, ROHS AND REACH COMPLIANT TSM-105-01-T-DV-P vs 0015916100
TSM-105-01-H-DV-P-TR Samtec Inc Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, TSM-105-01-T-DV-P vs TSM-105-01-H-DV-P-TR
0015916102 Molex Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LOW HALOGEN, ROHS AND REACH COMPLIANT TSM-105-01-T-DV-P vs 0015916102
15-91-3100 Molex Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle, LEAD FREE TSM-105-01-T-DV-P vs 15-91-3100
TSM-105-01-SM-DV-M Samtec Inc Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, TSM-105-01-T-DV-P vs TSM-105-01-SM-DV-M
TSM-105-01-G-DV-P-TR Samtec Inc Check for Price Board Connector, TSM-105-01-T-DV-P vs TSM-105-01-G-DV-P-TR
TSM-105-01-TM-DV-P-TR Samtec Inc Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, TSM-105-01-T-DV-P vs TSM-105-01-TM-DV-P-TR
Part Number Manufacturer Composite Price Description Compare
76385-305LF Amphenol Communications Solutions $0.3408 Dubox®, Crimp to Wire connector, 2.54mm (0.100in), Shrouded Header, Vertical, Through Hole, Double Row, 10 positions TSM-105-01-T-DV-P vs 76385-305LF
90130-1210 Molex $1.0654 Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE TSM-105-01-T-DV-P vs 90130-1210
68832-005 Amphenol Communications Solutions Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator, Receptacle, TSM-105-01-T-DV-P vs 68832-005
65461-042LF Amphenol FCi Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, LEAD FREE TSM-105-01-T-DV-P vs 65461-042LF
5-146308-5 TE Connectivity Check for Price 10 MODII HDR DRRA B/A .100 TSM-105-01-T-DV-P vs 5-146308-5
95278-809-10LF Amphenol Communications Solutions Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, TSM-105-01-T-DV-P vs 95278-809-10LF
95278-410A10LF Amphenol FCi Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle TSM-105-01-T-DV-P vs 95278-410A10LF
95278-107-10LF Amphenol FCi Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT TSM-105-01-T-DV-P vs 95278-107-10LF
95278-401B10 Amphenol FCi Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle TSM-105-01-T-DV-P vs 95278-401B10
69155-310 Amphenol Communications Solutions Check for Price Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Blue Insulator, Receptacle, TSM-105-01-T-DV-P vs 69155-310

TSM-105-01-T-DV-P Related Parts

TSM-105-01-T-DV-P Frequently Asked Questions (FAQ)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow the recommended torque to ensure secure mating and prevent damage to the connector.

  • Yes, the TSM-105-01-T-DV-P is designed to withstand high-vibration environments. Samtec's Tiger Eye™ contact system and screw-lock design ensure reliable connections even in harsh environments.

  • The operating temperature range for the TSM-105-01-T-DV-P is -55°C to 125°C. However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.

  • Yes, the TSM-105-01-T-DV-P is compatible with lead-free soldering processes. Samtec's connectors are designed to meet the requirements of lead-free soldering, ensuring reliable connections in modern electronics.

  • The TSM-105-01-T-DV-P has a mating cycle life of 500 cycles minimum. This ensures reliable connections even in applications where frequent mating and unmating occur.
