Part Symbol
-

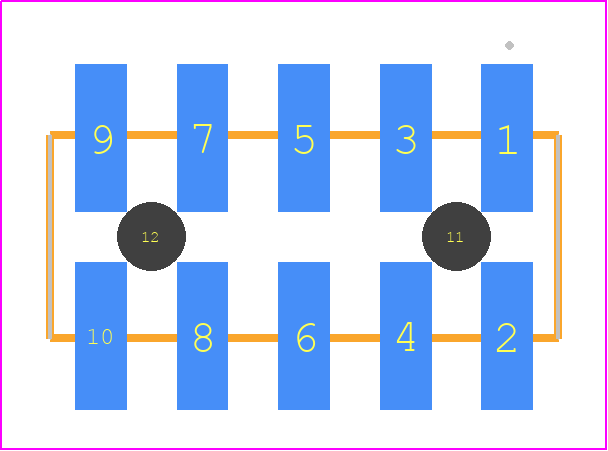

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSM-105-01-T-DV-A by Samtec Inc
Results Overview of TSM-105-01-T-DV-A by Samtec Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TSM-105-01-T-DV-A Information
TSM-105-01-T-DV-A by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for TSM-105-01-T-DV-A
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
77P7428
|
Newark | Header, 10 Contacts, 2 Rows, Surface Mount, 2.54 Mm, Connector Systems:Board-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:10Contacts, Contact Termination Type:Surface Mount, Product Range:Tsm Series Rohs Compliant: Yes |Samtec TSM-105-01-T-DV-A RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 5021 |
|
$0.6390 / $1.3300 | Buy Now |
|
DISTI #
TSM-105-01-T-DV-A
|
Avnet Americas | Pin Header, Vertical Pin, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Surface Mount, TSM Series - Rail/Tube (Alt: TSM-105-01-T-DV-A) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 1 Weeks, 0 Days Container: Tube | 4681 Factory Stock |
|
$0.7536 / $1.0878 | Buy Now |
|
DISTI #
200-TSM10501TDVA
|
Mouser Electronics | Headers & Wire Housings .100" Surface Mount Terminal Strip RoHS: Compliant | 5167 |
|
$0.3900 / $1.3600 | Buy Now |
|
DISTI #
E02:0323_01318918
|
Arrow Electronics | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2131 | Europe - 60 |
|
$0.7916 / $1.5409 | Buy Now |
|
|
Onlinecomponents.com | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD Tube RoHS: Compliant |
645 Partner Stock |
|
$0.6170 / $1.1900 | Buy Now |
|
DISTI #
85030700
|
Verical | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube Min Qty: 8 Package Multiple: 1 | Americas - 4681 |
|
$0.5402 / $1.3600 | Buy Now |
|
DISTI #
88115932
|
Verical | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube Min Qty: 74 Package Multiple: 1 | Americas - 645 |
|
$0.8500 | Buy Now |
|
DISTI #
58306570
|
Verical | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Top Entry SMD Tube Min Qty: 8 Package Multiple: 1 Date Code: 2131 | Americas - 56 |
|
$1.2717 | Buy Now |
|
|
Bristol Electronics | 39 |
|
RFQ | ||
|
DISTI #
5cd92c81cd7c1c4c38889a5b
|
Samtec | .100" Surface Mount Terminal Strip RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube | 4681 |
|
$0.3900 / $1.3600 | Buy Now |
Part Details for TSM-105-01-T-DV-A
TSM-105-01-T-DV-A CAD Models
TSM-105-01-T-DV-A Part Data Attributes
|
|
TSM-105-01-T-DV-A
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
TSM-105-01-T-DV-A
Samtec Inc
Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 1 Week | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | E.L.P. | |
| Body Breadth | 0.2 inch | |
| Body Length | 0.5 inch | |
| Body/Shell Style | RECEPTACLE | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | MATTE TIN OVER NICKEL (50) | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | PHOSPHOR BRONZE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| Rated Current (Signal) | 7 A | |
| Reference Standard | UL | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 10 |
Alternate Parts for TSM-105-01-T-DV-A
This table gives cross-reference parts and alternative options found for TSM-105-01-T-DV-A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TSM-105-01-T-DV-A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TSM-105-01-LM-DV-A | Samtec Inc | $1.4124 | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, | TSM-105-01-T-DV-A vs TSM-105-01-LM-DV-A |
| TSM-105-01-SS-DV-A | Samtec Inc | $1.8383 | Board Connector | TSM-105-01-T-DV-A vs TSM-105-01-SS-DV-A |
| TSM-105-01-G-DV-A | Samtec Inc | Check for Price | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, | TSM-105-01-T-DV-A vs TSM-105-01-G-DV-A |
| TSM-105-01-T-DV-A-TR | Samtec Inc | Check for Price | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT | TSM-105-01-T-DV-A vs TSM-105-01-T-DV-A-TR |
| TSM-105-01-LM-DV-A-TR | Samtec Inc | Check for Price | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, | TSM-105-01-T-DV-A vs TSM-105-01-LM-DV-A-TR |
| TSM-105-01-F-DV-A-TR | Samtec Inc | Check for Price | Board Connector, | TSM-105-01-T-DV-A vs TSM-105-01-F-DV-A-TR |
| TSM-105-01-H-DV-A | Samtec Inc | Check for Price | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, | TSM-105-01-T-DV-A vs TSM-105-01-H-DV-A |
| TSM-105-01-L-DV-A-TR | Samtec Inc | Check for Price | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT | TSM-105-01-T-DV-A vs TSM-105-01-L-DV-A-TR |
| TSM-105-01-S-DV-A-TR | Samtec Inc | Check for Price | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, ROHS COMPLIANT | TSM-105-01-T-DV-A vs TSM-105-01-S-DV-A-TR |
| TSM-105-01-SM-DV-A-TR | Samtec Inc | Check for Price | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, | TSM-105-01-T-DV-A vs TSM-105-01-SM-DV-A-TR |
TSM-105-01-T-DV-A Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
-
Yes, the TSM-105-01-T-DV-A is designed to withstand vibration and shock according to IEC 61373 Category II. However, it's recommended to consult with Samtec's technical support for specific application requirements.
-
The operating temperature range for the TSM-105-01-T-DV-A is -55°C to +125°C, but it's recommended to consult the datasheet for specific temperature derating information.
-
Yes, the TSM-105-01-T-DV-A is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
-
The mating cycle life of the TSM-105-01-T-DV-A is 500 cycles minimum, but it's recommended to consult with Samtec's technical support for specific application requirements.
