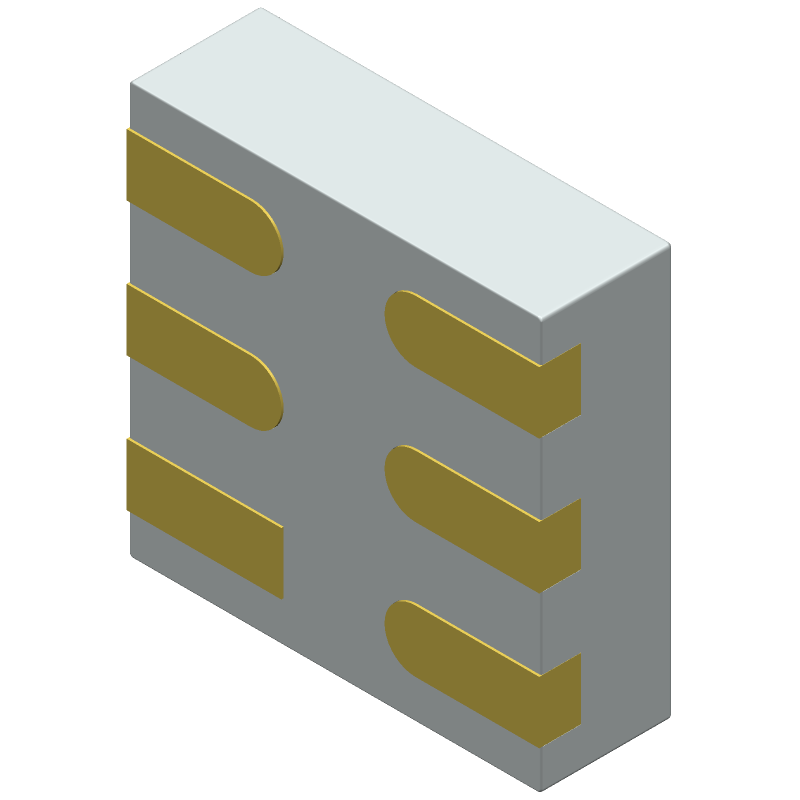

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSL25723FN by ams OSRAM Group
Results Overview of TSL25723FN by ams OSRAM Group
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Internet of Things (IoT)
Smart Cities
TSL25723FN Information
TSL25723FN by ams OSRAM Group is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TSL25723FN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
Q65114A3318
|
Avnet Americas | - Tape and Reel (Alt: Q65114A3318) RoHS: Not Compliant Min Qty: 10500 Package Multiple: 3500 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.8750 / $0.9870 | Buy Now |
|
DISTI #
985-TSL25723FN
|
Mouser Electronics | Light to Digital Converters ALS, I2C Vbus= 1.8V Interface RoHS: Compliant | 5628 |
|
$1.1500 / $1.9100 | Buy Now |
|
DISTI #
TSL25723FN
|
TTI | Light to Digital Converters ALS, I2C Vbus= 1.8V Interface RoHS: Compliant pbFree: Pb-Free Min Qty: 3500 Package Multiple: 3500 Container: Reel |
Americas - 3500 In Stock |
|
$0.9700 / $0.9900 | Buy Now |
|
DISTI #
Q65114A3318
|
EBV Elektronik | (Alt: Q65114A3318) RoHS: Compliant Min Qty: 3500 Package Multiple: 3500 Lead time: 13 Weeks, 0 Days | EBV - 3500 |
|
Buy Now | |
|
DISTI #
HLMP-2800
|
EBV Elektronik | (Alt: HLMP-2800) RoHS: Compliant Min Qty: 320 Package Multiple: 320 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TSL25723FN
TSL25723FN CAD Models
TSL25723FN Part Data Attributes
|
|
TSL25723FN
ams OSRAM Group
Buy Now
Datasheet
|
Compare Parts:
TSL25723FN
ams OSRAM Group
Analog Circuit,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMS-OSRAM AG | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | ams OSRAM | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 3 | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
TSL25723FN Frequently Asked Questions (FAQ)
-
A good PCB layout practice is to keep the sensor away from other components, avoid routing traces under the sensor, and use a ground plane to reduce noise. Ams OSRAM provides a recommended PCB layout in their application note AN001.
-
Use a low-pass filter, such as a 100nF capacitor, between the VCC pin and GND to reduce noise. Also, keep the sensor away from high-frequency components and use a ground plane to shield the sensor from electromagnetic interference.
-
Ams OSRAM recommends calibrating the sensor in a dark room with a known light source. Measure the output voltage at different light levels and create a lookup table or use a calibration algorithm to convert the output voltage to lux values.
-
Use the sensitivity values provided in the datasheet to convert the output voltage to lux values. For example, the sensitivity at 200 lux is 0.034 mV/lux, so if the output voltage is 1.7V, the lux value would be approximately 500 lux.
-
The TSL25723FN can operate from -40°C to 85°C, but the accuracy of the light measurements may degrade at extreme temperatures. Ams OSRAM recommends operating the sensor between 0°C to 60°C for optimal performance.
