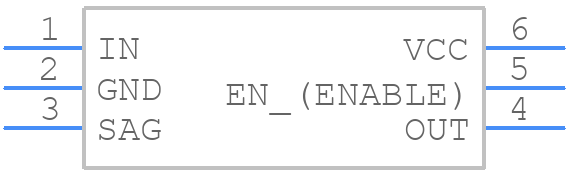

Part Symbol
-
Footprint
-

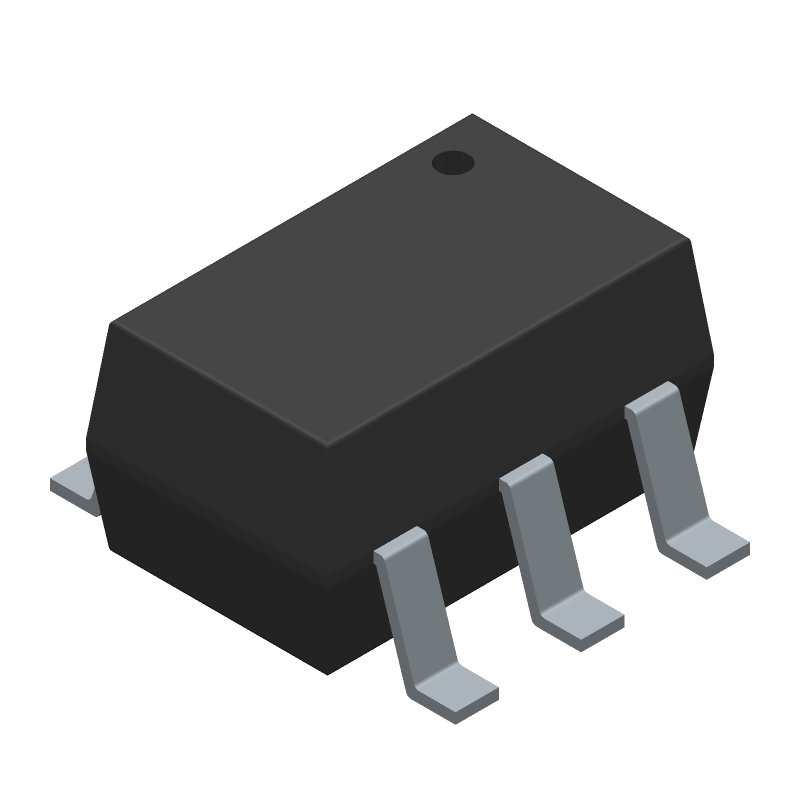

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TSH122ICT by STMicroelectronics
Results Overview of TSH122ICT by STMicroelectronics
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
Price & Stock for TSH122ICT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2762667
|
Farnell | VIDEO BUFFER/FILTER, 9.5MHZ, SC-70-6 RoHS: Compliant Min Qty: 1 Lead time: 14 Weeks, 1 Days Container: Cut Tape | 856 |
|
$0.6190 / $1.2728 | Buy Now |
|
DISTI #
2762667RL
|
Farnell | VIDEO BUFFER/FILTER, 9.5MHZ, SC-70-6 RoHS: Compliant Min Qty: 100 Lead time: 14 Weeks, 1 Days Container: Reel | 856 |
|
$0.6190 / $0.7366 | Buy Now |
|
DISTI #
497-8332-1-ND
|
DigiKey | IC AMP BUFFER SC70-6 Min Qty: 1 Lead time: 24 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5135 In Stock |
|
$0.5300 / $1.1600 | Buy Now |
|
DISTI #
TSH122ICT
|
Avnet Americas | Video Amp Single 5V 6-Pin SC-70 T/R - Tape and Reel (Alt: TSH122ICT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.2706 / $0.2823 | Buy Now |
|
DISTI #
511-TSH122ICT
|
Mouser Electronics | Video Amplifiers ULTRA LOW POWER VID BUFFER/FILTER P DOWN RoHS: Compliant | 4799 |
|
$0.5340 / $1.1600 | Buy Now |
|
|
STMicroelectronics | Ultra low power video buffer/filter with power-down RoHS: Compliant Min Qty: 1 | 4779 |
|
$0.5900 / $1.1400 | Buy Now |
|
DISTI #
TSH122ICT
|
TME | IC: video amplifier, video buffer, Ch: 1, SC70-6, 2.25÷5VDC Min Qty: 1 | 0 |
|
$0.5610 / $1.2760 | RFQ |
|
DISTI #
TSH122ICT
|
IBS Electronics | TSH122 CUT TAPE (CT) E3 DUAL AUDIO VIDEO AMPLIFIER CIRCUIT 85C 6DB 2MM 2MA Min Qty: 6000 Package Multiple: 1 | 0 |
|
$0.3900 / $0.3965 | Buy Now |
|
DISTI #
TSH122ICT
|
Avnet Silica | Video Amp Single 5V 6Pin SC70 TR (Alt: TSH122ICT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 17 Weeks, 0 Days | Silica - 6000 |
|
Buy Now | |
|
DISTI #
TSH122ICT
|
EBV Elektronik | Video Amp Single 5V 6Pin SC70 TR (Alt: TSH122ICT) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 25 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TSH122ICT
TSH122ICT CAD Models
TSH122ICT Part Data Attributes
|
|
TSH122ICT
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TSH122ICT
STMicroelectronics
Ultra low power video buffer/filter with power-down
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | ROHS COMPLIANT, SC-70, 6 PIN, | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Bandwidth-Nom | 9500 kHz | |
| Consumer IC Type | VIDEO AMPLIFIER | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP6,.08 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Supply Current-Max | 2.4 mA | |
| Supply Voltage-Max (Vsup) | 5 V | |
| Supply Voltage-Min (Vsup) | 2.25 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 1.25 mm |
TSH122ICT Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the TSH122ICT is 2.7V to 5.5V.
-
To properly power down the TSH122ICT, ensure that the EN pin is driven low and the VCC pin is decoupled from the power supply. Additionally, ensure that all input pins are at a valid logic level.
-
The maximum allowable power dissipation for the TSH122ICT is 500mW.
-
To handle thermal management, ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink if necessary. The maximum junction temperature is 150°C.
-
For optimal performance, keep the layout and routing as symmetrical as possible, and minimize the length of the input and output traces. Use a solid ground plane and decoupling capacitors to reduce noise and ensure signal integrity.
