TSC-124D3H,000 Information
TSC-124D3H,000 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for TSC-124D3H,000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TSC-124D3H000-ND
|
DigiKey | RELAY TELECOM SPDT 1A 24V Min Qty: 1 Lead time: 15 Weeks Container: Tube |
1260 In Stock |
|
$3.5840 / $5.0700 | Buy Now |
|
DISTI #
5-1440007-3
|
Avnet Americas | Electromechanical Relay SPDT 1A 24VDC 1.92KOhm Through Hole - Bag (Alt: 5-1440007-3) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Bag | 0 |
|
$2.0352 / $3.1309 | Buy Now |
|
DISTI #
677-TSC-124D3H
|
Mouser Electronics | Low Signal Relays - PCB SPDT 1A 24DC STD SLD RoHS: Compliant | 691 |
|
$3.2900 / $4.3300 | Buy Now |
|
|
Onlinecomponents.com | Miniature, Sealed PC Board Relay RoHS: Compliant |
2535 In Stock |
|
$3.2360 / $3.8880 | Buy Now |
|
DISTI #
51675032
|
Verical | Signal Relay 24VDC 1A SPDT(12.3x7.4x9.9)mm THT RoHS: Compliant Min Qty: 50 Package Multiple: 50 Date Code: 1119 | Americas - 2500 |
|
$3.8471 / $4.5765 | Buy Now |
Part Details for TSC-124D3H,000

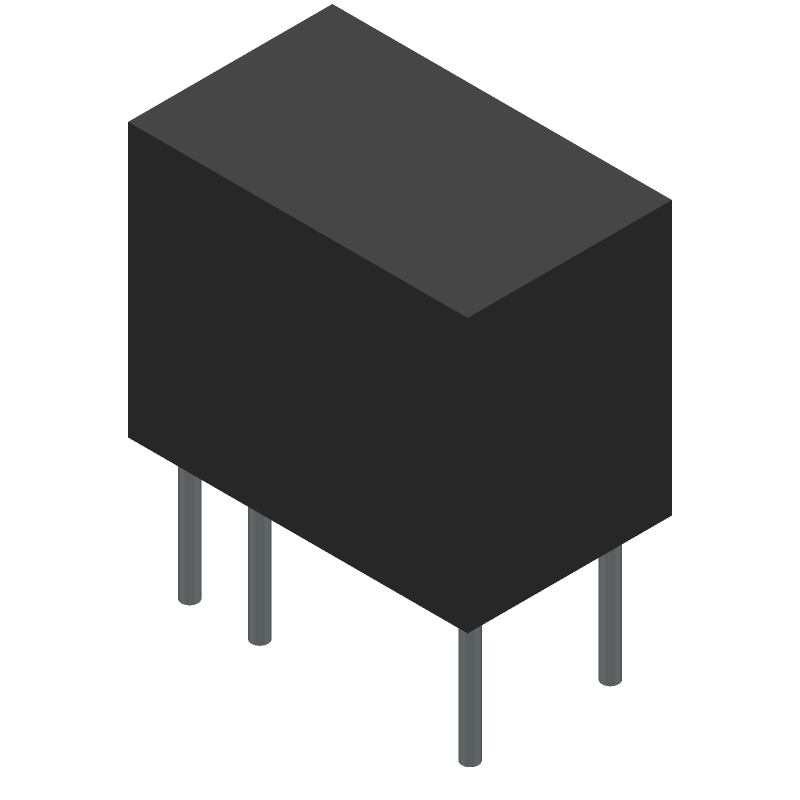

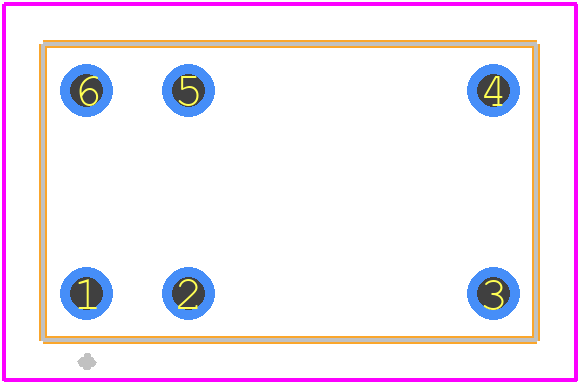

TSC-124D3H,000 CAD Models
TSC-124D3H,000 Part Data Attributes
|
|
TSC-124D3H,000
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
TSC-124D3H,000
TE Connectivity
Power/Signal Relay, 1 Form C, SPDT, Momentary, 0.013A (Coil), 12VDC (Coil), 300mW (Coil), 1A (Contact), 24VDC (Contact), AC/DC Input, AC/DC Output, Panel Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Body Breadth | 7.5 mm | |
| Body Height | 9.9 mm | |
| Body Length or Diameter | 12.5 mm | |
| Coil Current(DC)-Max | 0.013 A | |
| Coil Power | 300 mW | |
| Coil Resistance | 1920 Ω | |
| Coil Voltage(DC)-Max | 12 V | |
| Coil/Input Supply Type | AC/DC | |
| Contact Current(AC)-Max | 1 A | |
| Contact Current(DC)-Max | 1 A | |
| Contact Voltage(AC)-Max | 120 V | |
| Contact Voltage(DC)-Max | 24 V | |
| Contact/Output Supply Type | AC/DC | |
| Dielectric Strength Between Coil and Contacts | 1000 Vrms | |
| Dielectric Strength Between Open Contacts | 400 Vrms | |
| End Contact Material | NICKEL TITANIUM ALLOY | |
| Insulation Resistance | 1000000000000 Ω | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 80 °C | |
| Operating Temperature-Min | -30 °C | |
| Packing Method | BOX; TUBE | |
| Reference Standard | CSA; UL | |
| Relay Action | MOMENTARY | |
| Relay Form | 1 FORM C | |
| Relay Function | SPDT | |
| Relay Type | POWER/SIGNAL RELAY | |
| Surface Mount | NO | |
| Termination Type | SOLDER/QUICK CONNECT | |
| Weight | 3 g |
